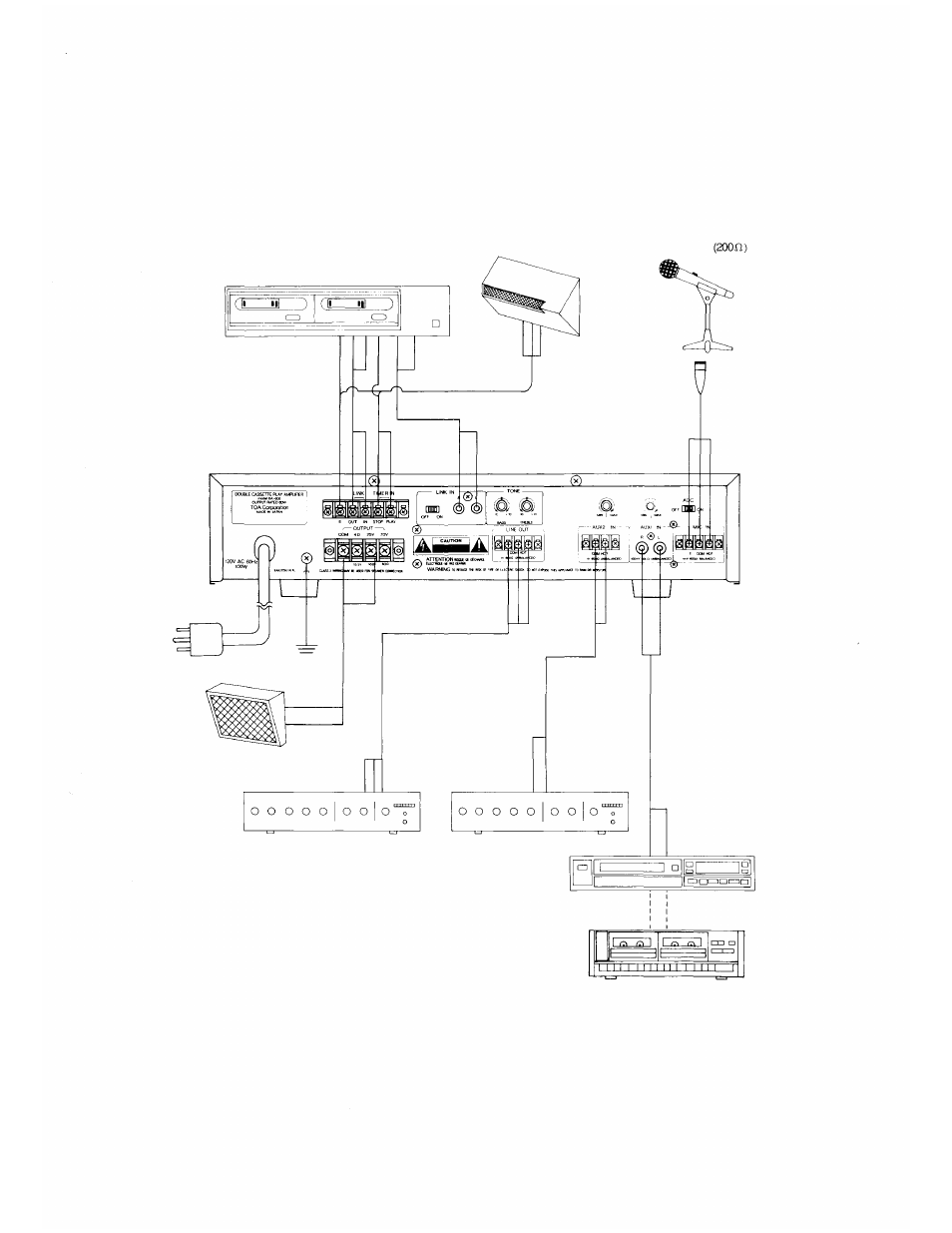

4.2. BA-806 Connection Examples
[Note]: Be sure to plug the power cord into the 120VAC wall outlet.
If the power voltage differs, the equipment may not work properly or fires or electrical shocks may
result.
BA-800(for expansion)
MICROPHONE
PROGRAM TIMER
BA-806
To amplifier line input
120VAC, 60Hz GROUND
SPEAKER
AMPLIFIER AMPLIFIER
To amplifier or
mixer line output
CD PLAYER or To tape
recorder playback output
CD PLAYER
CASSETTE DECK
