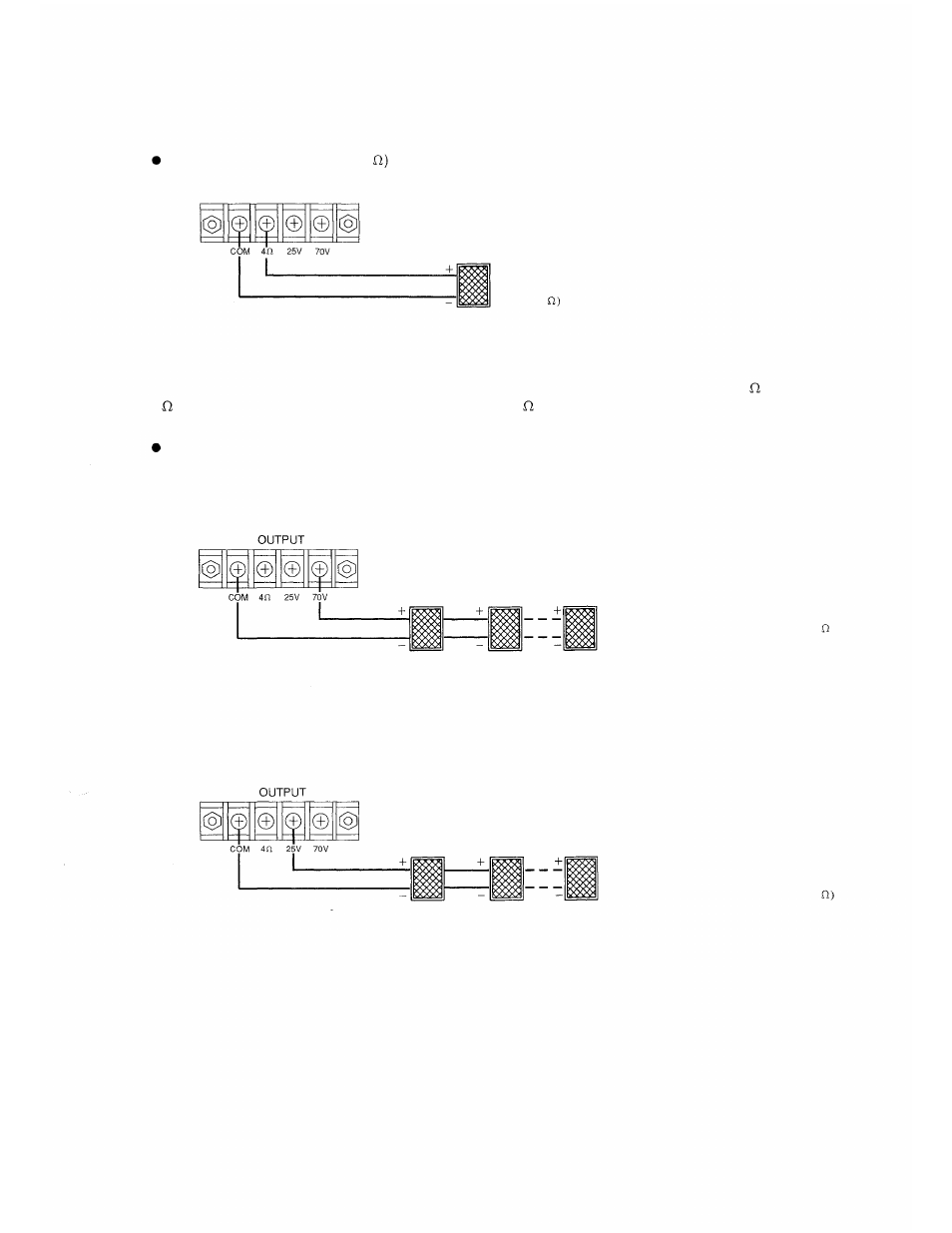

4.4. Speaker Connections [BA-806]
Low-impedance speakers (4 to 16
OUTPUT
When connecting two or more speakers, make sure that the total speaker impedance is greater than 4 .. (If two
8 speakers are connected in parallel, the total impedance is 4 ) .
High-impedance speakers have to be connected to the 70V or 25V terminal.
1. Connection to the 70V terminal
Low impedance speakers
Parallel connection
(Total impedance has to be greater than 83
or total wattage less than 60W.)
Parallel connection
(Total impedance has to be greater than 10
2. Connection to the 25V terminal
(4 to 16
* Be sure to replace the speaker output terminal cover after speaker connection completion.
