Adjustment Band Angle Indicators
The adjustment band of the 835S and 855S have markers at predetermined arcs. By aligning the adjustment band indicators to the
turret arrow, you can set the sprinkler arc to 90°, 180°, 270° or 360°.
Trajectory Adjustment Procedure ___________________________________________________
The 835S and 855S sprinkler models are equipped with the Trujectory TM nozzle spray angle adjustment feature. The trajectory adjusts
from the top of the sprinkler enabling fine-tuning from 7˚–30˚ to compensate for windy conditions, spraying under low-hanging
obstructions, up bunker faces and along natural habitats.
To adjust the nozzle spray trajectory angle, use a 5/16" socket (Figure 9). Turn the trajectory adjustment clockwise to
decrease (Figure 10) or counter-clockwise to increase (Figure 11).

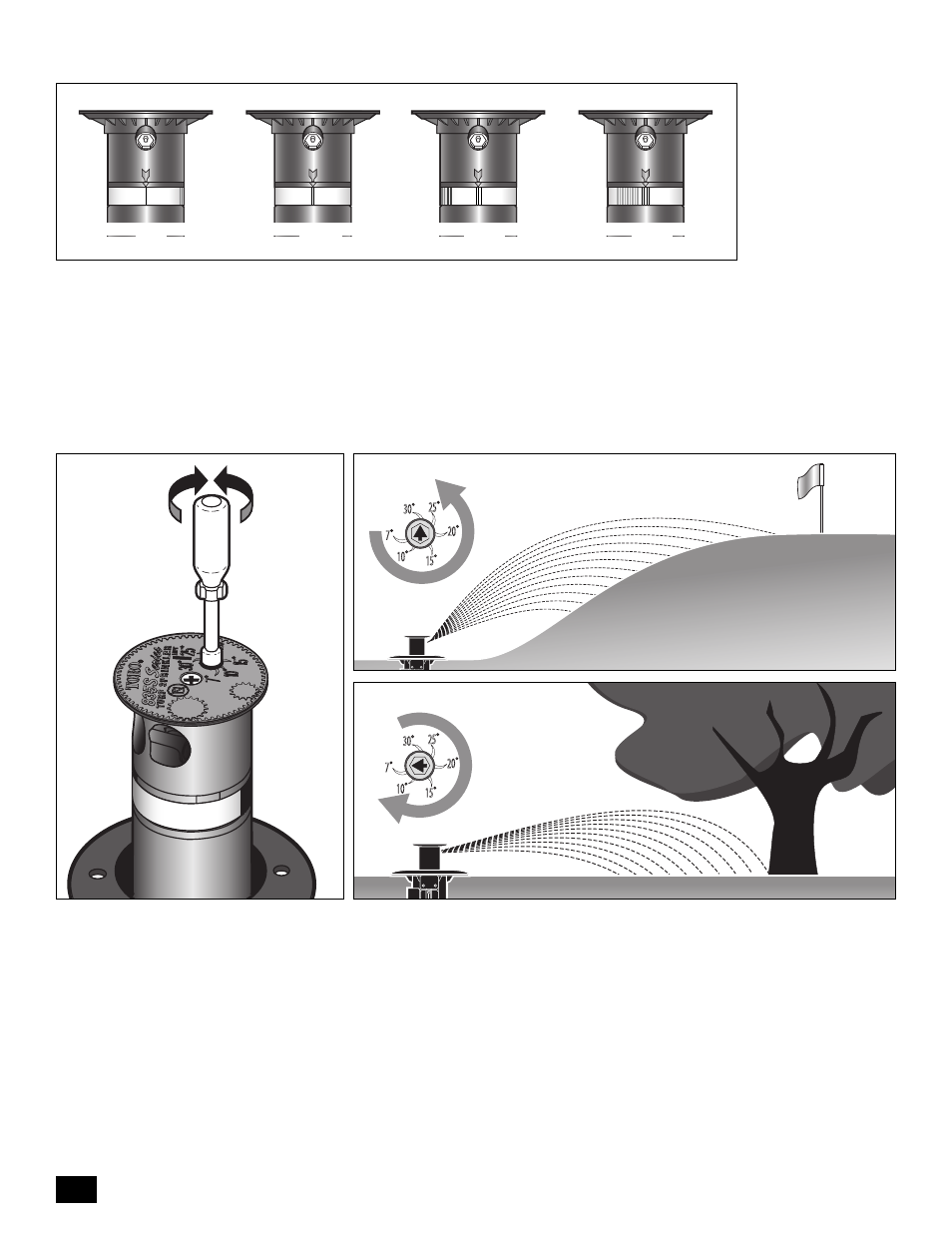

Figure 8
90° 180° 270° 360°
Figure 9 Figure 10
Figure 11
Increase
Trajection Decrease
Trajection
