6 – Diagrams
(continued)

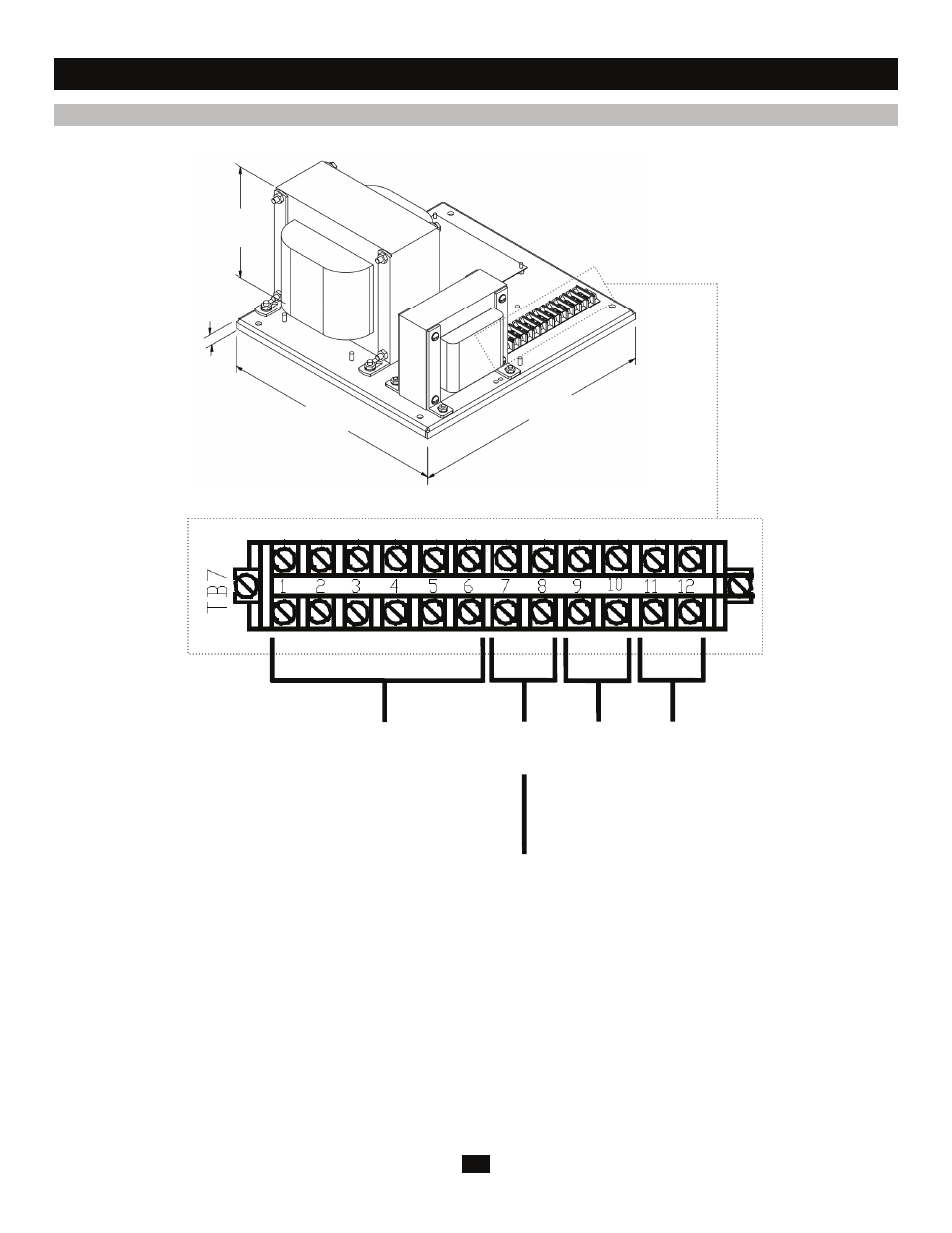

6-5 Integrated Battery Charger (Select Models)
Notes:
• All dimensions are inches.
• AC input is selectable 120/208/240 VAC, 60 Hz.
• Constant voltage output.
• Electronic current limiting and high voltage shutdown.
• AC and DC fusing. Included AC fusing is suitable for 120 VAC input.
• Temperature compensation with remote battery temperature sensor.
• Auxiliary output circuit for “Charger OK” indicator.
6.25
MAX
0.5
12.5
13.5
Terminal Block Detail
Input Voltage Selection
For 120 VAC Jumper:
2 & 3, 3 & 4, 5 & 6
For 208 VAC Jumper:
1 & 2, 4 & 5
For 240 VAC Jumper:
2 & 3, 4 & 5
AC
Input
L N
120
VAC
Output
- +
Output
Warning: Do not connect the battery charger
AC input to the UPS system output. The battery
charger requires a separate AC supply circuit.
