6 – Diagrams
(continued)

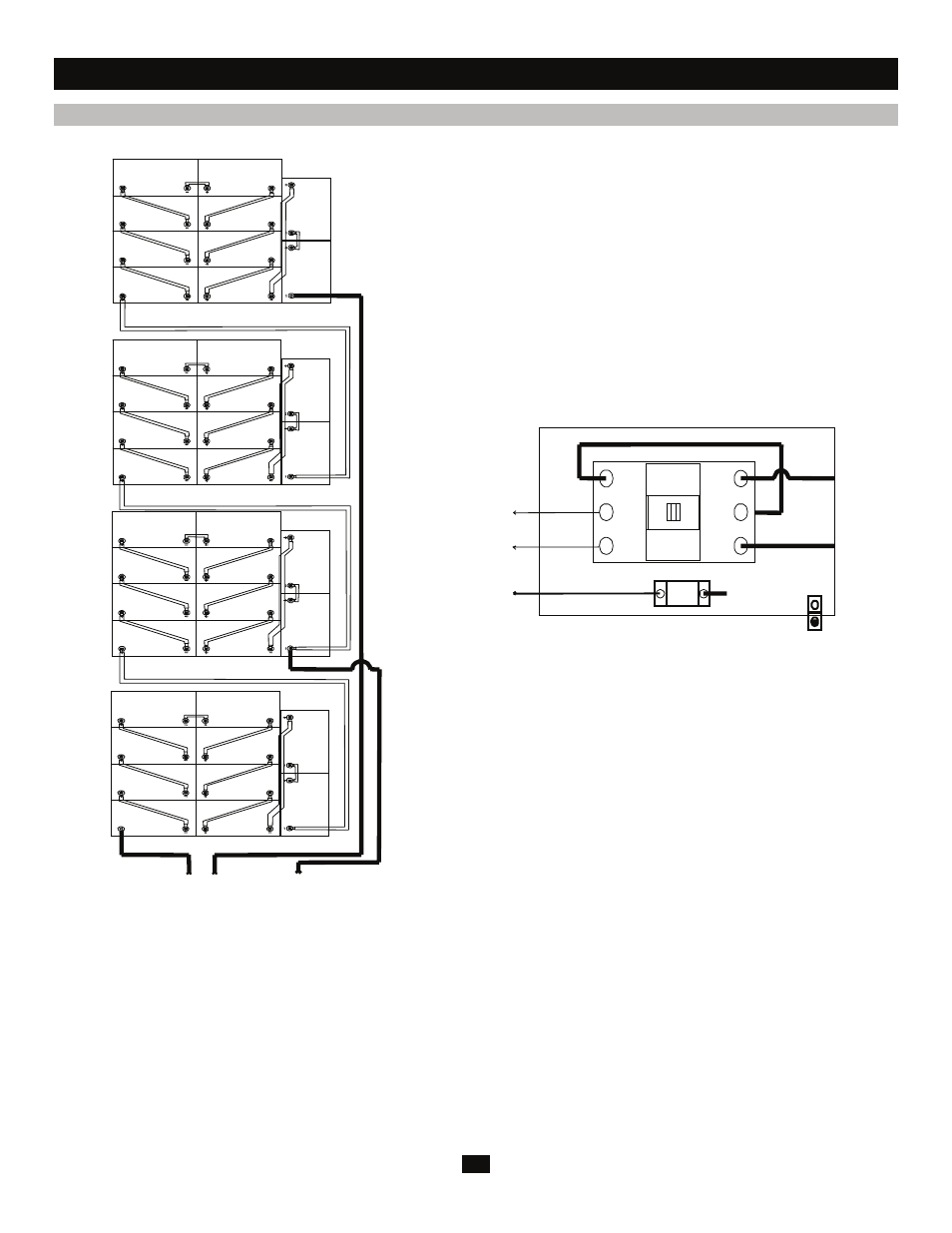

6-4 Battery and Breaker Diagrams (+/- 240 VDC)
Notes:
• All internal wiring is UL-listed, MTW, 125C Hi-Flex cable.
• Terminal block is UL-recognized and rated for 600 VDC.
• Breaker is UL-listed and rated for 250 A, 600 VDC, 25 KAIC.
• Cabinets with breakers are shipped with the breaker in the off/open position.
• Battery arrangements shown are typical but may vary depending on cabinet and battery type.
Shelf 1 (Bottom)
To Fuse or Breaker
Termination
Shelf 2
Shelf 3
Shelf 4 (Top)
To Center Tap
Termination
To UPS
Positive
To UPS
Negative
UL-Listed Breaker
Battery
Positive
Battery
Negative
From Battery
Center Tap
To UPS
Center Tap
