6 – diagrams, 3 battery and breaker diagrams (240 vdc) – Tripp Lite Extended-Run 3-Phase Battery Cabinet User Manual
Page 12
[
12
]
6 – Diagrams
(continued)

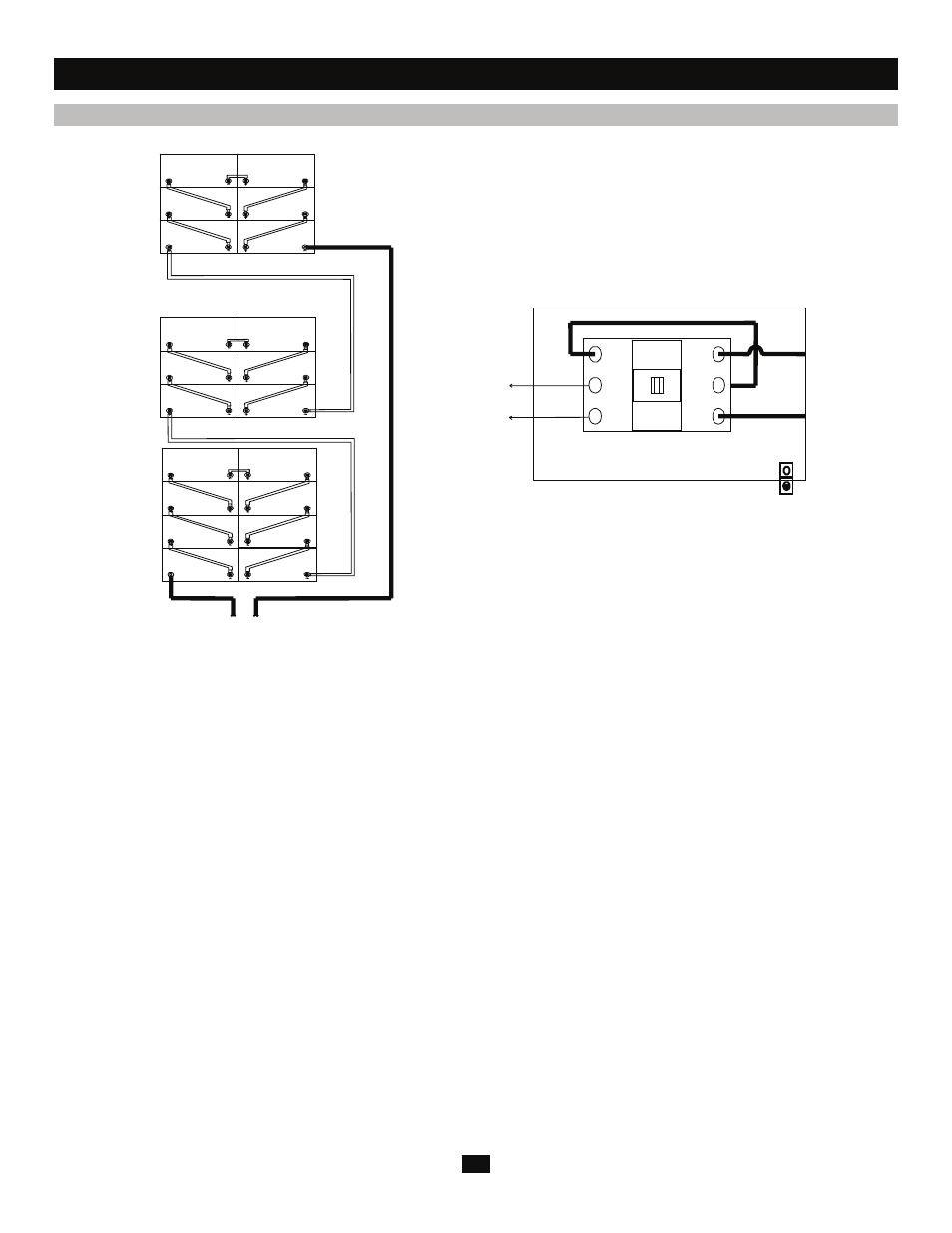

6-3 Battery and Breaker Diagrams (240 VDC)
Notes:
• All internal wiring is UL-listed, MTW, 125C Hi-Flex cable.
• Terminal block is UL-recognized and rated for 600 VDC.
• Breaker is UL-listed and rated for 150 A, 600 VDC, 25 KAIC.
• Cabinets with breakers are shipped with the breaker in the off/open position.
• Battery arrangements shown are typical but may vary depending on cabinet and battery type.
Shelf 2
Shelf 3
Shelf 1 (Bottom)
To Fuse or Breaker
Termination
To UPS
Positive
To UPS
Negative
UL-Listed
Breaker
Battery
Positive
Battery
Negative
