Connecting a cable converter box

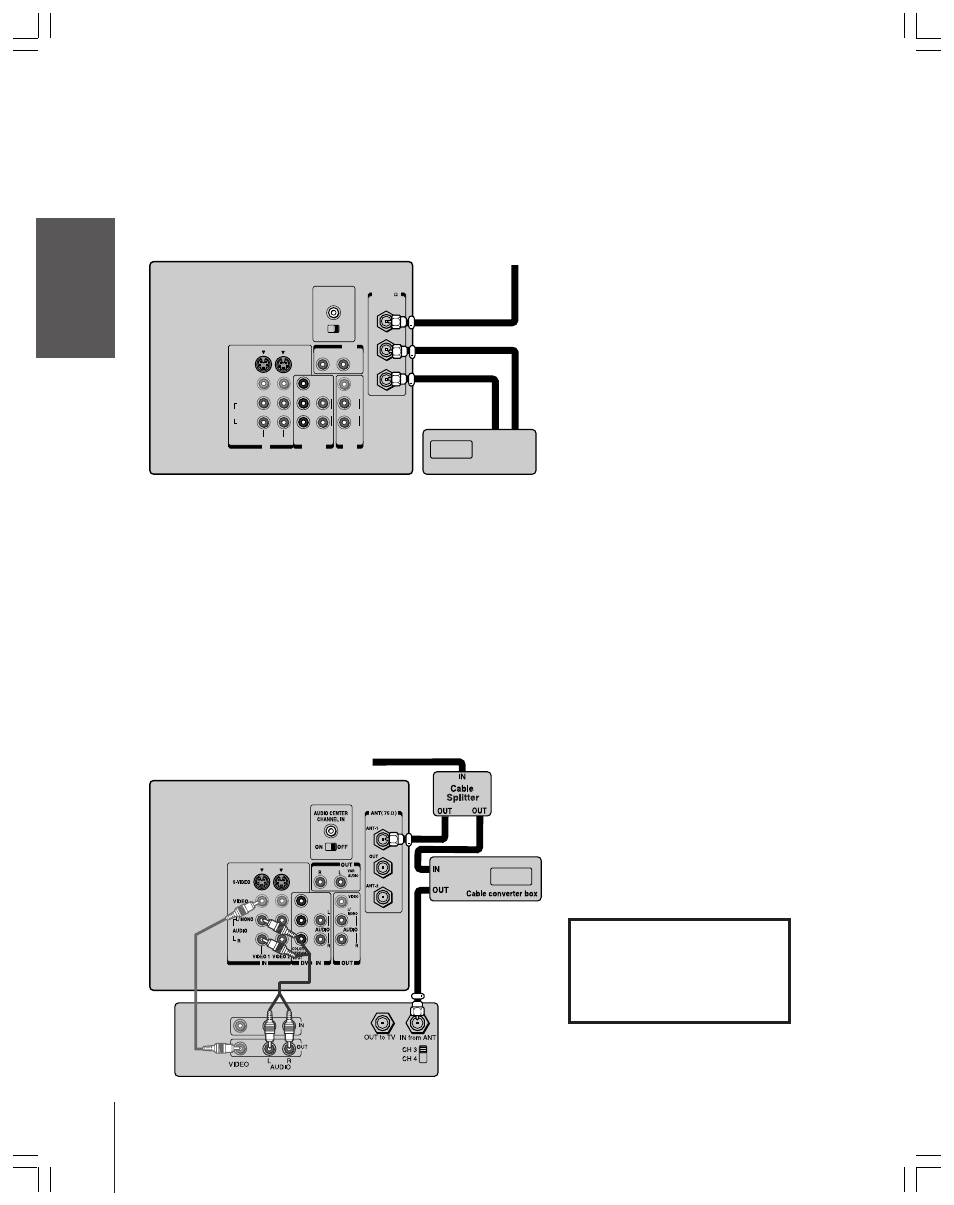

This connection allows you to view a different picture on your PIP if
you use a converter box to view premium channels. Select ANT 2 and
tune the TV to channel 3 or 4 (whichever channel is vacant in your
area). Use the converter box to change channels.
You will need:
• three coaxial cables
ANT( 75 )
ANT-1
CHANNEL IN
ON
OFF
OUT
R
L
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN
DVD IN
L
R
P
R
P
B
Y
L/ MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
IN
OUT
Cable converter box
Connecting a cable converter box and a VCR
This connection allows you to watch and record basic and premium
cable channels, watch videotapes, and record one channel while
watching another. To use the TV’s features, select ANT-1. To view
premium channels or record with the VCR, select ANT-2, tune the
TV to channel to 3 or 4 (whichever channel is vacant in your area),
and use the converter box to change channels.
You will need:
• one cable splitter
• four coaxial cables (one or more may be provided by your cable
company)
• one pair of audio cables (one single audio cable for a mono VCR)
• one video cable
P
B
P
R
Y
Note:
You cannot view premium channels in the
PIP window.
PIP swap is not available with this connection.
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have an S-VHS VCR, use an S-video
cable instead of a standard video cable for
better picture performance.
Do not connect a standard video cable and
an S-video cable to Video-1 (or Video-2) at
the same time or the picture performance will
be unacceptable.
TV
From Cable
TV
From Cable
Stereo VCR
