12
Connecting an A/V receiver
This connection allows you to use an audio/video (A/V) receiver to
enhance your TV’s sound.
If you have a system with Dolby Pro Logic* surround sound, you can
add to the realism of the sound by using the TV speakers as center
channel speakers.
You will need:
• one coaxial cable (may be provided by your cable company)
• one pair of audio cables
• one video cable
• one audio cable for the audio center channel
ANT( 75 )
ANT-1
CHANNEL IN
ON OFF
OUT
R L
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN DVD IN
L
R
P R
P B
Y
L/ MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
ON OFF

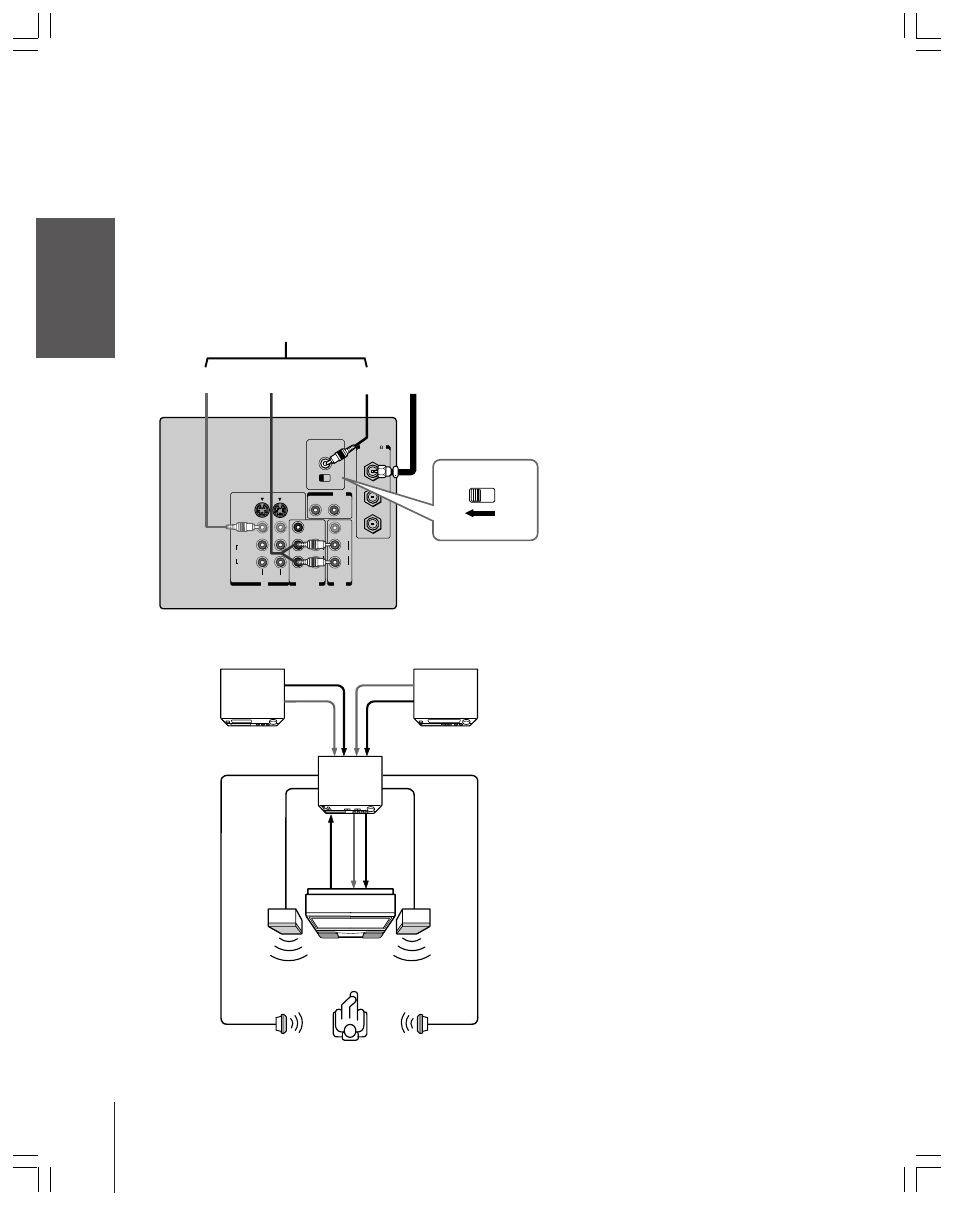

Connection example of Dolby Pro Logic surround system
T V
Right
speaker Left
speaker
Surround
speaker L Surround
speaker R
VCR
A/V receiver
Audio Video
Video
Audio Video Audio center channel
Audio
LDP/DVD
Caution:
To avoid damaging the speakers:
• Turn off the TV before connecting or
disconnecting the Audio Center Channel
cable.
• Do not connect from the A/V receiver’s
Center Speaker OUT (amplified signal) to
the TV’s Audio Center Channel IN.
Note:
Refer to the instructions provided with your
A/V receiver for details about your surround
sound system.
When the Audio Center Channel ON/OFF
switch is ON, the TV speakers will function as
center channel speakers only.
To adjust the center channel speaker volume,
use the center level control on the A/V
receiver.
To use the TV speakers as normal speakers,
set the Audio Center Channel ON/OFF switch
to the OFF position.
To A/V receiver
Video
OUT
TV
IN
Center
OUT
From
Antenna
___________
* “Dolby Pro Logic” is a trademark of Dolby Laboratories Licensing Corporation.
