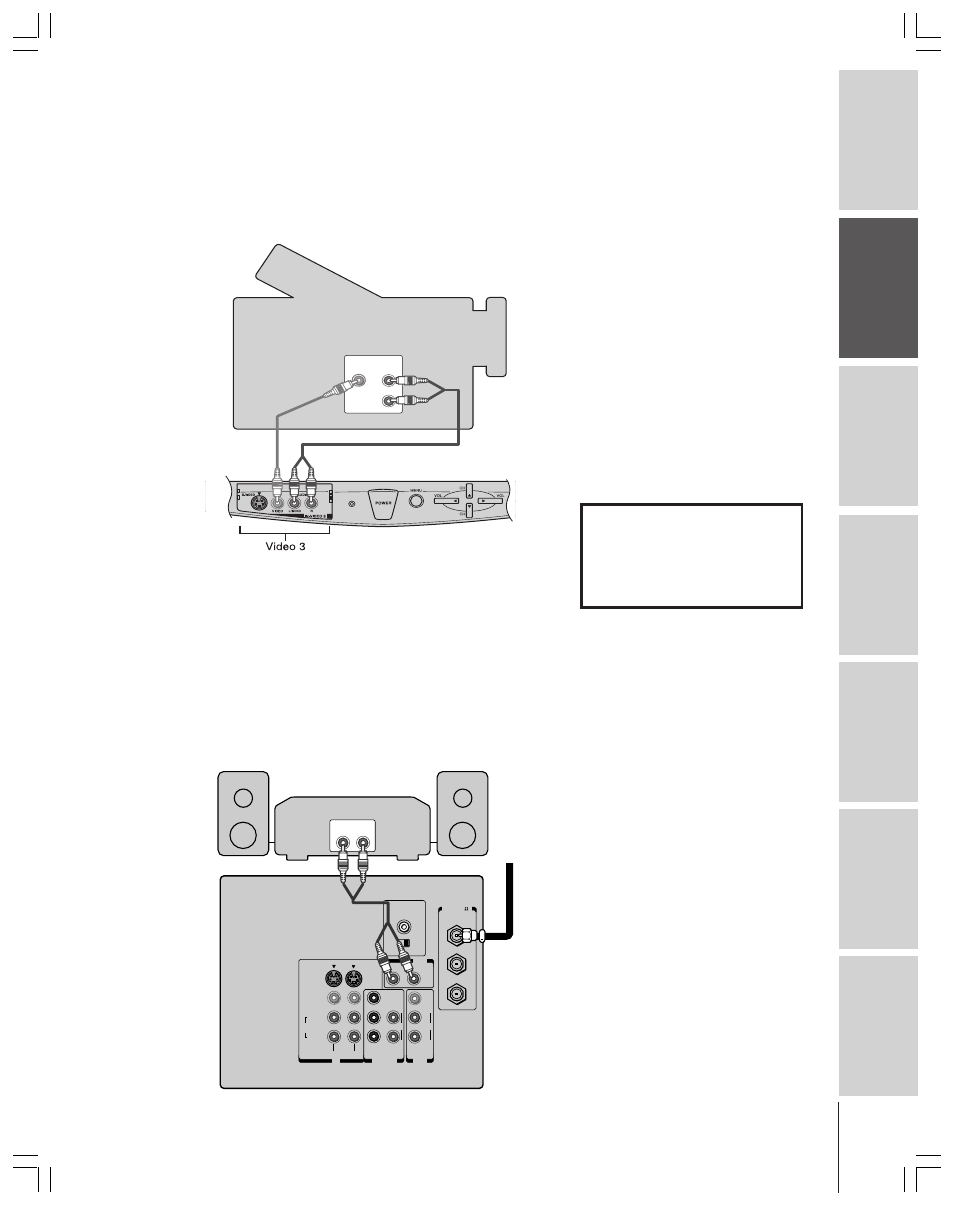

Connecting a camcorder
This connection allows you to watch video materials recorded on a
camcorder.
You will need:
• one pair of audio cables
• one video cable
VIDEO AUDIO
OUT
L
R
Camcorder
TV
Connecting an audio system
This connection allows you to use an audio amplifier to adjust the
audio level. This also allows you to use external speakers.
To control the audio, turn on the TV and the stereo amplifier, and
turn off the built-in speakers (see“ Turning off the built-in speakers”
on page 42).
You will need:
• one coaxial cable (may be provided by your cable company)
• one pair of audio cables
ANT( 75 )
ANT-1
CHANNEL IN
ON OFF
OUT
R L
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN DVD IN
L
R
P R
P B
Y
L/ MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
LINE IN
L R
Note:
If you have an S-VHS camcorder, use an
S-video cable (in the S-video jacks) instead of
a standard video cable between the TV and
camcorder.
Do not connect a standard video cable and
an S-video cable to Video-3 at the same time
or the picture performance will be
unacceptable.
Amplifier
From Cable, Cable Box or Antenna
TV
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.
Note:
To hear sound, the volume of both the TV and
the external audio amplifier must be set above
0 (zero).
