S S S SATA Interface ATA Interface ATA Interface ATA Interface
Out of bank signaling
There shall be three Out Of Band (OOB) signals used/detected by the Phy: COMRESET, COMINIT, and COMWAKE.
COMINIT, COMRESET and COMWAKE OOB signaling shall be achieved by transmission of either a burst of four Gen1
ALIGN
P
primitives or a burst composed of four Gen1 Dwords with each Dword composed of four D24.3 characters, each
burst having a duration of 160 UI
OOB
. Each burst is followed by idle periods (at common-mode levels), having durations as
depicted in Figure 4 and Table 2.

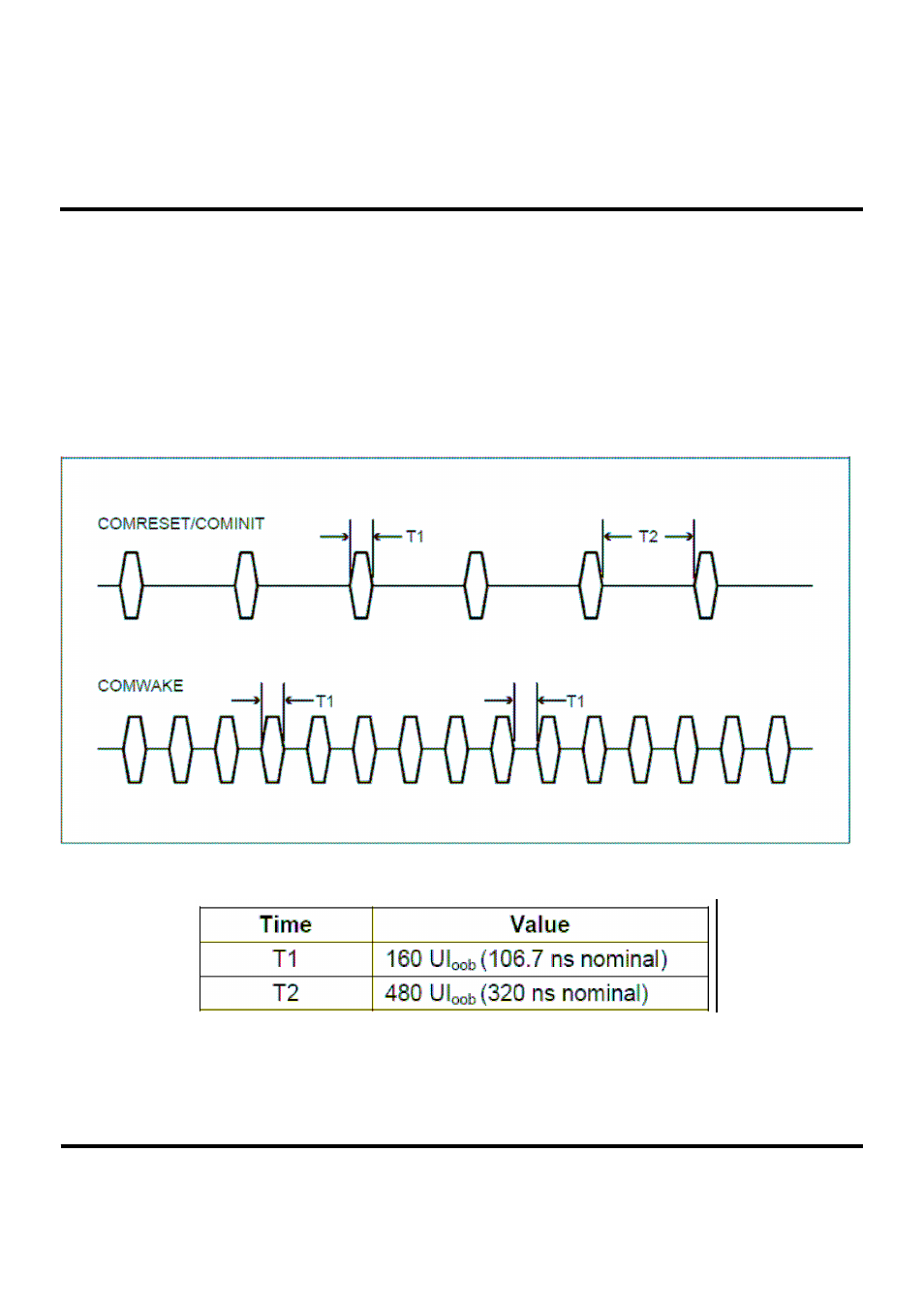

Figure 4 : OOB signals
Table 2 : OOB signal times
