times) at any given speed. The host should allow for at least 873.8 us (32768 nominal Gen1 Dword times) after detecting
the release of COMWAKE to receive the first ALIGN
P
. This ensures interoperability with multi-generational and
synchronous designs. If no ALIGN
P
is received within 873.8 us (32768 nominal Gen1 Dword times) the host restarts the
power-on sequence – repeating indefinitely until told to stop by the Application layer. 6. Device locks – the device locks to
the ALIGN sequence and, when ready, sends SYNC
P
indicating it is ready to start normal operation.
6. Upon receipt of three back-to-back non-ALIGN
P
primitives, the communication link is established and normal operation
may begin.

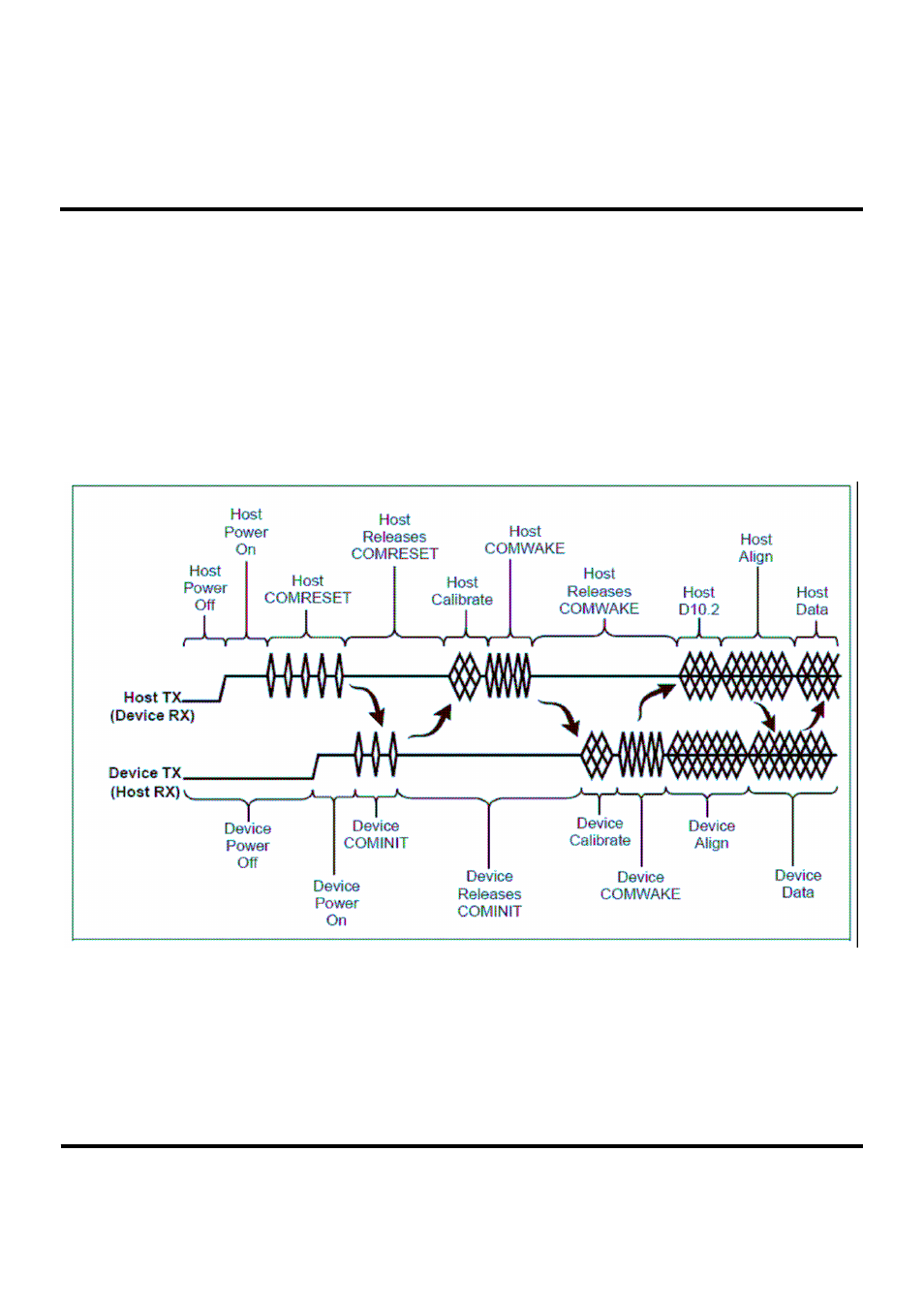

Power on sequence timing diagram
The following timing diagrams and descriptions are provided for clarity and are informative.
Figure 7 : power on sequence
