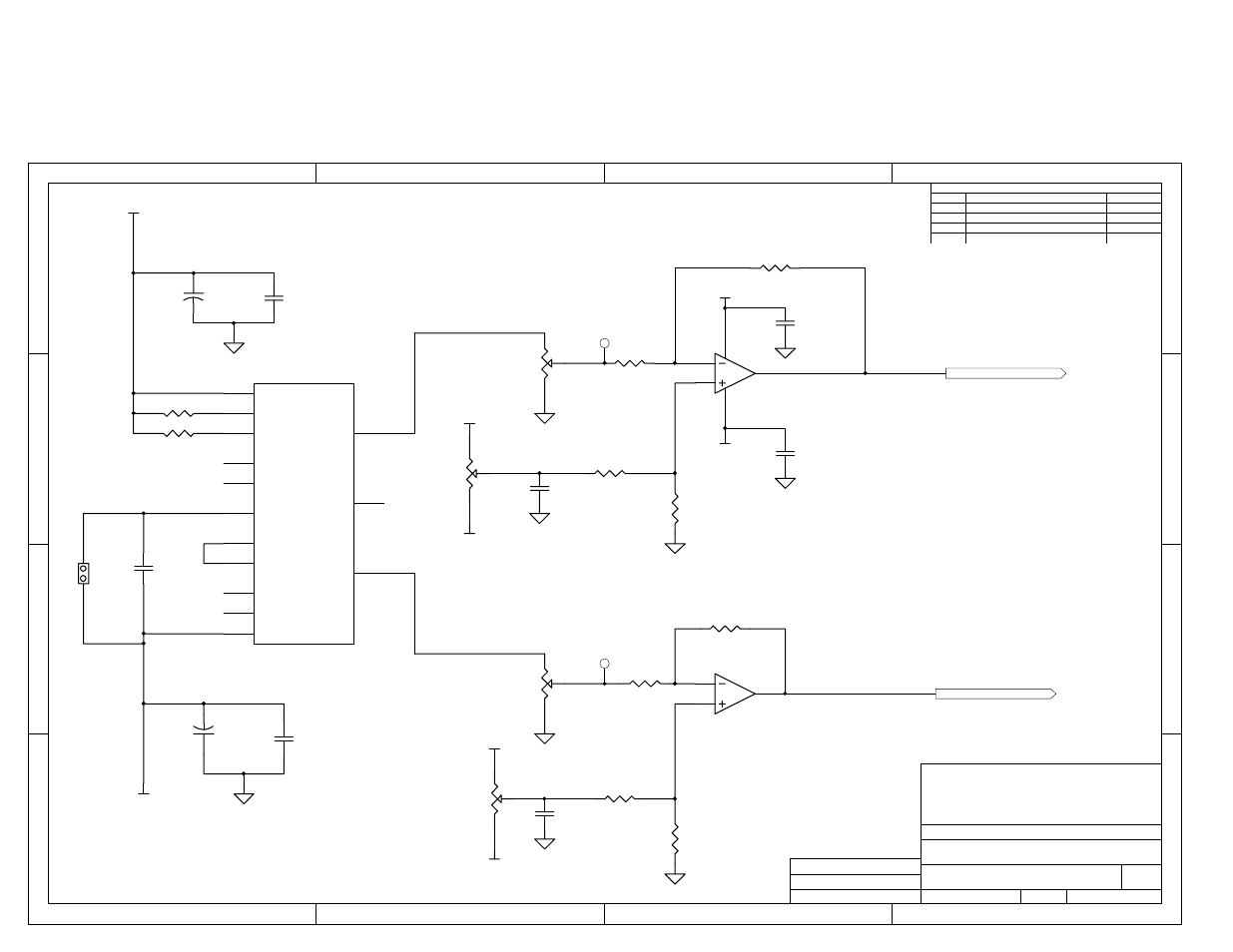

Signal Generator DATE: 28-Nov-2001
Signal Generator
6430333
A4
-Vs
+Vs
R60
49.9K
C17
1nF
+Vs
+Vs
Test Signal 0
Sine Out
2
Triangle Out
3
Square Out
9
V+
6
Duty adj.
5
Duty Adj.
4
Timing Cap.
10
V- / GND
11
Sine Adj
1
Sine Adj
12
FM Bias
7
FM Sweep Input
8
Not connected
13
Not Connected
14
U3
ICL8038
R72
49.9K
W9
RV3
100K
R7
4.7K
C13
0.1uF
C12
0.1uF
+ C6
10uF
C5
0.1uF
C15
0.1uF
-Vs
RV4
10K
TP5
+Vs
Test Signal 1
RV6
100K
R15
4.7K
C7
0.1uF
-Vs
RV5
10K
TP8
3
2
1
8
4
U4A
TLE2082D
5
6
7
U4B
TLE2082D
C16
0.1uF
-Vs
+
C18
10uF
R16
4.7K
R61
4.7K
R59
4.7K
R13
4.7K
R5
4.7K
R8
4.7K
