1 14

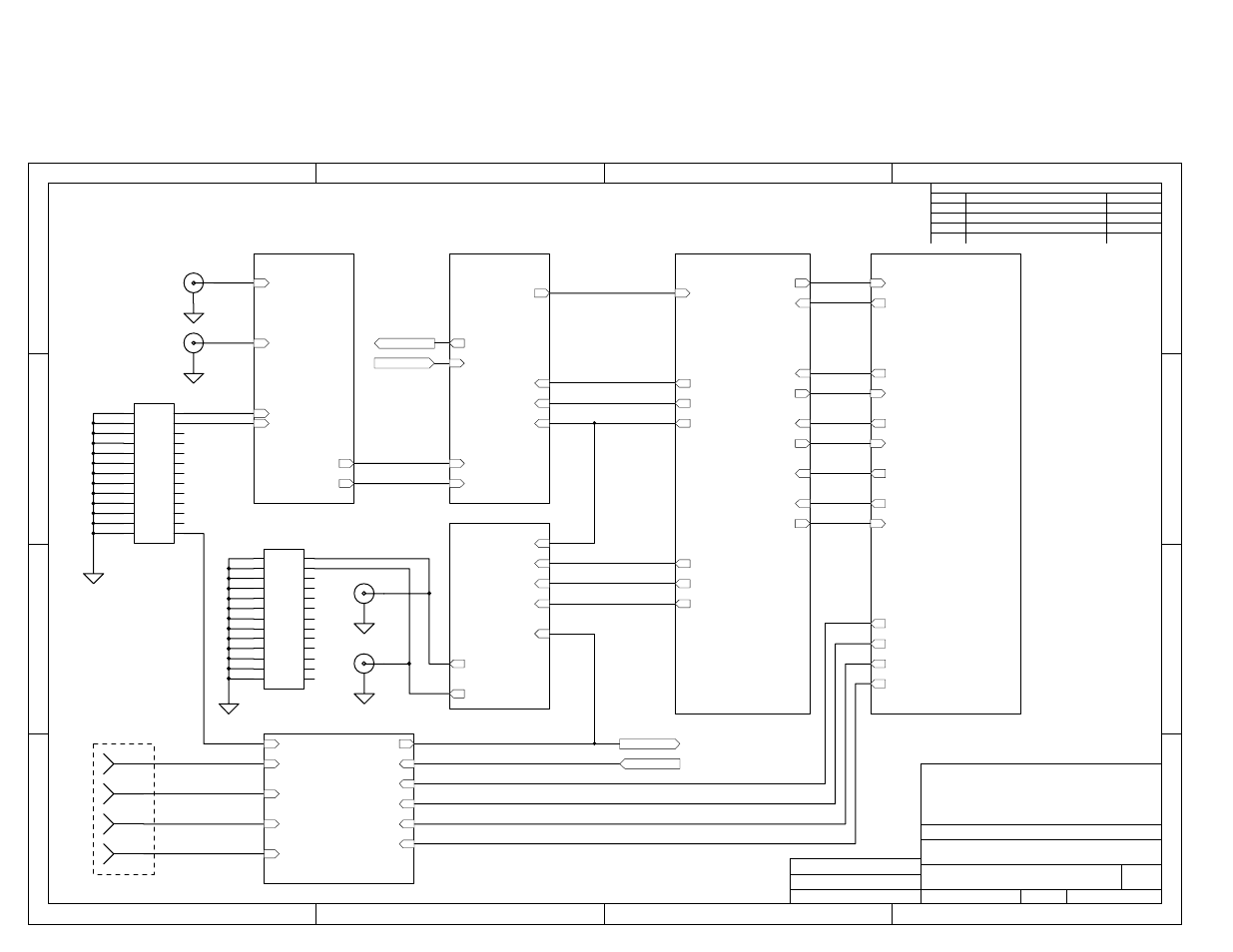

Block Diagram DATE: 28-Nov-2001
Block Diagram
6430333
A4
J6
J1
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
J4
J2
J5
+Supply
Ground
-Supply
VREFP EXT_VREFP
PCI_-12V
PCI_+12V
PCI_GND
SENSE
+5V_IN
PCI_+5v
Power & Reference
SENSE
VREFP
SENSE
VREFP
In_0
ADC_Data_out
VREFP
SENSE
In_1
LCL_CLKX
FS
LCL_CS_ADC*
ADC
AOUT
VREFP
DAC_Data_in
AOUT_A
DAC_Write*
LCL_CS_DAC*
LCL_CLKX
DAC
PCI_GND
PCI_+12V
PCI_-12V
DSP_CLKX
DSP_FSX
DSP_CLKR
DSP_FSR
DSP_XF
DSP_DX
DSP_DR
DSP_TOUT
DSP_CLKS
PCI_+5v
User connectors
ADC_Data_out
DAC_Data_in
FS
LCL_CS_DAC*
LCL_CS_ADC*
LCL_CLKX
DSP_XF
DSP_DX
DSP_CLKX
DSP_FSX
DSP_DR
DSP_FSR
DSP_CLKR
DSP_CLKS
DSP_TOUT
DAC_Write*
Interface
BNC_0
IDC_0
BNC_1
IDC_1
Channel_1
Channel_0
Input Config
+Supply
Ground
-Supply
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
J8
+5V_IN 1
2
3
4
J7
