B070/B071 9-2
PTM
9.2 OVERALL MACHINE INFORMATION

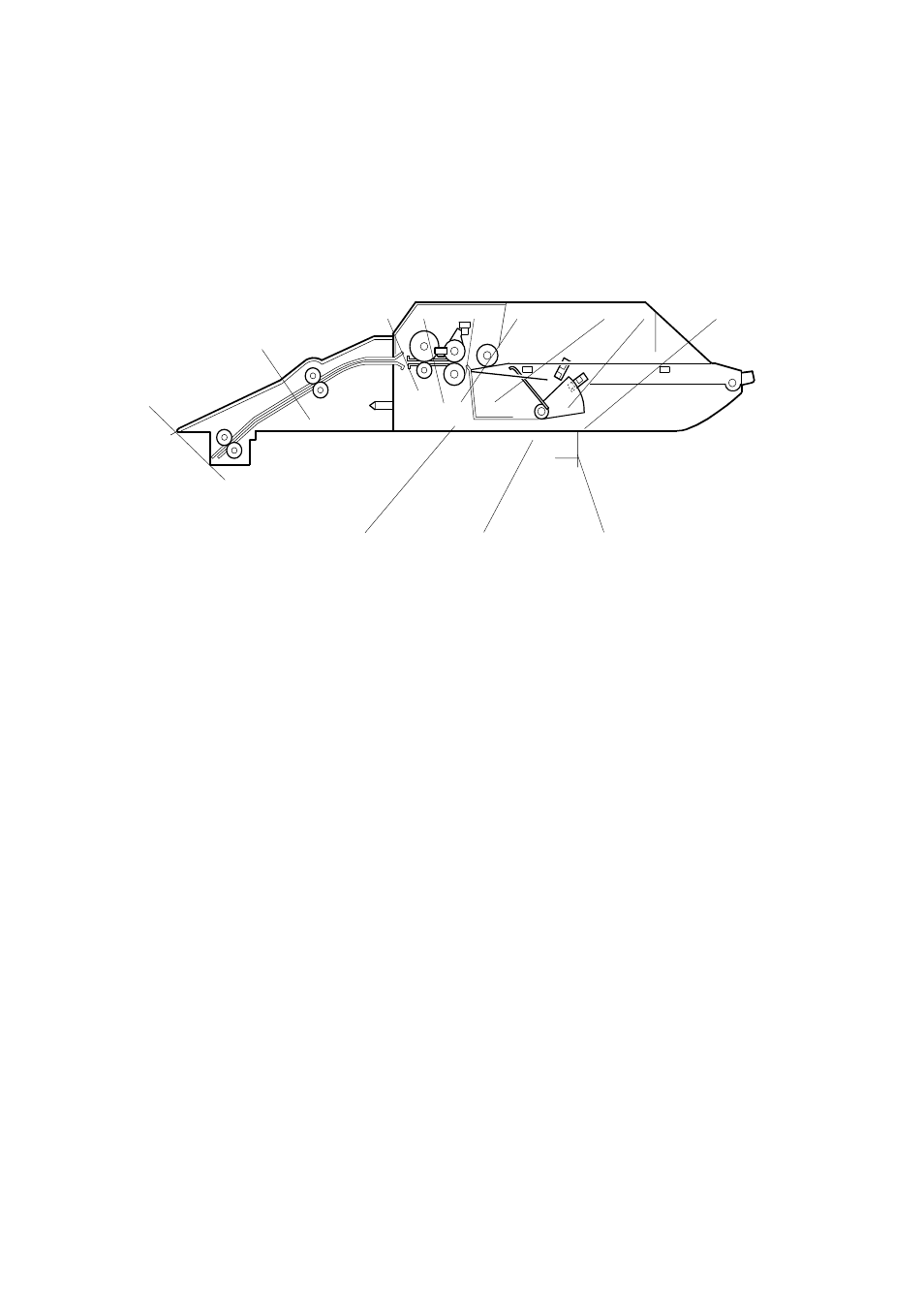

9.2.1 MECHANICAL COMPONENT LAYOUT
1. Transport Roller 2
2. Transport Roller 1
3. Grip Roller
4. Paper Feed Sensor
5. Lift Sensor
6. Feed Roller
7. Pick-up Roller
8. Paper Height Sensor 1
9. Paper Height Sensor 2
10. Lift Plate Actuator
11. Lift Plate
12. Separation Roller
B512D001.WMF
2
3
4
5
6
7
8
9
11
12
10
1
