EDIT - Routing and Layout
22
Setting up the processing blocks
In the Routing display you can freely select the order of the processing blocks in the Gold Channel. With the Layout
page you can select if you want to run two channels or one channel at 96 kHz and where to place the Insert block.
To get access to the Routing display, press the EDIT key if you are not already there, and use the < > Menu keys to select the Routing page.

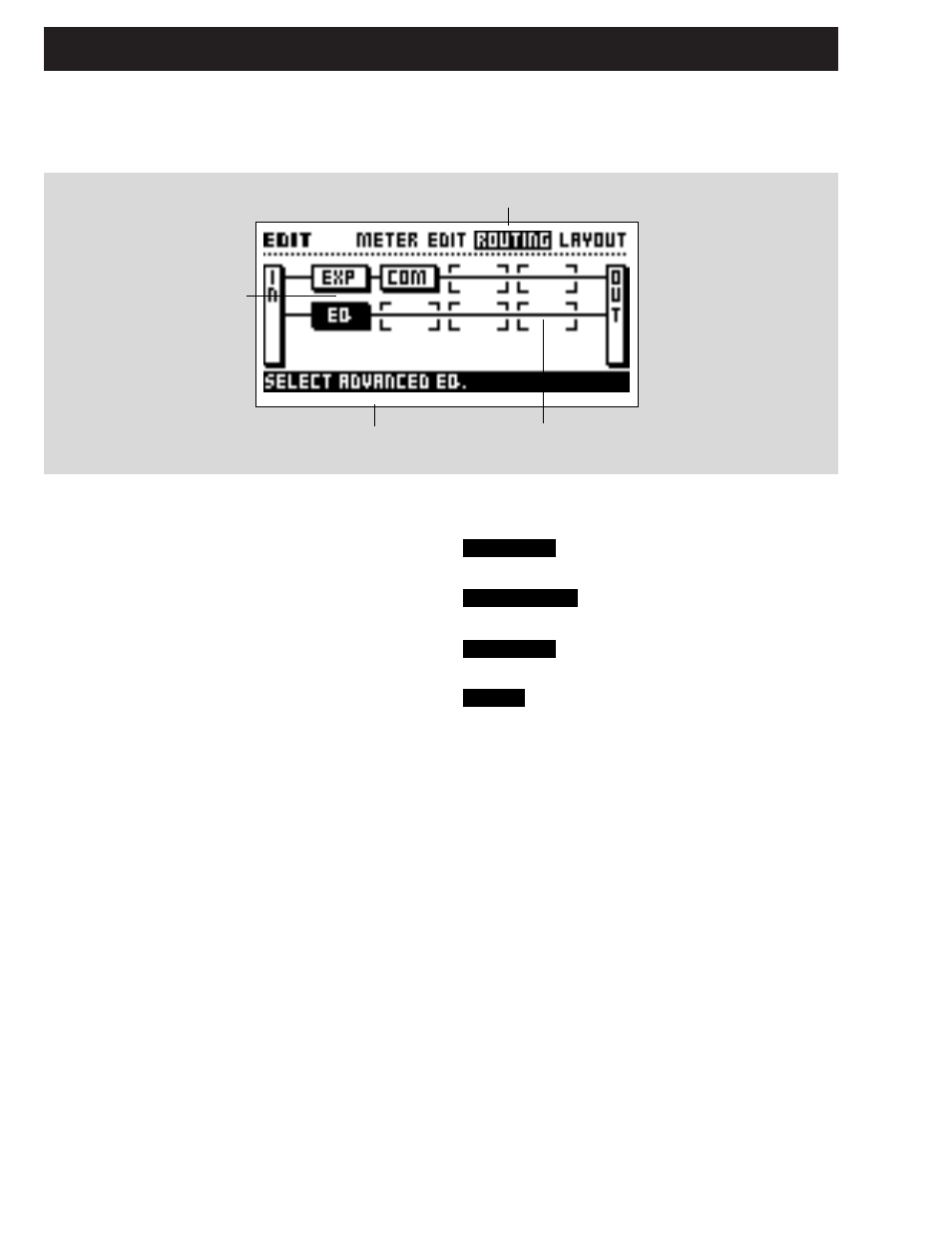

About the Routing display
The Routing display has a grid with positions where you can put
in processing blocks. The grid size depends on what Mode you
have selected in the Layout display . The lines from IN to OUT
through the grid positions indicate that there will always be
access from inputs to outputs, with or without processing blocks.
All processing blocks are running in mono and are set up in
series, meaning that the first block will be fed through the second
and so on.
Setting up processing blocks
For each channel it is possible to place one Expander, one
Compressor, one EQ and one of the Tools algorithms (Only
limited by available Grid positions).
Basic operation is accomplished by using the Parameter wheel to
change cursor position between the various block positions, and
the Value wheel to change between the sub-algorithms, the Enter
key is used to confirm a sub-algorithm setting.
NOTE: If you select a block that is already in the channel
routing, the block that is already set will start blinking and the
cursor will get rounded corners. If you press Enter to confirm the
setting, the block that was already there will be deleted.
The Sub-algorithms
Below is a list of the sub-algorithms for the four blocks
The Layout page
The Layout page features a number of functions that all refer to
the Routing. In the Layout display, there is a miniature version of
the current Routing, showing the grid size and the position of the
blocks.
EXPANDER: Easy Gate
Advanced Expander
Soft Compressor
Vintage Compressor
Easy Equalizer
Advanced Equalizer
De-Esser
Dynamic Equalizer
DRG
TM
R.I.A.A.
COMPRESSOR:
EQUALIZER:
TOOLS:
“Routing” page selected
Empty block positions
Dial the Parameter
wheel to select block
position, and Value
wheel to select between
the ten Sub-algorithms.
Then press Enter to
confirm setting
Shows you Sub-algorithm type
at cursor position
