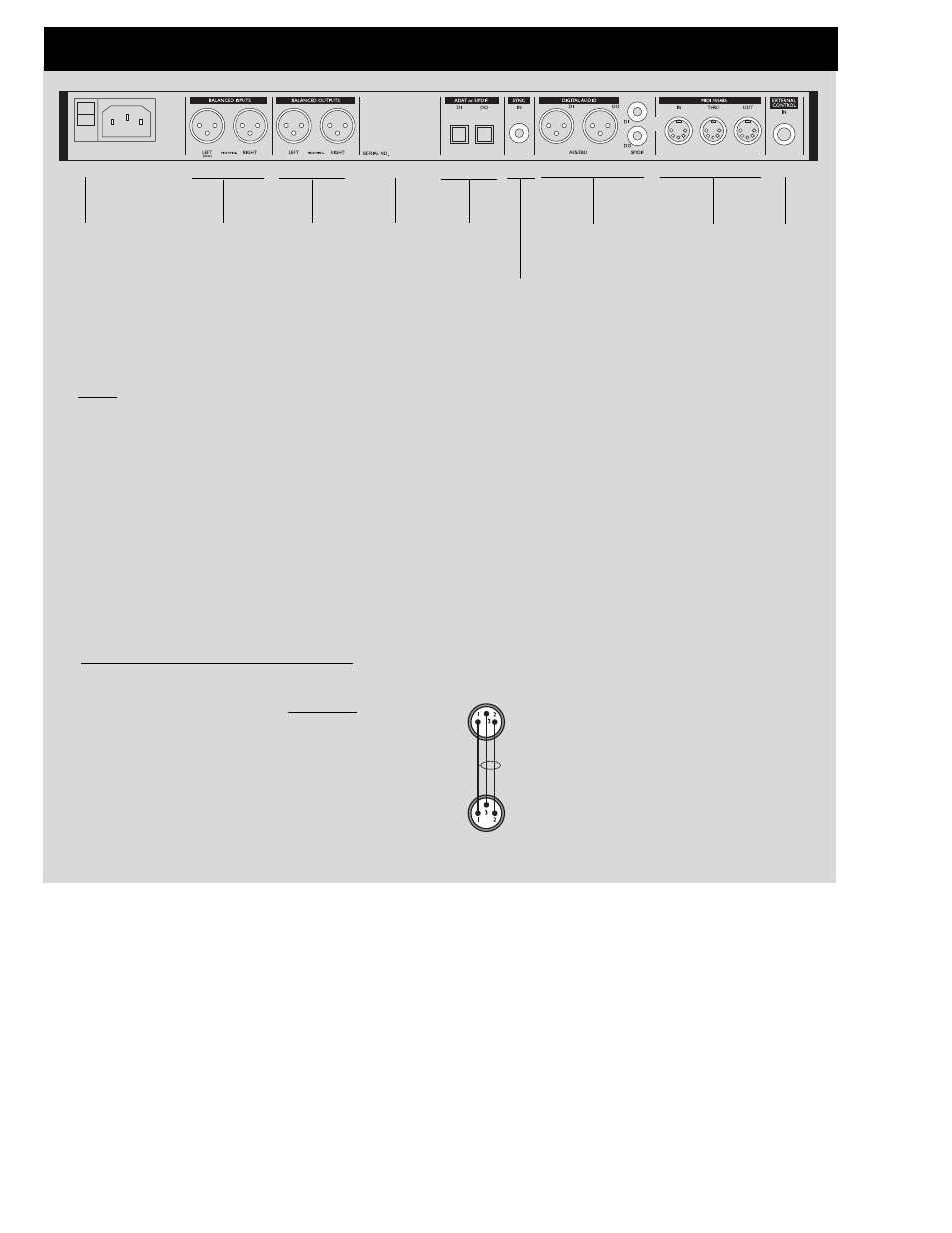

THE REAR PANEL
10
Main
Power
Switch
Serial no. MIDI
In,Thru,Out
External
Control
Input
Balanced
Mic/Line
XLR
Inputs
Balanced
Analog
XLR
Outputs
ADAT and
Tos-link
In/Out
Word
Clock
Input
RCA
Digital
AES/EBU
S/PDIF
In/Outs
Notes
Pin 2 is “Hot” on all XLR’s (IEC and AES standards).
You must use balanced XLR-XLR cables to get the +48V phantom power to your condenser microphones.
External control jack works with the optional TC Master Fader to control the Master Output Level.
The Gold Channel power supply is capable of operating at any line voltage between 100 volts and 240 Volts
(50-60 Hz).
XLR - XLR
Pin 1 - Pin 1 (Ground)
Pin 2 - Pin 2 (Hot)
Pin 3 - Pin 3 (Cold)
Balanced XLR-XLR cables:
