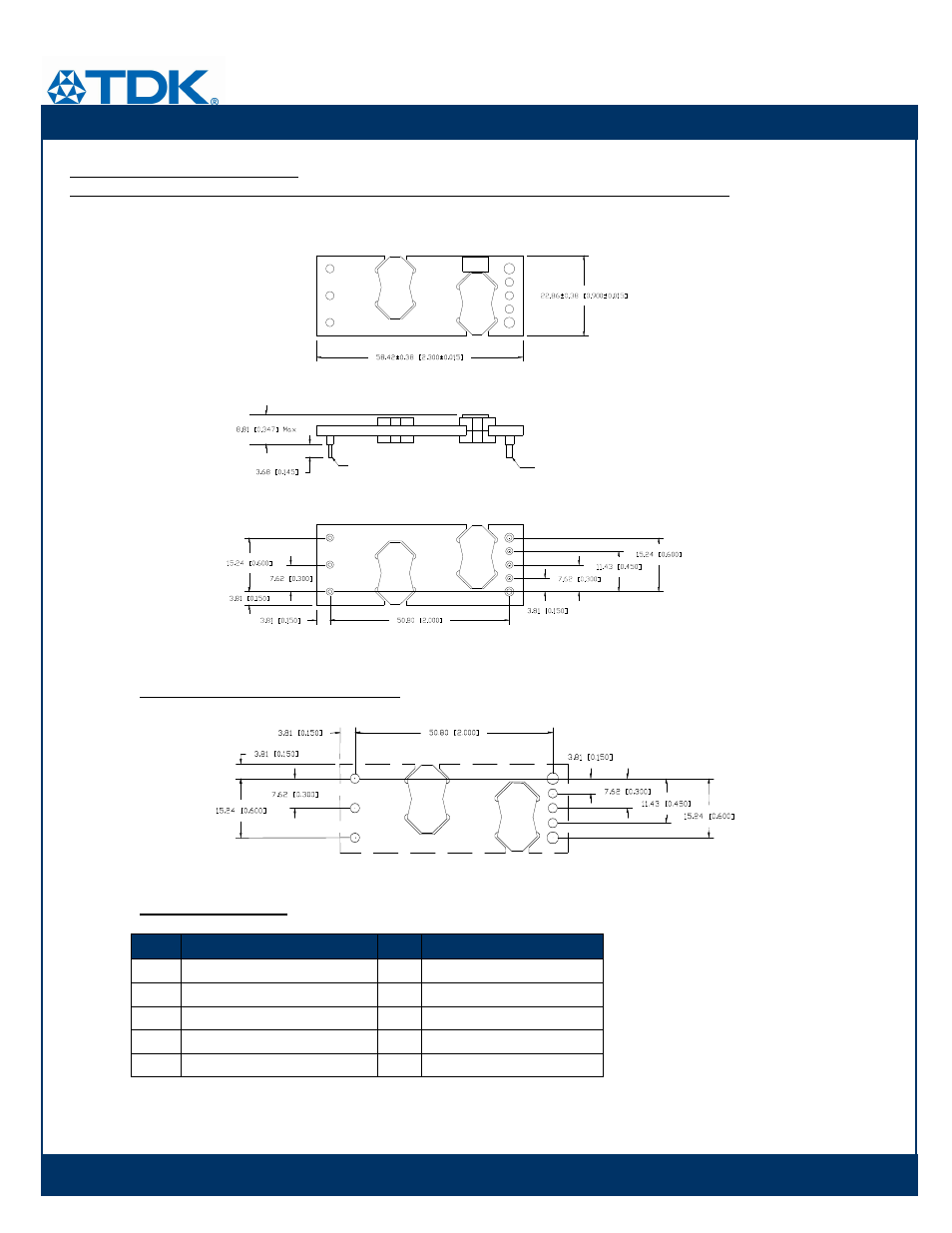

Mechanical Specification:
Dimensions are in mm [in]. Unless otherwise specified tolerances are: x.x ± 0.5 [0.02], x.xx and x.xxx ± 0.25 [0.010].
1.02 [0.040] DIA Pin
2.03 [0.080] DIA Stand-Offs
6 Pins 1.57 [0.062] DIA Pin
2.59 [0.102] DIA Stand-Offs
2 Pins
Recommended Hole Pattern: (top view)
1
2
3
8
7
6
5
4
Pin Assignment:
PIN FUNCTION PIN FUNCTION
1 Vin(+) 4 Vo(-)
2 On/Off 5 Sense(-)
3 Vin(-) 6 Trim
7 Sense(+)
8 Vo(+)
Pin base material is brass with tin plating; the maximum module weight is 30.4g (1.07 oz).
