PREPARATION FOR USE
Although minimal, T-TECH requires some preparation before use. The following instructions describe the necessary
steps to prepare your new transmission fluid exchanger for use.
Fitting Organization
Locate the standard fittings assortment and set each fitting in the T-TECH cabinet storage position identified by the
picture mounted on the backside of the cabinet cover. The standard fittings have a specific storage location inside
the T-TECH cabinet. Most of the fittings are numerically referenced and have a color-coded band for easy
identification.
Throughout each of the operating functions performed using the T-TECH, various adapters, fittings, or attachments
will require installation in order to service a specific vehicle. This is not considered part of initial preparation for use.
In each case, the setup and connection requirements for a specific task will be added, where necessary, as part of
the procedure for that task.
Standard Fittings Assortment Descriptions

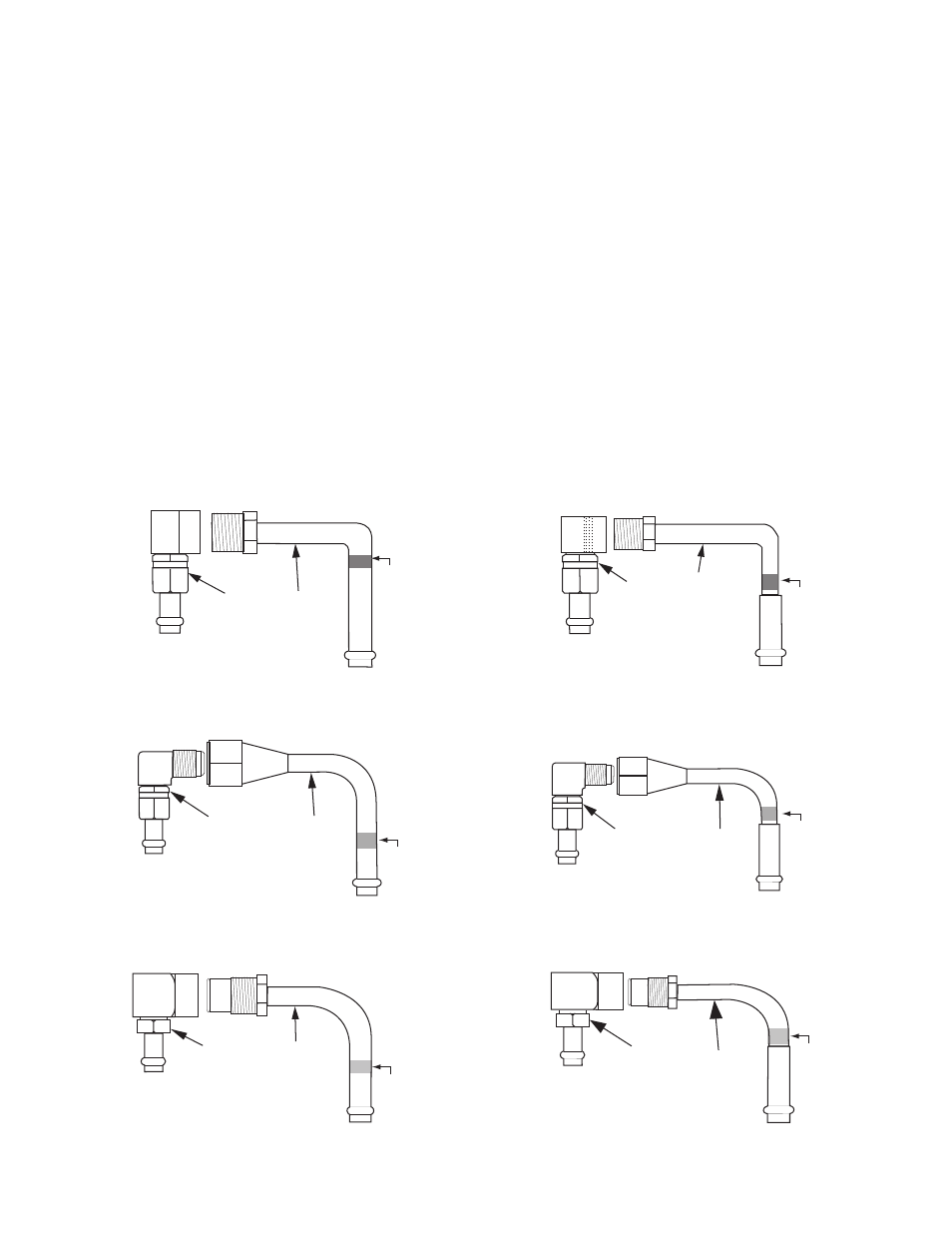

Figure 1 through Figure 14 identify the fittings/components in the standard fittings assortment.
Note: Be aware that any of these fittings along with any of the fittings in the special fittings kits can be used to
service any vehicle as needed.
Figure 1. Fitting 301 and Fitting 302
General Motors – Pre-2000 large and
heavy-duty GM cars, trucks and vans
Figure 3. Fitting 305 and Fitting 306
Chrysler/Jeep/Eagle – Pre-2005 Jeep Cherokee
and some passenger vehicles
Figure 5. Fitting 309 and Fitting 310
Ford – Pre-2005 large trucks and vans
Figure 2. Fitting 303 and Fitting 304
General Motors – Pre-2000 passenger cars,
light duty trucks and vans
Figure 4. Fitting 307 and Fitting 308
Chrysler/Dodge/Eagle – Chrysler Corp. passenger
cars [Fitting 308 also fits Volvo 720/740]
Figure 6. Fitting 311 and Fitting 312
Ford – Small passenger cars and light duty trucks
FIT301 FIT302
Red
Band FIT304
FIT303
Red
Band
FIT306 FIT305
Green
Band
FIT310 FIT309
Blue
Band
FIT312
FIT311
Blue
Band
FIT308 FIT307
Green
Band
