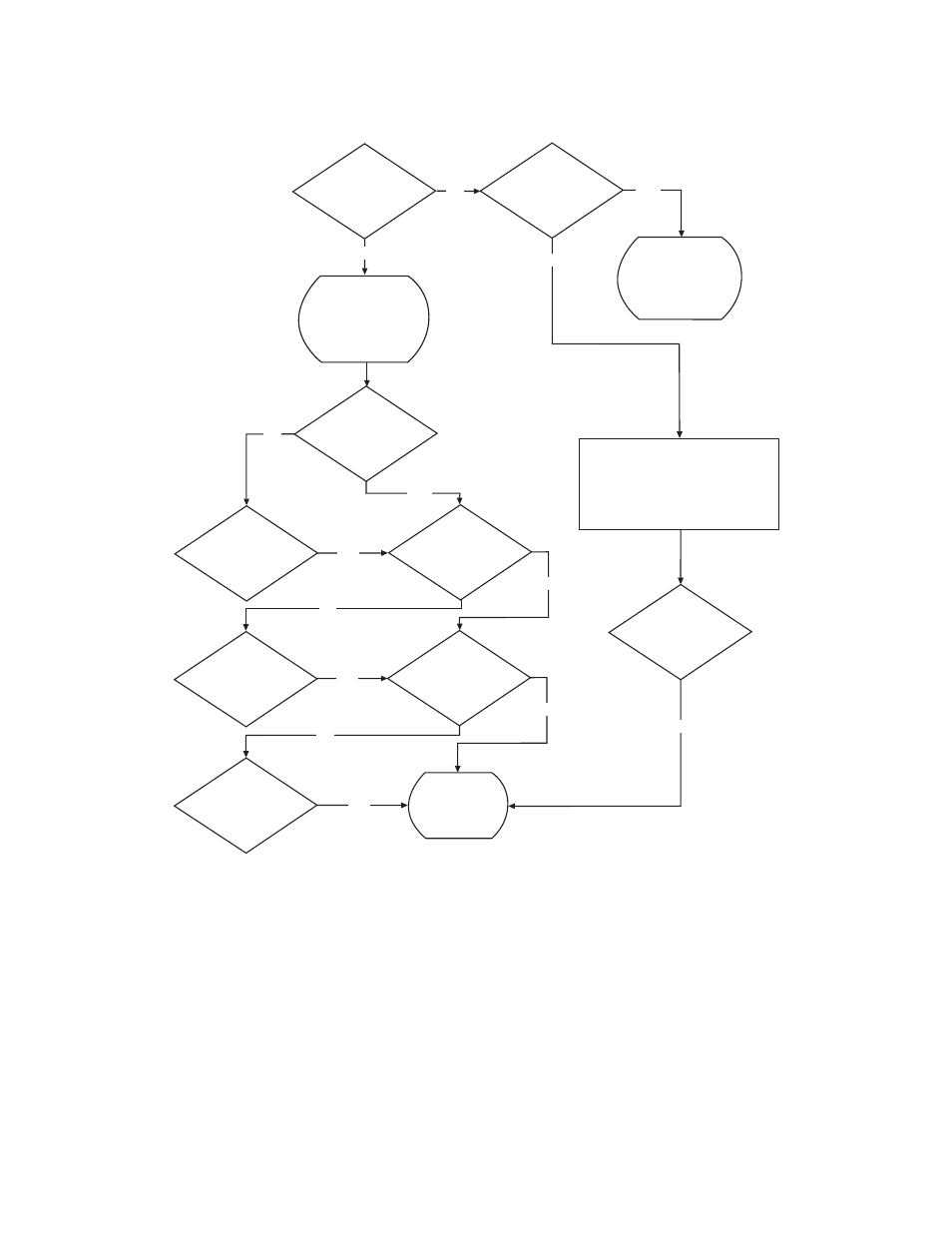

Fill Cylinder Using Bulk Dispenser
Yes
No
Is the piston
at the top of the
cylinder?
See REMOVING AIR
FROM THE CYLINDER
for removal
instructions.
Is the
bulk dispenser gun
connected to the
SERVICE
PORT?
Do both
service transfer
hoses have service hose
adapters attached?
Is
adequate
pressure shown on
the pressure gauge?
20-50 psi (138-
345 kPa)
Call T-TECH
Technical Support.
1-800-328-2921
Verify CONTROL VALVE
is set to FILL CYLINDER
and retry fill process.
Fail
No
Fail
No
Yes
Yes
Fail
Connect
bulk dispenser gun
to the SERVICE PORT.
Retry fill process.
Attach
service hose
adapters to the service
transfer hoses. Retry
fill process.
Machine
is not receiving
fluid from bulk dispenser
gun. Check gun
orientation.
Is
there a
strong, steady
flow?
Turn bulk dispenser gun off. Disconnect
one hose adapter from transfer hose.
Turn gun on, wait 4-5 sec. Turn gun
off. Reconnect hose adapter (over
used ATF container). Auto alignment
is corrected. Turn gun on.
No
Is
there a
strong, steady
flow?
No
No
Yes
Yes
