Toyota
Toyota Camry
Note: When servicing Toyota Camry’s with 4 cylinder engine, a low line pressure condition may be encountered.
This is normal and requires the following steps to perform the service.
1. With the T-TECH connected to the vehicle through a cooler line, start the vehicle.
2. Set the parking brake, with one foot on brake, place the transmission in neutral and increase the engine
speed to 1900 RPM. Monitor the exchange process until completed.
3. If the transmission is still not producing the needed pressure for an exchange, increase the engine speed
to 2300 RPM. Monitor the exchange process until completed.
4. If the line pressure is still too low to perform a service, stop the exchange and disconnect the T-TECH. The
vehicle may have other problems that need to be corrected before service can be completed.
Volkswagen
A fluid exchange service cannot be performed on most Volkswagen automobiles, including Jetta, Golf, Passat and Audi.
CAUTION: These vehicles do not have automatic transmission fluid cooler lines. In some cases, Volkswagen
transmission lines may have radiator coolant in them. This is because the heat exchanger is located inside the
transaxle.
Volvo 850 FIT409
The Volvo 850 uses a fitting that requires special parts to complete a T-TECH service.
CAUTION: Some of these fittings are a matched set and must be kept together in the small plastic box marked
FIT409.
Instructions
1. With an expansion pliers (a common screwdriver, 1/2 inch
wide will also work), expand the clip and remove the line
and clip from the radiator.
2. Remove the clip from the line.
3. Install a lathe cut ring and an o-ring on the fitting.
4. Install the clip on the FIT409 fitting.
5. Push the fitting and clip into the radiator. The ramps will
automatically expand the receptacle on the radiator.
6. Push a service adapter hose over the fitting and clamp
down.
7. Push fitting FIT321 over the transmission cooling line and
clamp it in place.
8. Attach a service adapter hose to FIT321.
9. When service is complete, return the special fittings to
FIT409 (Figure 64) case and FIT321 to the assigned
location in the fittings drawer.
O-Ring
Lathe Cut Ring
Transmission Cooling
Line Attached to
Radiator
FIT409 Special
Fitting
Radiator
Clip
Radiator
Radiator
Standard Fitting
FIT321
Sevice Adapter
Hose
Transmission Cooling
Line

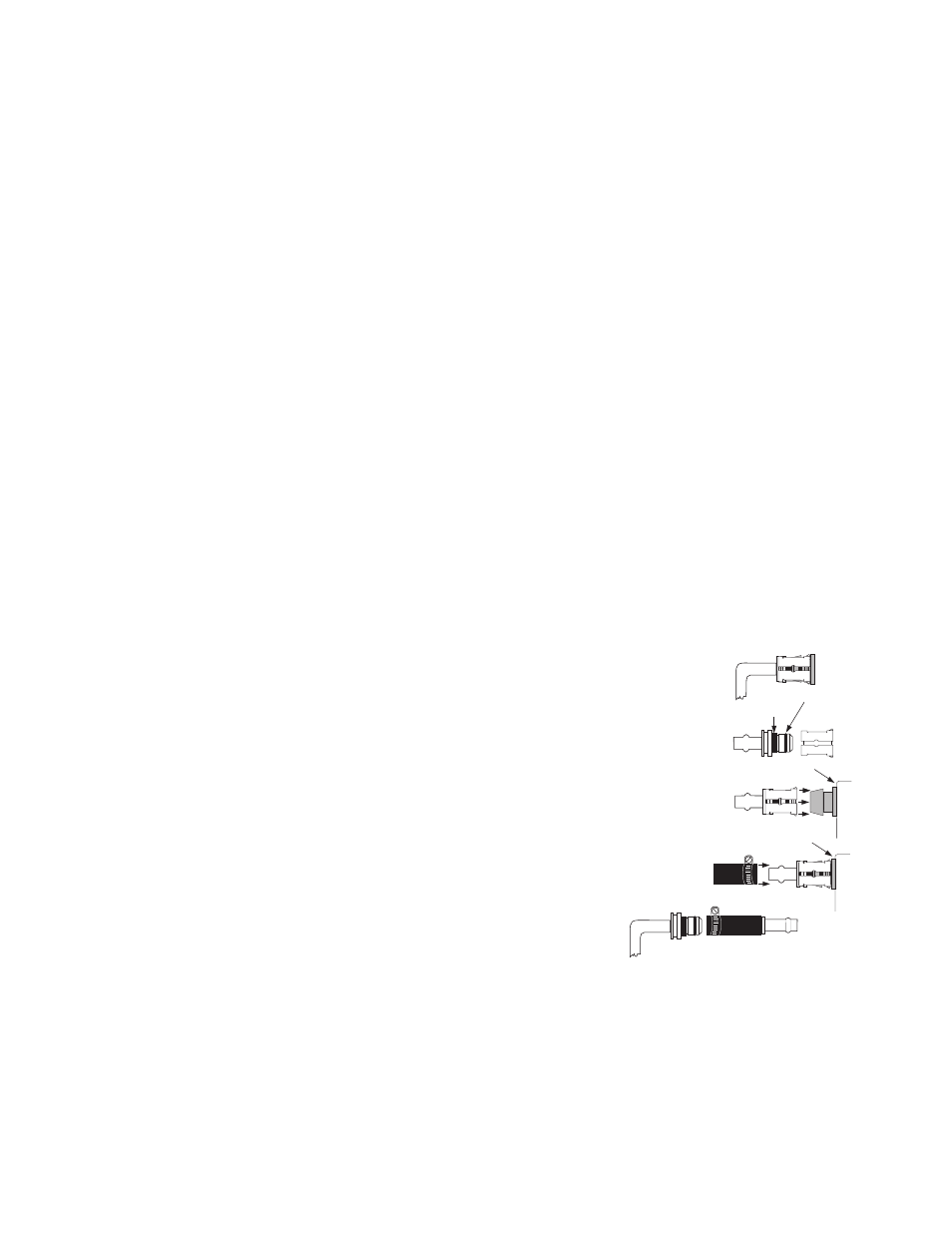

Figure 64. FIT409 Installation On Volvo 850
