OPERATION INSTRUCTIONS
For first time use, do not perform any of the following procedures until you have completed the procedures in
Preparation For Use. All procedures must be performed in the order presented.
CONTROL
VALVE

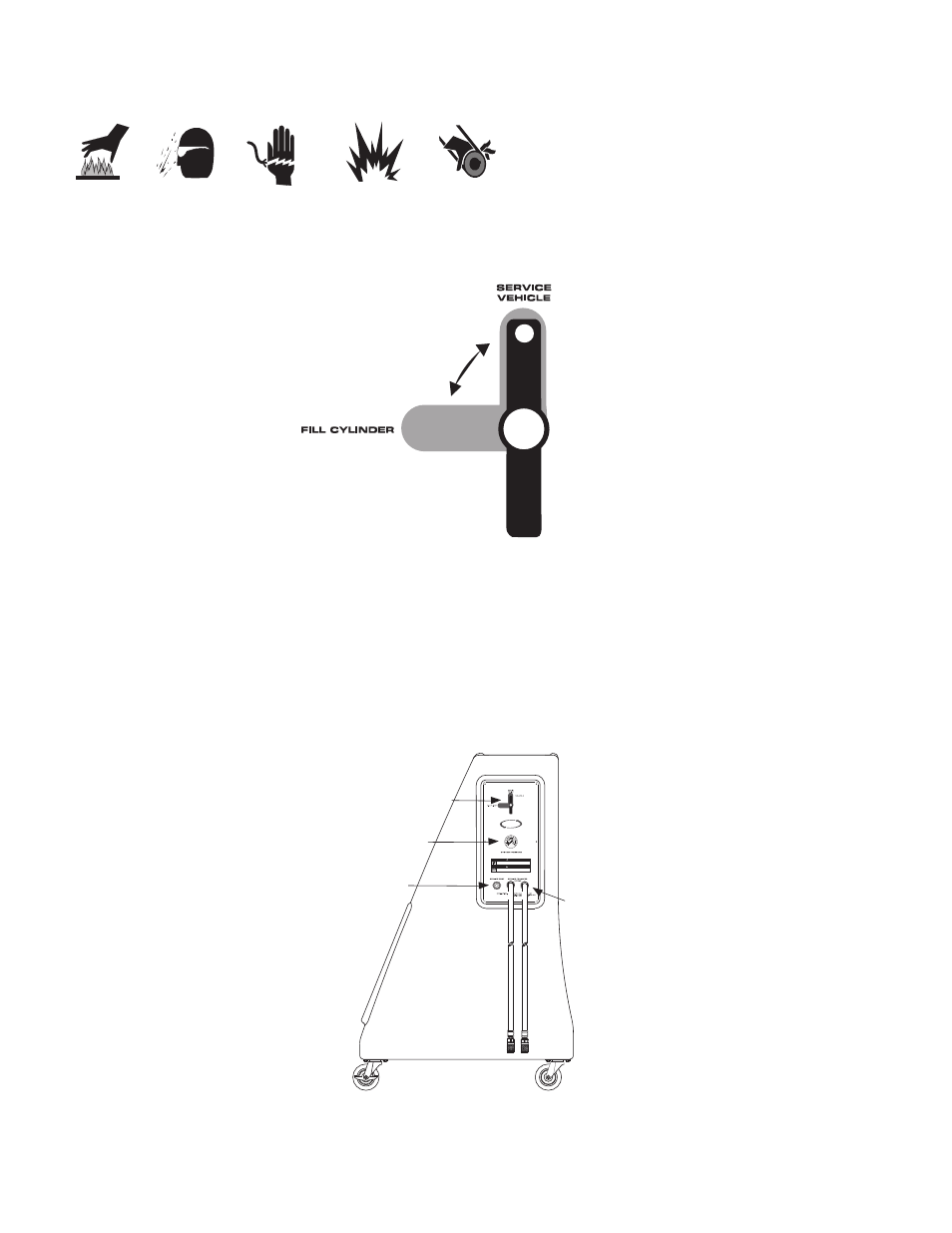

Figure 36. Control Valve Positions
For each service being performed, always make certain to fill the cylinder with the specific type of ATF required by
the vehicle to be serviced. Once Preparation For Use has been completed, a typical service consists of the
following procedures in the order presented.
1. Fill Cylinder Function
2. Connecting to the Vehicle
3. Fluid Exchange Function
Service Transfer
Hose Connections
(Hard Plumbed)
Control Valve
System
Pressure Gauge
Service Port
TECH T- ®
Failure to follow instructions may cause damage or explosion;
always shield eyes. Read entire instruction manual before use. WARNING
Do not exceed 75 PSI input pressure when filling the T-TECH. CAUTION
Figure 37. TT100 Side View
