PrecisionHD 1080p Camera User Guide
Connecting the camera
DIP Switch table for video formats
1 2 3 4 5 HDMI HD-SDI
0 0 0 0 0 Auto
0 0 0 0 1 1080p25 1080p25
0 0 0 1 0 1080p30 1080p30
0 0 0 1 1 1080p50 720p50
0 0 1 0 0 1080p60 720p60
0 0 1 0 1 720p25 720p25
0 0 1 1 0 720p30 720p30
0 0 1 1 1 720p50 720p50
0 1 0 0 0 720p60 720p60
0 1 0 0 1 Software control
The table shows the different settings available for the HDMI
and the HD-SDI outputs.
Auto: Camera negotiates format over HDMI. HD-SDI tracks
HDMI and defaults to 1080p30 in absence of HDMI sync.
Software: For more on the Software control setting, see
Video mode selection .

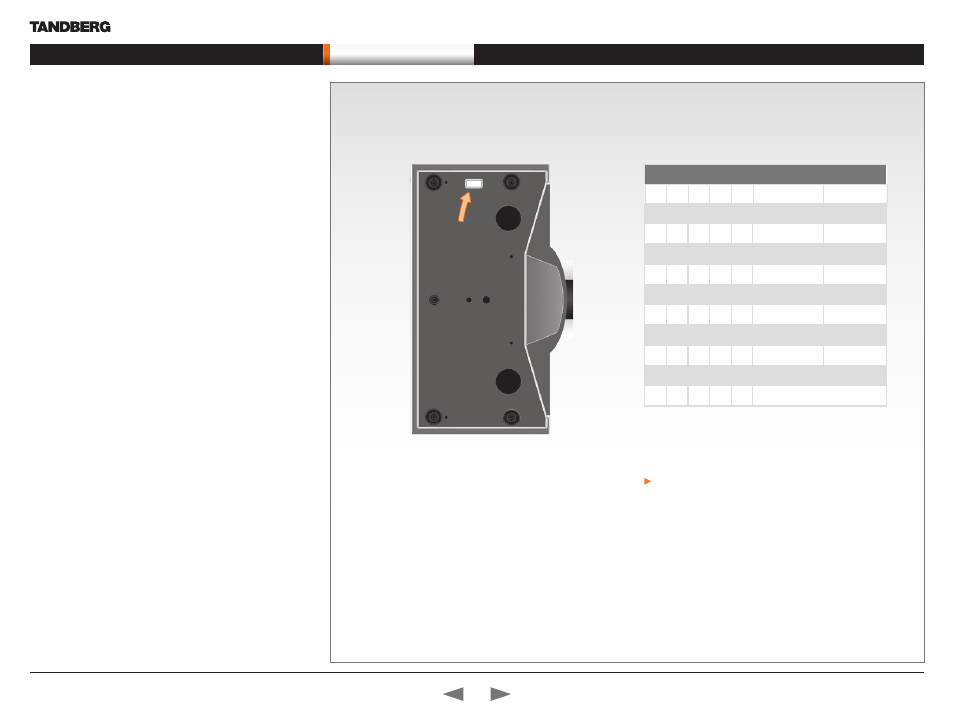

The DIP switch
1
0
Video output formats
This section describes the video output formats for the TANDBERG
PrecisionHD 1080p camera.
DIP switch settings for video output formats
The video output format for the camera is set by DIP switches. The
DIP switches are found on the bottom side of the camera.
The default setting is Auto. When using HDMI, the video output format
is automatically detected. See the table to the right.
Maximum resolution for HDMI is 1080p60.
Maximum resolution for HD-SDI is 1080p30.
Note that the camera must be switched off and on again to make the
new DIP switch settings effective.
Line voltage frequency
The camera will automatically detect the line voltage frequency when it
is 50 or 60 Hz. You may set the video output format to a specific value
(use the DIP switches) to override the auto frequency detection, if a
different line voltage frequency is an issue.
