PrecisionHD 1080p Camera User Guide
Remote control
Video mode selection
Method
The DIP switch selection has priority over the selection made by
the CAM_Video_Format command. If the DIP switch is set to auto,
the CAM_Video_Format setting will be used. If both are set to auto,
resolution will be controlled automatically by EDID.
DIP Switch
Switches are numbered 1 to 5. The VISCA column shows the value
that should be used when using the CAM_Video_Format command.
The DIP switches are only read by the SW at startup/boot. So if the
DIP switches are changed the camera must be rebooted.
If an undefined mode is selected, the output will default to auto.
1 2 3 4 5 Visca HDMI HD-SDI
0 0 0 0 0 x Auto*
0 0 0 0 1 0x0000 1080p25 1080p25
0 0 0 1 0 0x0001 1080p30 1080p30
0 0 0 1 1 0x0002 1080p50 720p50
0 0 1 0 0 0x0003 1080p60 720p60
0 0 1 0 1 0x0004 720p25 720p25
0 0 1 1 0 0x0005 720p30 720p30
0 0 1 1 1 0x0006 720p50 720p50
0 1 0 0 0 0x0007 720p60 720p60
0 1 0 0 1 0x0009 SW control
* Camera negotiates format over HDMI, HD-SDI tracks HDMI, and defaults to 1080p30 in
absence of HDMI sync.

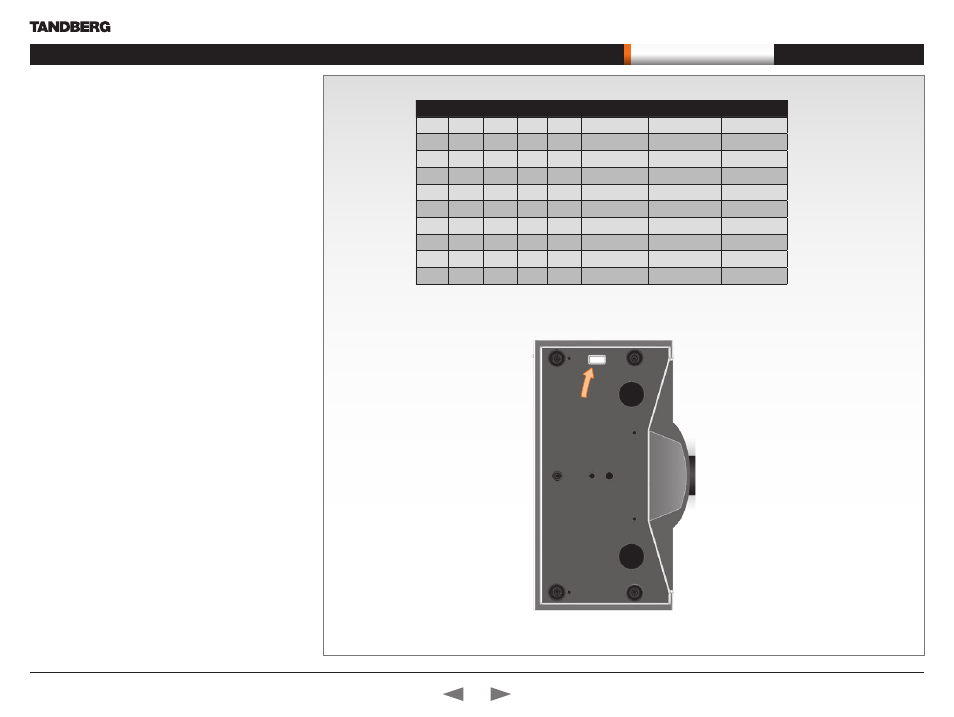

The DIP switch
1
0
