Battery Hatch Removal

Locate the Battery Compartment on the back of the Module.

While applying steady inward pressure on the center of the

Battery Hatch, rotate the Hatch Retaining Ring 10 degrees

clockwise using a flat blade screwdriver (Fig. 64) or a

Battery Hatch Tool.

Lift the Hatch Ring up and away from the Housing, or turn

the Module over to allow the Ring to drop out into your

hand.

Remove the Battery Hatch.

Battery Removal

Remove the Retaining Bar located across the lower portion of

the Battery (Fig. 65a).

Remove the Hatch O-ring. DO NOT use tools

Using care not to damage the Battery Contacts (Fig. 65b/c),

slide the Battery up and out of the Battery Compartment.

Inspection

Closely check all of the sealing surfaces for any signs of

damage that might impair proper sealing.

Inspect the Button, Lens, and Housing to ensure they are not

cracked or damaged.

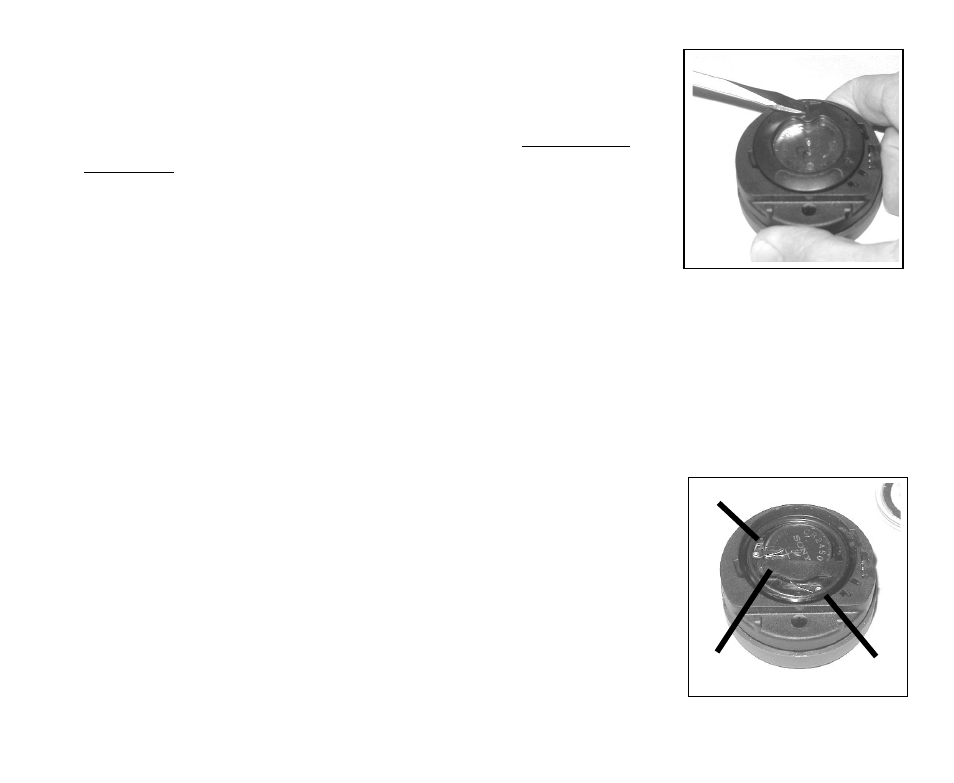

Fig. 64 - RING REMOVAL

Fig. 65 - HATCH REMOVAL
