Lightly lubricate the new Hatch O-ring with silicone grease

and place it on the inner rim of the Battery Hatch (Fig.

68). Ensure that it is evenly seated.

Slide the Hatch Retaining Ring, top portion first (small

opening), onto your thumb.

Carefully place the Battery Hatch (with O-ring) into posi-

tion on the rim of the Battery Compartment, then press it

evenly and completely down into place with your same

thumb.

Maintain the Battery Hatch securely in place and, using

your other hand, slide the Retaining Ring down off your

thumb and into position around the Battery Compartment.

The tabs on the Retaining Ring fit down into the two slots

located at the 2 and 8 o'clock positions.

Using your fingers, turn the Ring counter clockwise 5

degrees until the tabs engage (Fig. 69), then tighten it 5

more degrees by turning it counter clockwise using the

Battery Hatch Tool (Fig. 70).

While tightening the Retaining Ring, exert continuous

inward pressure on it until it is secured in the proper

position. A small symbol located on the Ring should be

aligned with the Locked symbol located on the Housing

(Fig. 70a)

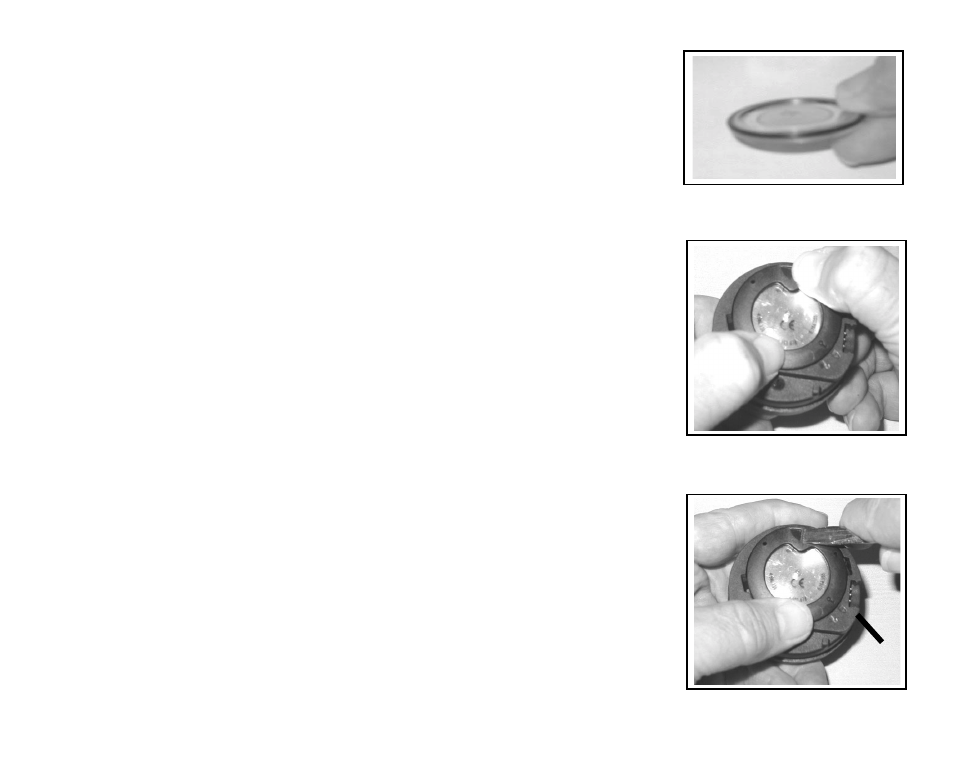

Fig. 68 - O-RING ORIENTA-

TION

Fig. 70 -TIGHTENING the

RETAINING RING

Fig. 69 -ENGAGING the

RETAINING RING TABS
