V400-H111/211
User’s Manual
Section 2
Installation and Connections

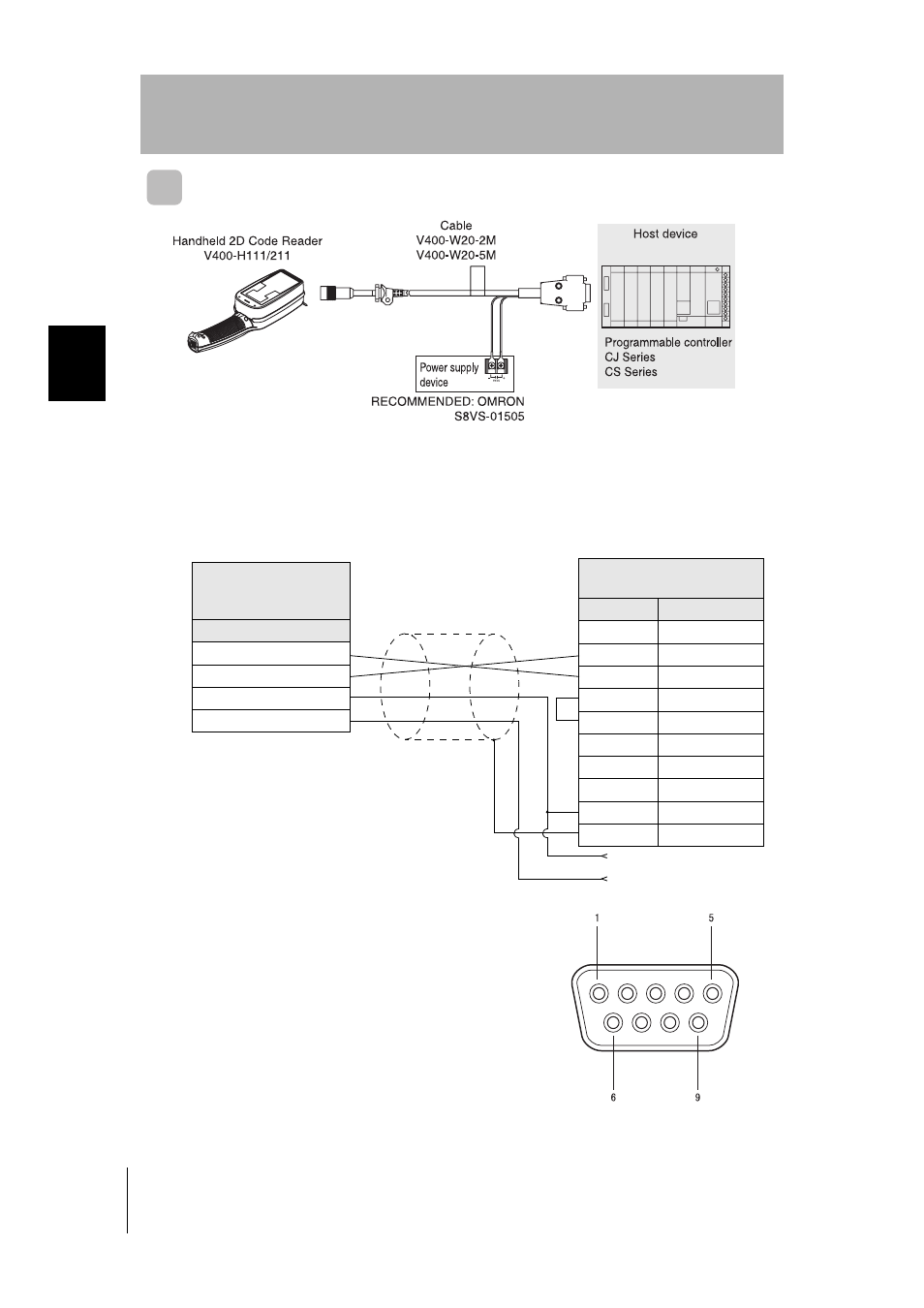

Connecting a Programmable Controller (V400-W20-2M/5M Cable)
● Connector
The connector used for V400-W20-2M and V400-W20-5M Cables is a D-sub, 9-pin
connector (male).
The connector is compatible with the connection port on OMRON CJ-series and CS-
series Programmable Controller.
2D code reader
V400-H111/211
Special round connector
Name
SD
RD
SG
+5 V
+5 V
0 V
Programmable Controller
D-sub, 9-pin
Name Pin No.
- 1
SD 2
RD 3
RS 4
CS 5
- 6
- 7
- 8
SG 9
Shield wire Connector cover
(View of mating section)
