21
V400-H111/211
User’s Manual
Sec
tion 2
Ca
bl
e
Section 2
Installation and Connections

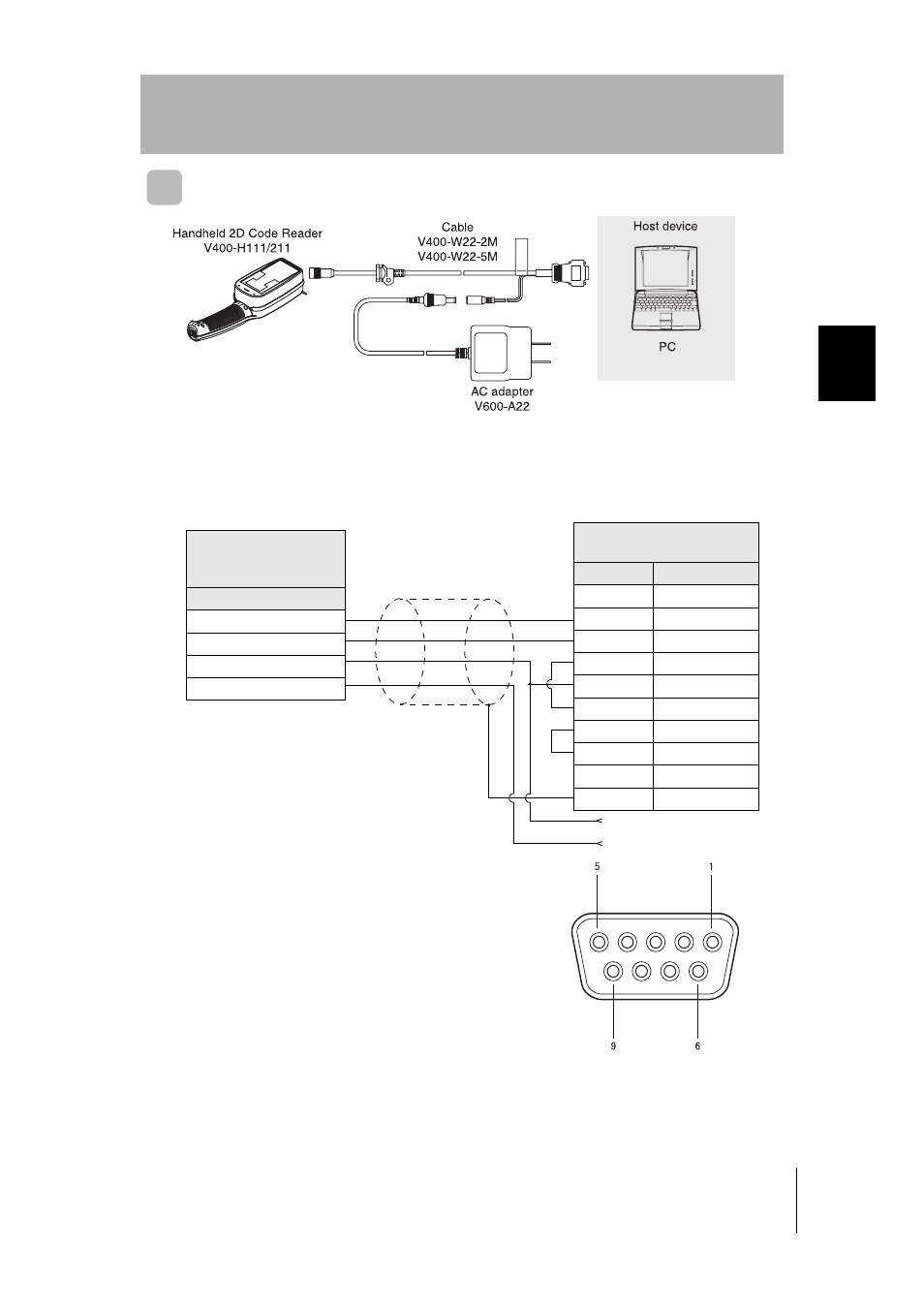

Connecting a Personal Computer (V400-W22-2M/5M Cable)
● Connector
The connector used for V400-W22-2M and V400-W22-5M cables is a D-sub 9-pin
connector (female).
The connector is compatible with the connection port on the IBM PC/AT or compatible.
2D code reader
V400-H111/211
Special round connector
Name
SD
RD
SG
+5 V
+5 V
0 V
IBM PC/AT or compatible
D-sub, 9-pin
Name Pin No.
- 1
RD 2
SD 3
ER 4
SG 5
DR 6
RS 7
CS 8
- 9
Shield wire Connector cover
(View of mating section)
