If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT
jacks, and connect all speakers and the subwoofer to the power amplifier. You can connect the powered subwoofer with
each jacks respectively. If you use one subwoofer, connect it to PRE OUT: SW1.

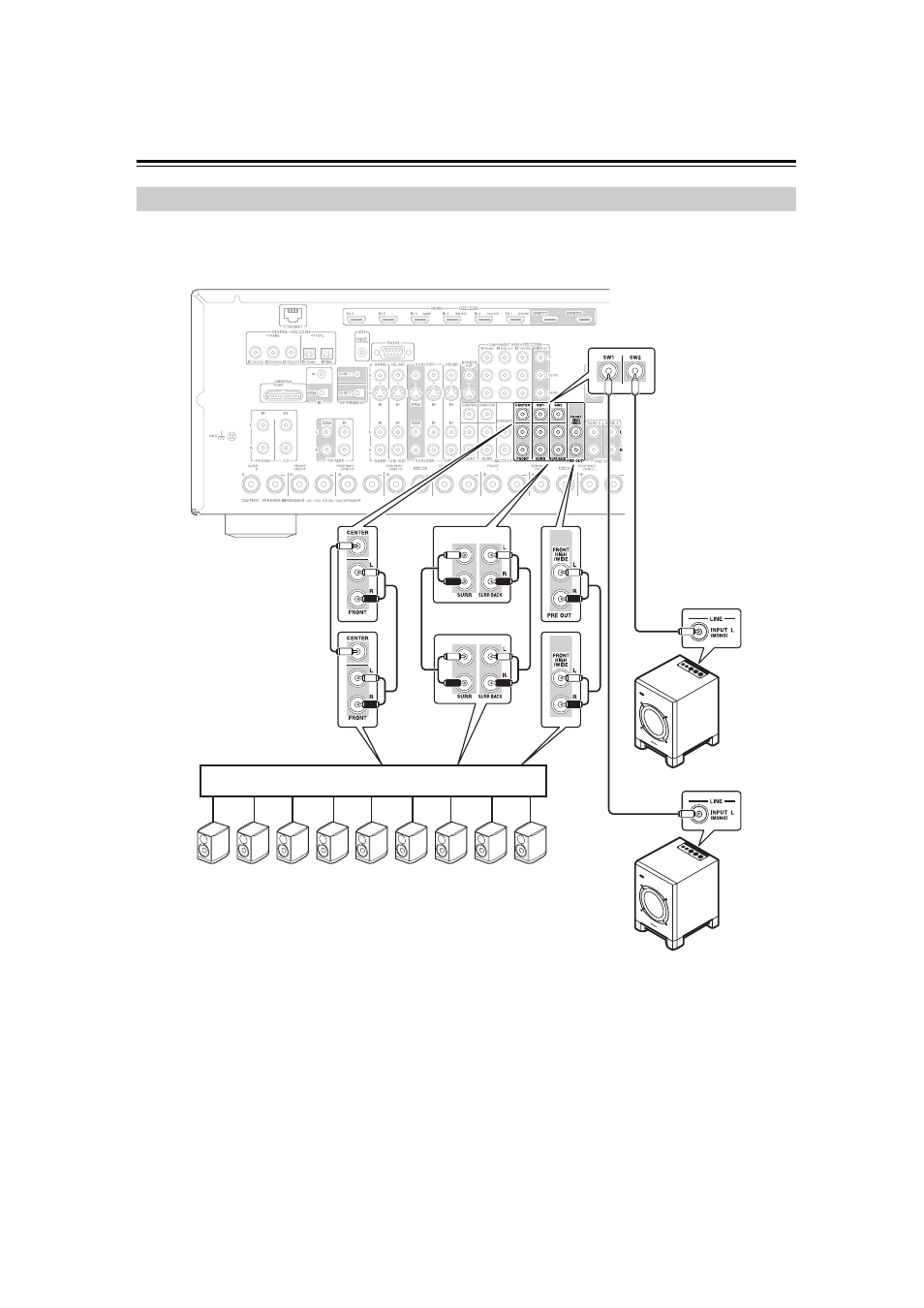

Connecting a Power Amplifier

Power amplifier

Powered subwoofer

See “Connecting Powered Sub-
woofers” on page 18 for more
information.

1. Front left speaker
2. Center speaker
3. Front right speaker
4. Surround left speaker
5. Surround right speaker
6. Surround left back speaker
7. Surround right back speaker
8. Front wide/Front high left speaker*
9 Front wide/Front high right speaker*

Note:

Specify “None” for the channel that you don’t want to output in the “Speaker Configuration” (page 90).
