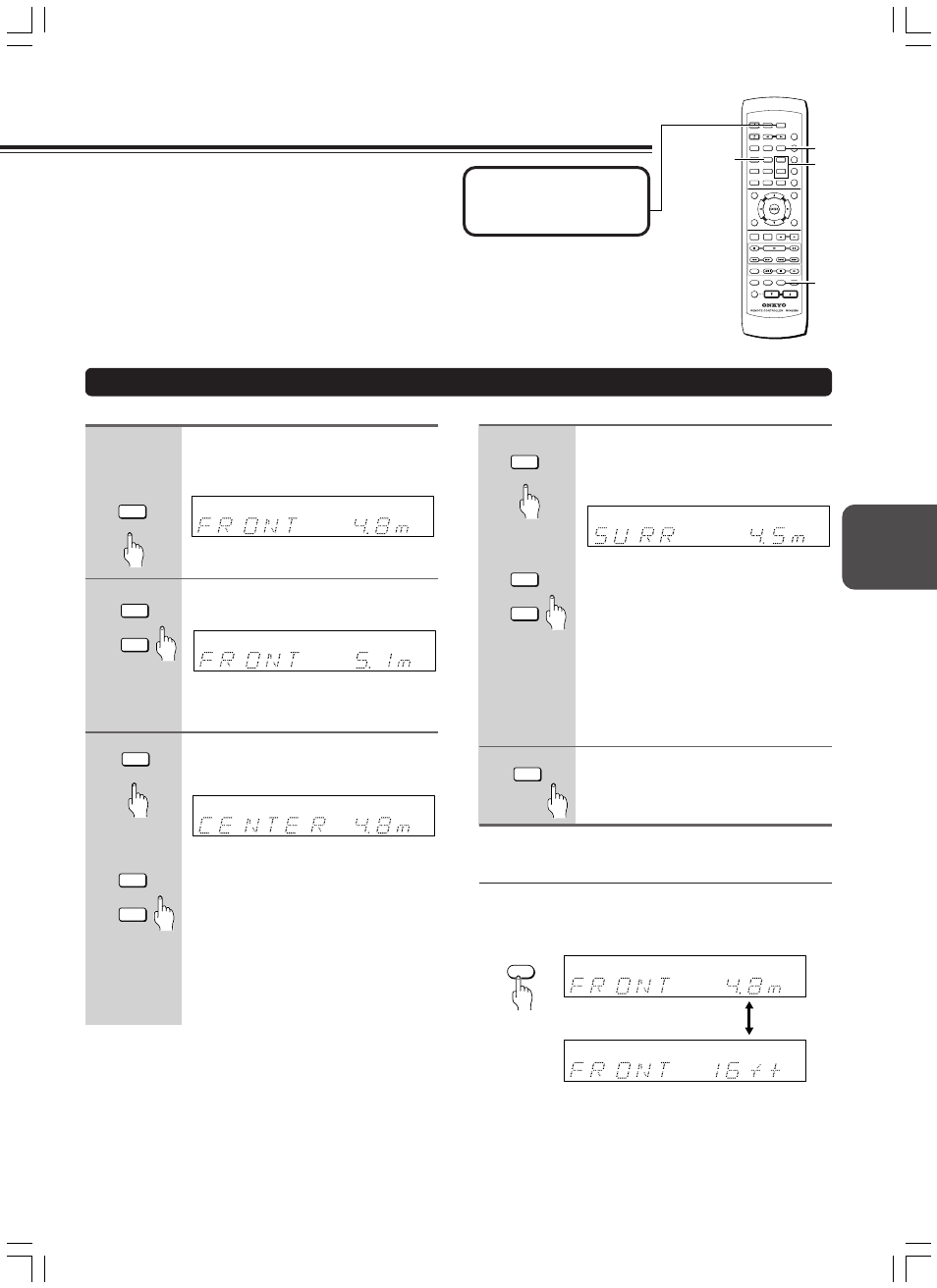

Press DISTANCE.
The distance entry display for the front left
and right speakers appears.
Press UP/DOWN to select the front
left and right speaker distance.
You can select a distance between 0.3 m
and 9 m (1 ft. and 30 ft.).
Press CH SEL, then press
UP/DOWN repeatedly to select the
center speaker distance.
You cannot enter the following distances:
• Distances longer than the distance set
for the front speakers.
• Distances shorter than the distance
obtained by subtracting “1.5 m (5 ft.)”
from the distance entered for the front
speakers.
Note
If you selected a speaker configuration with no
center speaker on the opposite page, this step
will be skipped.
1
2
Before starting the procedure below, measure the distances
from each speaker to the listening position.
For pair speakers such as front left and right speakers, the
distance from the listening position to one speaker should be
the same as the distance to the other.
In the procedure below, select the values which approximate
the actual distances.
Press CH SEL, then press
UP/DOWN repeatedly to select the
surround left and right speaker
distance.
You cannot enter the following distances:
• Distances longer than the distance set
for the front speakers.
• Distances shorter than the distance
obtained by subtracting “4.5 m (15 ft.)”
from the distance entered for the front
speakers.
Note
If you selected a speaker configuration with no
surround speakers on the opposite page, this
step will be skipped.
Press DISTANCE.
The normal display resumes.
■ Changing the units of measurement
You can change the units of measurement while setting the
distance. Press the DISPLAY button on the remote controller to
select between meters and feet.
Remote controller
only
3
4
5
