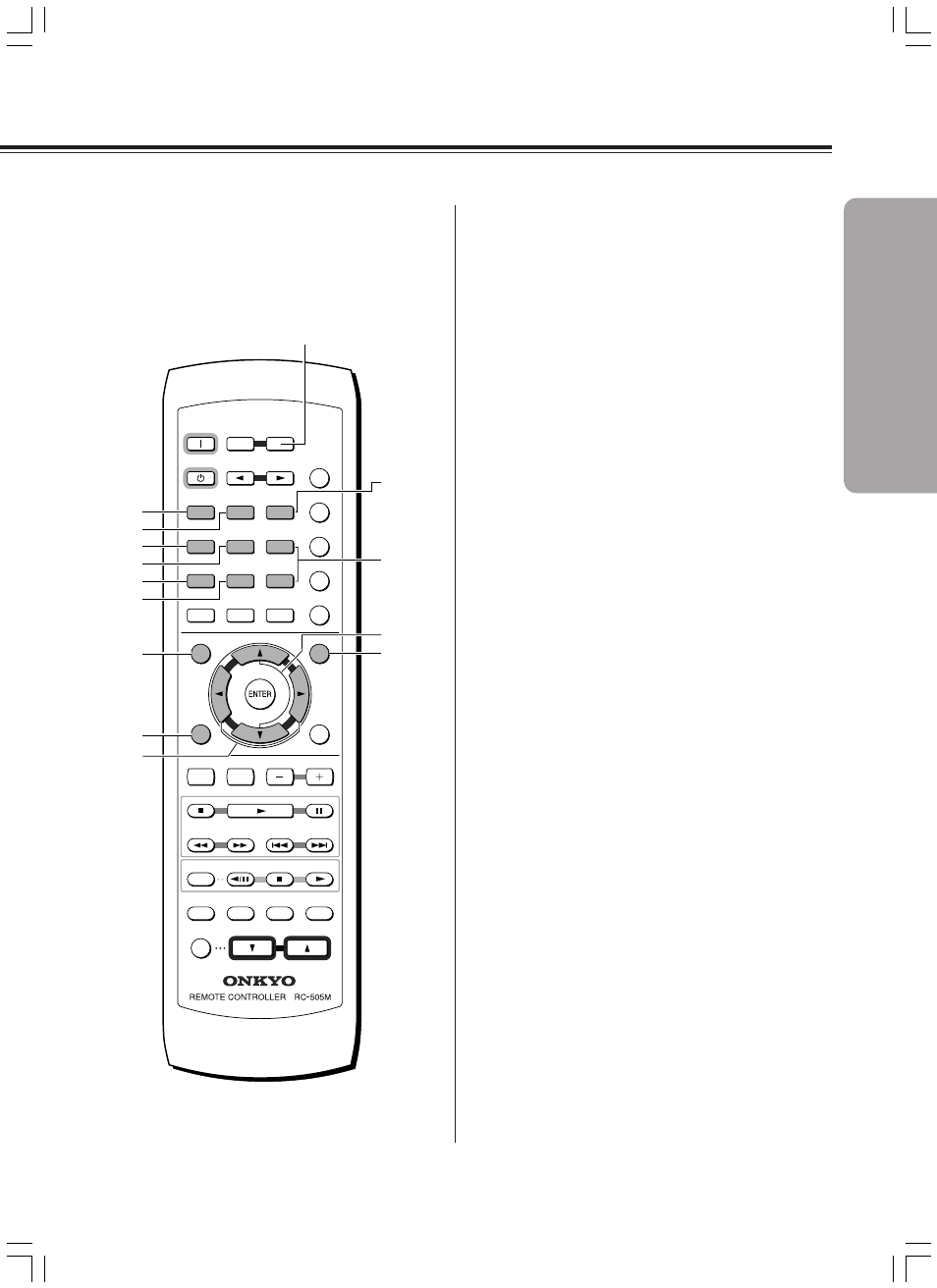

1 SP SETUP button [28]
Press to select the optimum speaker configuration.
2 TEST TONE button [30, 52]
Outputs a test tone for setting speaker levels.
3 SW MODE button [28]
Press to select the subwoofer mode.
4 DISTANCE button [29]
For setting the distances for each speaker.
5 IPM (Intelligent Power Management) button [27]
Activates the IPM function.
6 T-D SETUP [50]
For setting the T-D parameters.
7 CH SEL button [29, 30, 52]
Selects a speaker for changing the speaker output level.
8 UP/DOWN buttons [29, 30, 50, 52]
Press to adjust the value.
The following buttons must be pre-programmed (refer to
page 83)
9 TV POWER button
Turns on the TV.
0 TV MUTING button
Mutes the TV volume.
- TV CH +/– buttons
For selecting a TV channel.
= TV VOL +/– buttons
For adjusting the TV volume.
~ TV INPUT button
Press to select TV input.
TV/ SETUP TV/ SETUP
TEST TONE SP SETUP CH SEL
DISTANCE SW MODE UP
TV MUTING
TV
POWER
TV
INPUT
T-D SETUP IPM DOWN
TV VOL +
TV VOL -
9
TV CH - TV CH +
VOLUME
ON
STANDBY
INPUT SELECTOR
RECEIVER
COND.M LAST M FUNC.M
ANGLE AUDIO SUBTITLE
T-D/ ST LATE NIGHT
TOP MENU MENU
RETURN
DVD
SETUP
REPEAT
TUNING TUNER PRESET
MD / CDR / TAPE
A-B STEP/ SLOW
TIMER
CLEAR
PROGRAM
SEARCH
ACOUSTIC
CONTROL
SURROUND
RANDOM
--/---
MODE
SLEEP
MUTING
DIMMER DISPLAY CLOCK
MODE
+10 0 SHIFT
9
4 5 6
7 8
1 2 3
7
8
1
2
3
4
5
6
9
0
-
=
~
MODE TV/SETUP
Press MODE TV/SETUP to use the gray buttons
Other buttons have the same functions as when MODE RECEIVER
button is pressed.
