Parts of the Pump Motor 2
2-2
2.2 Left Side View

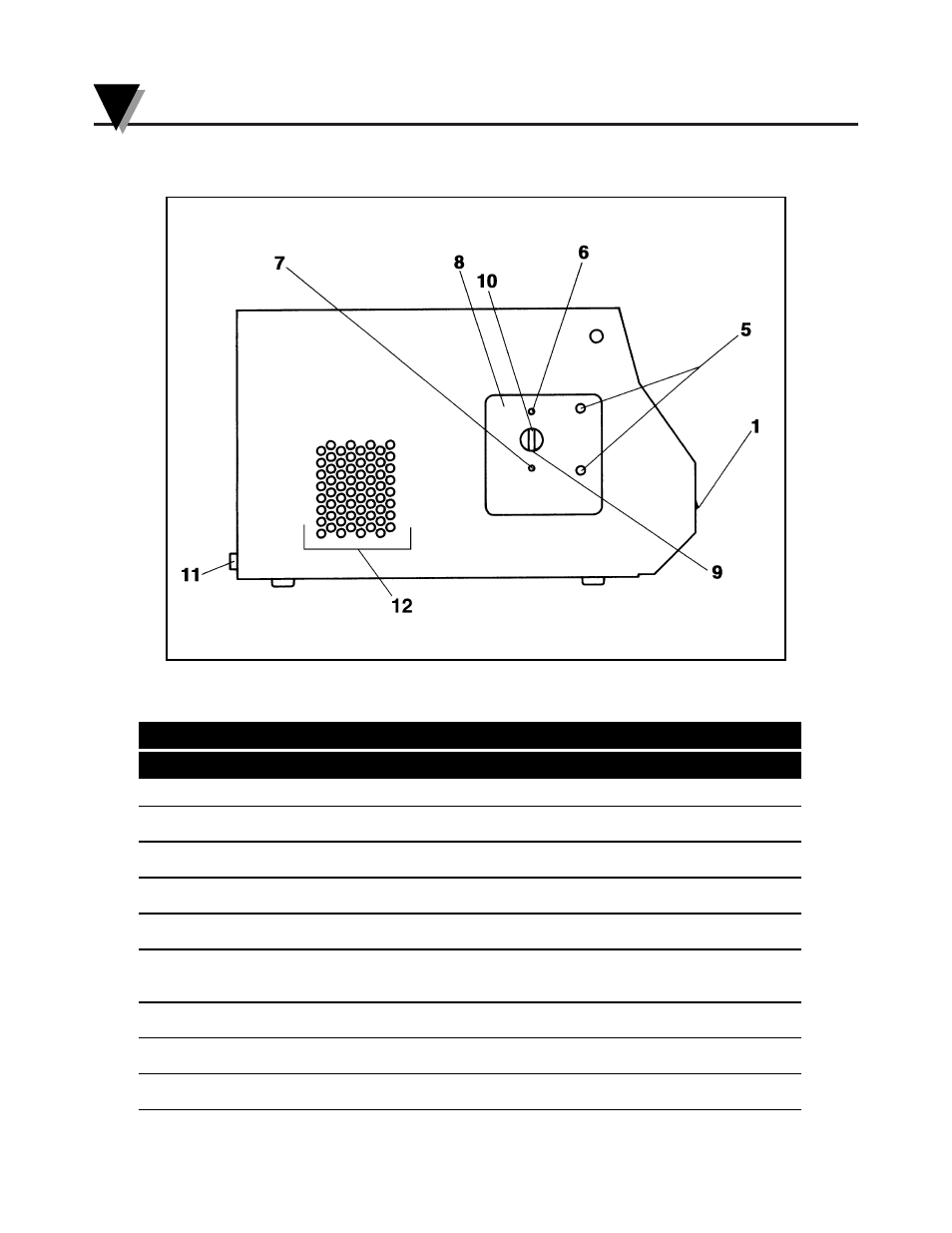

Figure 2-2. Left Side View of the Pump Motor
Table 2-2. Left Side View
Item Description Function
1 ON/OFF Switch Toggles the pump motor’s power on and off
5 Mounting Holes Provides attachment sites for pump(s)
6 Top Alignment Pin Aligns the pump head during installation
7 Bottom Alignment Pin Aligns the pump head during installation
8 Face of Motor Provides a surface for attaching pump(s)
9 Motor Shaft Turns the rotor assembly of pump(s)
during pumping
10 Groove of Motor Shaft Holds the back tab of pump(s) rotor shaft
11 Fuse Protects the unit from an overcurrent
12 Vent Holes Allow for cooling of pump motor
