Connections
—Continued

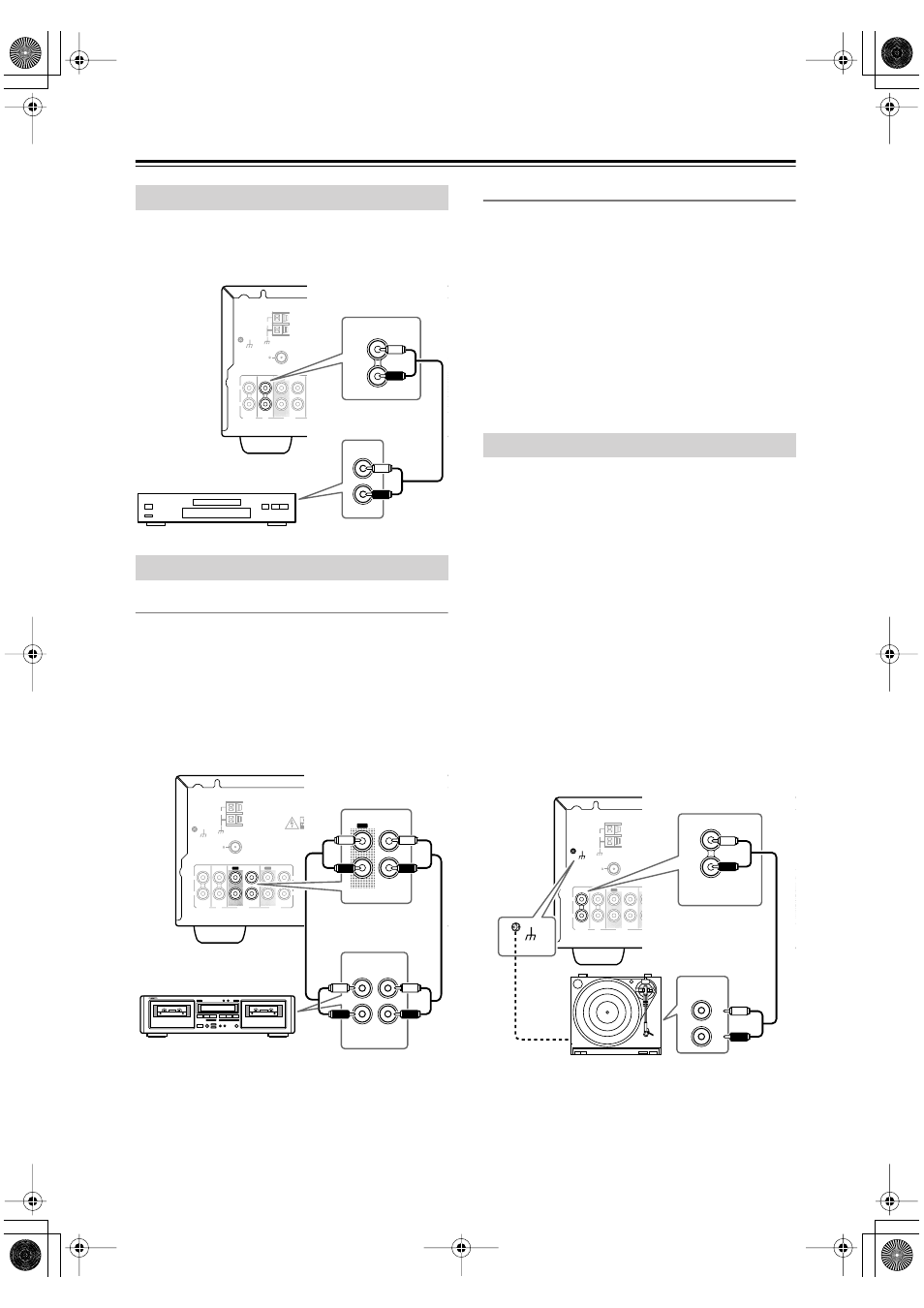

Use an RCA audio cable to connect the TX-8011’s CD
IN L/R jacks to the analog audio output jacks on your
CD player, as shown.
TAPE 1
Use an RCA audio cable to connect the TX-8011’s
TAPE 1 IN L/R jacks to the cassette recorder’s output
jacks, and use another audio cable to connect the
TX-8011’s TAPE 1 OUT L/R jacks to the cassette
recorder’s input jacks, as shown.
Tip:
• You can connect other types of recorders (CD
recorder, etc) to the TAPE 2 IN/OUT jacks.
TAPE 2
Use an RCA audio cable to connect the TX-8011’s
TAPE 2 IN L/R jacks to the cassette recorder’s output
jacks, and use another analog audio cable to connect the
TX-8011’s TAPE 2 OUT L/R jacks to the cassette
recorder’s input jacks, as shown.
Connecting your 3-head tape recorder to the TAPE 2
IN/OUT jacks, and pressing the [TAPE 2 MONITOR]
button allows real-time monitoring while recording.
Tip:
• Alternatively, you could connect a graphic equalizer to
the TAPE 2 IN/OUT jacks.
The TX-8011’s PHONO IN L/R jacks are for use with
moving magnet (MM) type cartridges. Use an RCA
audio cable to connect the TX-8011’s PHONO IN L/R
jacks to the audio output jacks on your turntable, as
shown.
Notes:
• If your turntable has a ground wire, connect it to the
GND screw on the TX-8011. With some turntables,
connecting the ground wire may cause hum, in which
case it should be disconnected.
• If your turntable has a moving coil (MC) type car-
tridge, you’ll need a commercially available MC head
amp. Connect your turntable to the head amp, and
connect the head amp to the TX-8011’s PHONO IN L/
R jacks.
• You can also use a phono equalizer to connect a turn-
table with an MC-type cartridge. In this case, see the
phono equalizer’s manual for details.
Connecting a CD Player
Connecting a Cassette Recorder
