Connections —Continued
Adjusting the Position of the FM Indoor Antenna
The FM indoor antenna is for indoor use only. Extend the antenna fully and point it in various directions to find the best
reception. Secure it in that position with thumbtacks or something similar.
If the reception is not very good with the supplied FM indoor antenna, use an outdoor antenna.
Adjusting the Position of the AM Indoor Antenna
The AM loop antenna is for indoor use only. Position it to obtain the best radio reception. Put it as far away as possible
from the TX-8011, your TV, speaker cables, and power cords.
If the reception is not very good with the supplied AM loop antenna alone, use an outdoor AM antenna as well.
Note:
Connect both wires of the AM loop antenna to the AM push terminals, as shown. (The antenna’s wires are not polarity
sensitive, so they can be connected either way around).

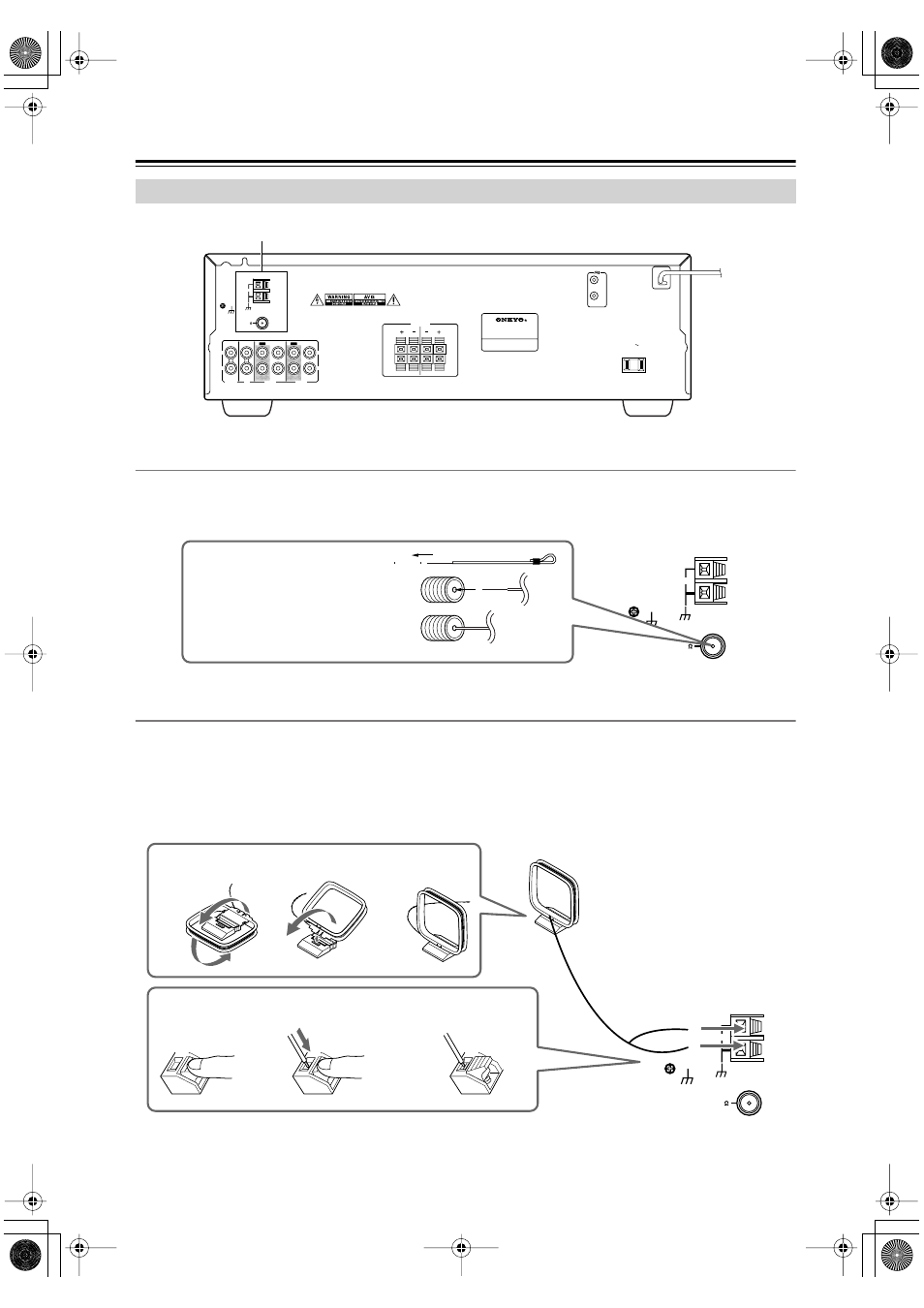

Connecting the Supplied FM & AM Indoor Antennas
ANTENNA
AM
GND
FM 75
TAPE 1 TAPE 2 CD
L
R
L
R
IN IN OUT OUT IN IN
PHONO
SPEAKERS
A
B
A
B
L R
REMOTE
CONTROL
AC OUTLET AC 120V 60Hz SWITCHED 120W 1A MAX.
ANTENNA
ANTENNA
AM
GND
FM 75
1 Strip the insulation from
the end of the wire.
2 Fully insert the bare wire.
ANTENNA
AM
GND
FM 75
AM indoor antenna
Rotate the outer
frame of the antenna. Insert the tab
into the hole. Extend the
antenna cord.
Push the lever. Insert the wire
into the hole. Release the lever to
secure the wire.
