Connections
Before you connect your speakers, read the following:
• Disconnect the power cord from the wall outlet.
• Read the instructions supplied with your speakers.
• Pay close attention to speaker wiring polarity. In other
words, connect positive (+) terminals only to positive
(+) terminals, and negative (–) terminals only to nega-
tive (–) terminals. If you get them the wrong way
around, the sound will be out of phase and will sound
odd.
• The impedance of each speaker connected to this unit
must be no lower than 4 ohms. If you’re using only
speakers A or speakers B, the minimum speaker
impedance is 4 ohms. If you’re using both speakers A
and speaker B, the minimum speaker impedance is 8
ohms. If you use speakers with a lower impedance,
and use the amplifier at high volume levels for a long
period of time, the built-in protection circuit may be
activated.
• Unnecessarily long or very thin speaker cables may
affect the sound quality and should be avoided.
• Be careful not to short the positive
and negative connections. Doing so
may damage the TX-8011.
• Don’t connect more than one cable
to each speaker terminal. Doing so
may damage the TX-8011.
• If you want to connect a single speaker instead of a
pair, connect it to either the left or right speaker termi-
nals, not both.
Maker sure that the speaker connectors are gripping the
bare wires, not the insulation.

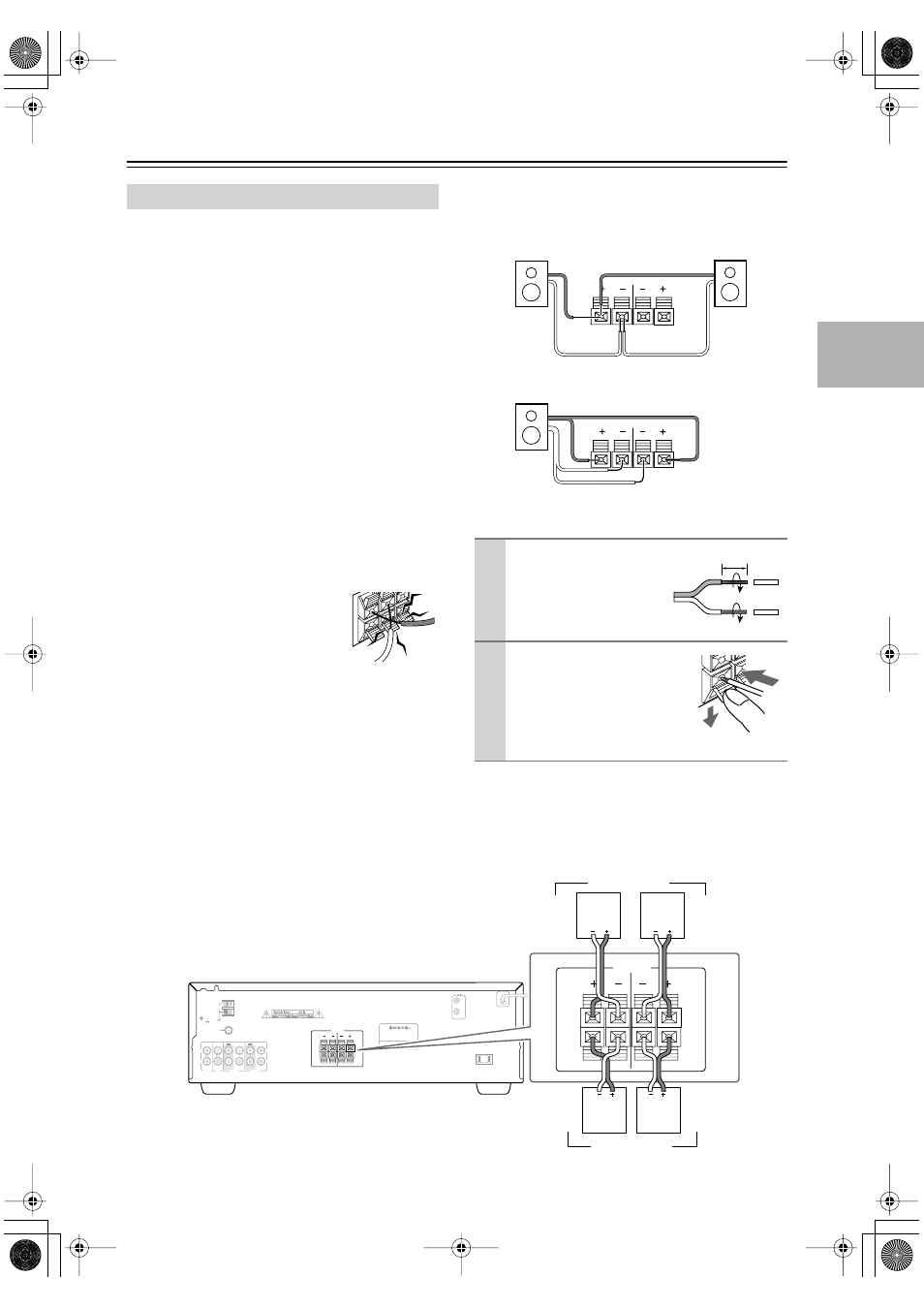

The following illustration shows which speakers should be connected to which terminals.
Connecting Speakers
NO!
A
B
1 Strip 3/8" (10 mm) of
insulation from the
ends of the speaker
cables, and twist the
bare wires tightly.
2 Push the lever to open the
hole, insert the bare wire
into the hole, and then
push the lever again to
close the hole, thereby
securing the wire.
A A
L R
A A
L R
NO!
NO!
3/8" (10 mm)
ANTENNA
AM
GND
FM 75
TAPE 1 TAPE 2 CD
L
R
L
R
IN IN OUT OUT IN IN
PHONO
REMOTE
CONTROL
AC OUTLET AC 120V 60Hz SWITCHED 120W 1A MAX.
SPEAKERS
A
B
A
B
L R
Speaker set A
CAUTION:
SPEAKER IMPEDANCE A or B: 4 ohms min./speaker
A + B: 8 ohms min./speaker
SPEAKERS
A
B
A
B
L R
Left
speaker
Right
speaker
Speaker set B
Right
speaker
Left
speaker
