Onkyo HT-R490 - Manual (Page 27)

27
Input source signal format Analog PCM* 4 Dolby Digital* 5 dts MULTI CH* 6
Source software Tape, Record, CD, Audio DVD, Video DVD, LD, CD, LD, Video DVD
Tuner Video DVD Digital satellite Video DVD
Listening mode broadcast
STEREO* 1
● ● ● ●
PRO LOGIC II* 2
● ● ●
DOLBY D
●
DTS
●
ORCHESTRA* 3
● ●
UNPLUGGED* 3
● ●
ALL CH ST* 3
● ●
MULTI CH ●

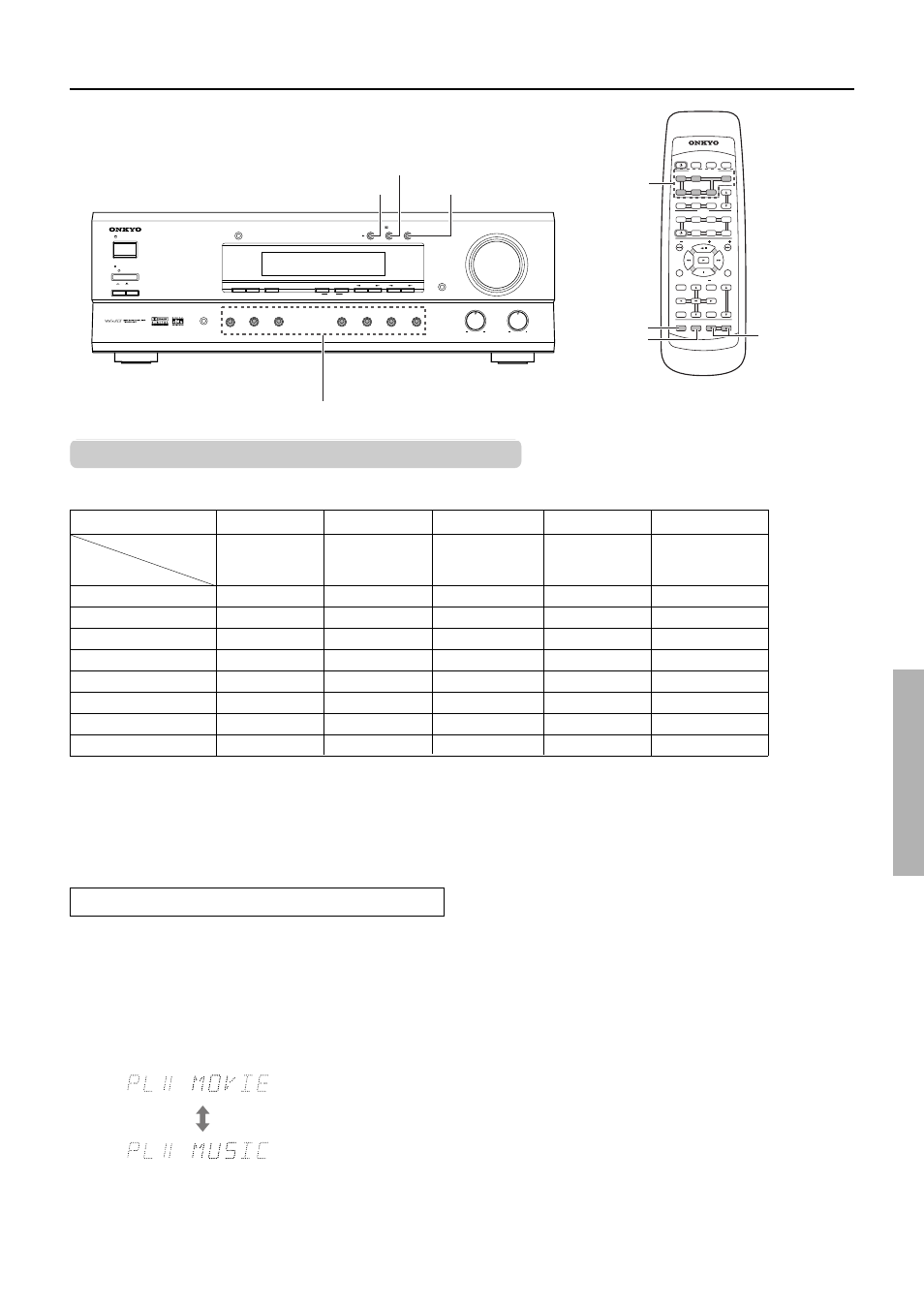

Relationship between input sources and surround modes
The surround modes that can be selected are variable depending on the signal formats employed with the input sources.
Input selector
RC-446M
REMOTE CONTROLLER
STANDBY/ON
OFF ON
POWER
MASTER VOLUME
BASS TREBLE
AV RECEIVER HT-R490
FM AM C D TAPE VIDEO 1 DVD
A B SPEAKERS
DIMMER
SURROUND DTS /
VIDEO 2
VCR
AUDIO SELECTOR
LISTENING MODE
DSP STEREO DISPLAY
STANDBY
SP SEL TUNING PRESET MEMORY SW MODE DIGITAL INPUT FM MODE
CLEAR
INPUT SELECTOR
SLEEP DIMMER DISPLAY
CD TAPE TUNER
D V D VIDEO 1 VIDEO 2
SUR MODE SW MODE AUDIO SEL TUNER PRESE T
STANDBY/ ON
DISC MUTING
VOLUME
TOP MENU MENU
CH SEL
RETURN SETUP
TEST TONE LEVEL
E N T E R
LEVEL 5/∞
TEST TONE
INPUT SELECTOR
CH SEL
DSP STEREO
Ÿ/DTS SURROUND
CH
TV/ VCR
CH T V VOL
T V VOL
MODE TV CABLE SATELLITE VCR
STANDBY/ ON DVD CD TAPE
*1 Only STEREO can be selected when SP SEL is set to 2 ch or when SPEAKERS B is selected.
*2 When SP SEL is set to 3 ch, “3 ST” is displayed in place of “PL II”.
*3 These modes cannot be selected when SP SEL is set to 2 ch or 3 ch.
*4 Only STEREO can be selected when the PCM source has been recorded with a sampling rate 96 kHz.
*5 Only DOLBY D (PL II if the source is a 2-channel source) or STEREO can be selected when Dolby Digital surround audio is reproduced.
*6 The surround mode cannot be selected when MULTI CH is selected.
Selecting DOLBY PRO LOGIC II surround
1. Press an input selector button to select the
desired sound source.
2. Press the
Ÿ/DTS SURROUND button repeatedly
to select DOLBY PRO LOGIC II.
The selected mode appears in the display. Each time you press
the button, the surround mode changes as follows:
3. Play the selected sound source.
You can adjust the level of each speaker.
1. Press the CH SEL button on the remote controller to select a
speaker.
2. Press the LEVEL
5/∞ buttons on the remote controller to
raise or lower the level.
• The speaker levels set here are cleared when this unit is set to
STANDBY. (The speaker levels return to the levels set using
the test tone.)
• When the TEST TONE button on the remote controller is
pressed after the above adjustment, the set levels will become
the levels adjusted using the test tone by overwriting the
existing ones.
To enjoy Surround mode
