Manual No. 25-ULNFT2100-01; Mar, 2005 NFT 2100 CCD Fixed Mount Barcode
Scanner
Page 5
35
.4
R
±10º
φ
14
.5

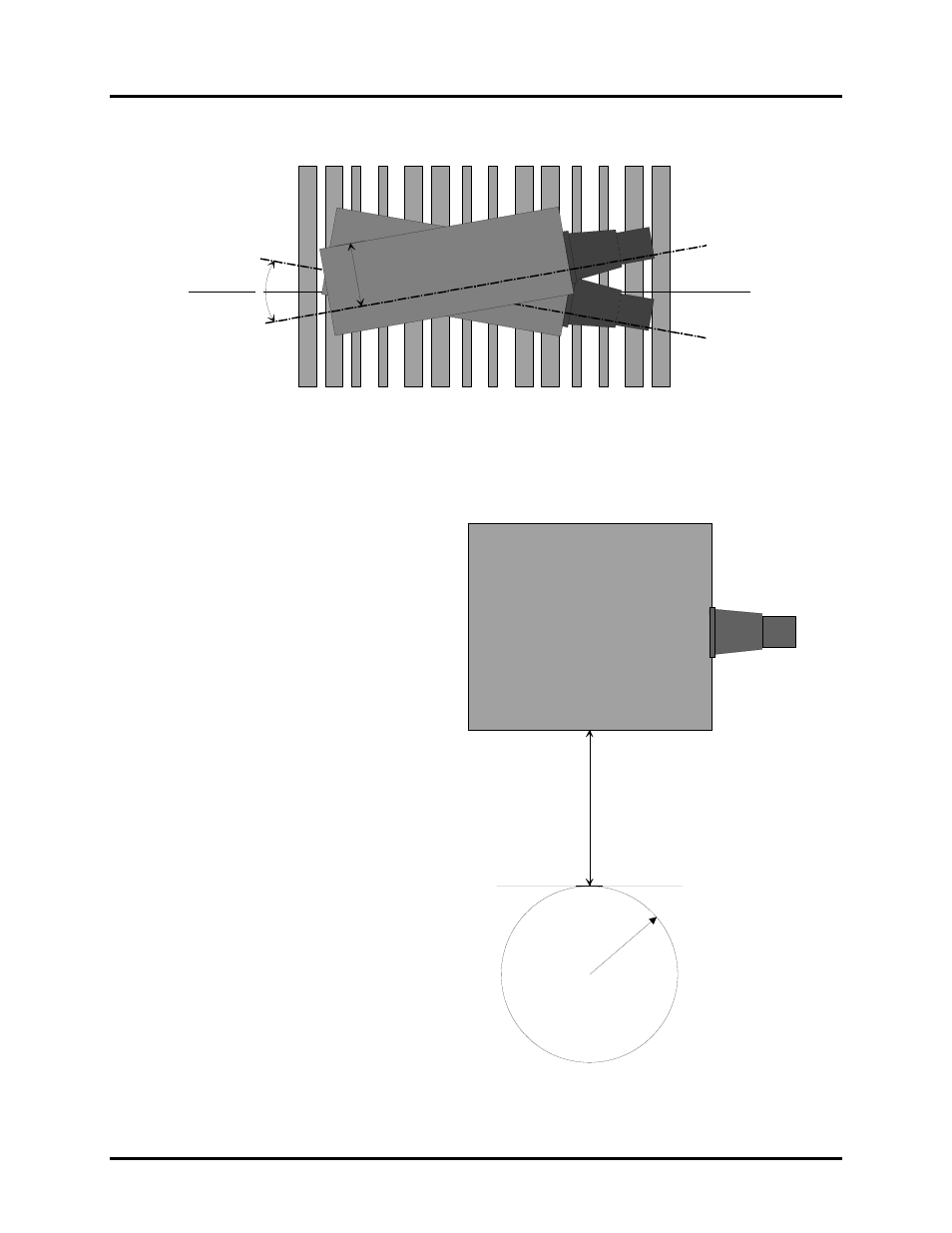

Tilt (Rotation)
Specified operation ( θ) ±10º or less. (Barcode aspect ratio must allow the field of
view to cover all bars). (Recommended operation at 0º)
Curvature
EAN-8 / UPC-E: R = >20 mm (0.8”) or
EAN-13 / UPC-A: R => 30 mm (1.2”).
Where: PCS 0.9, h = 35.4 mm (1.4")
Skew=13 °, Pitch=0°, Tilt=0°
