Connecting the HT-R520 —Continued
Video Connections
• Use an S-Video cable to connect the HT-R520’s
S VIDEO VIDEO 1 OUT to an S-Video input on your
recording VCR.
OR
• Use a composite video cable to connect the
HT-R520’s VIDEO VIDEO 1 OUT to a composite
video input on your recording VCR.
Audio Connections
• Use an analog audio cable to connect the HT-R520’s
AUDIO VIDEO 1 L/R OUTs to the audio inputs on
your recording VCR.
This illustration shows how to connect a VCR for record-
ing from a TV or another VCR.
Notes:
• The HT-R520 must be turned on for recording.
Recording is not possible while it’s in Standby mode.
• If you want to record directly from your TV or play-
back VCR without going through the HT-R520, con-
nect your TV/VCR’s audio and video outputs directly
to your recording VCR’s AV inputs. See the manuals
supplied with your TV and VCR for details.
• Video signals connected to composite video inputs
can only be recorded via composite video outputs. If
your TV and video playback components are con-
nected via composite video, you must connect your
recording VCR via composite video as well. Similarly,
video signals connected to S-Video inputs can only be
recorded via S-Video outputs. If your TV and video
playback components are connected via S-Video, you
must connect your recording VCR via S-Video as
well.

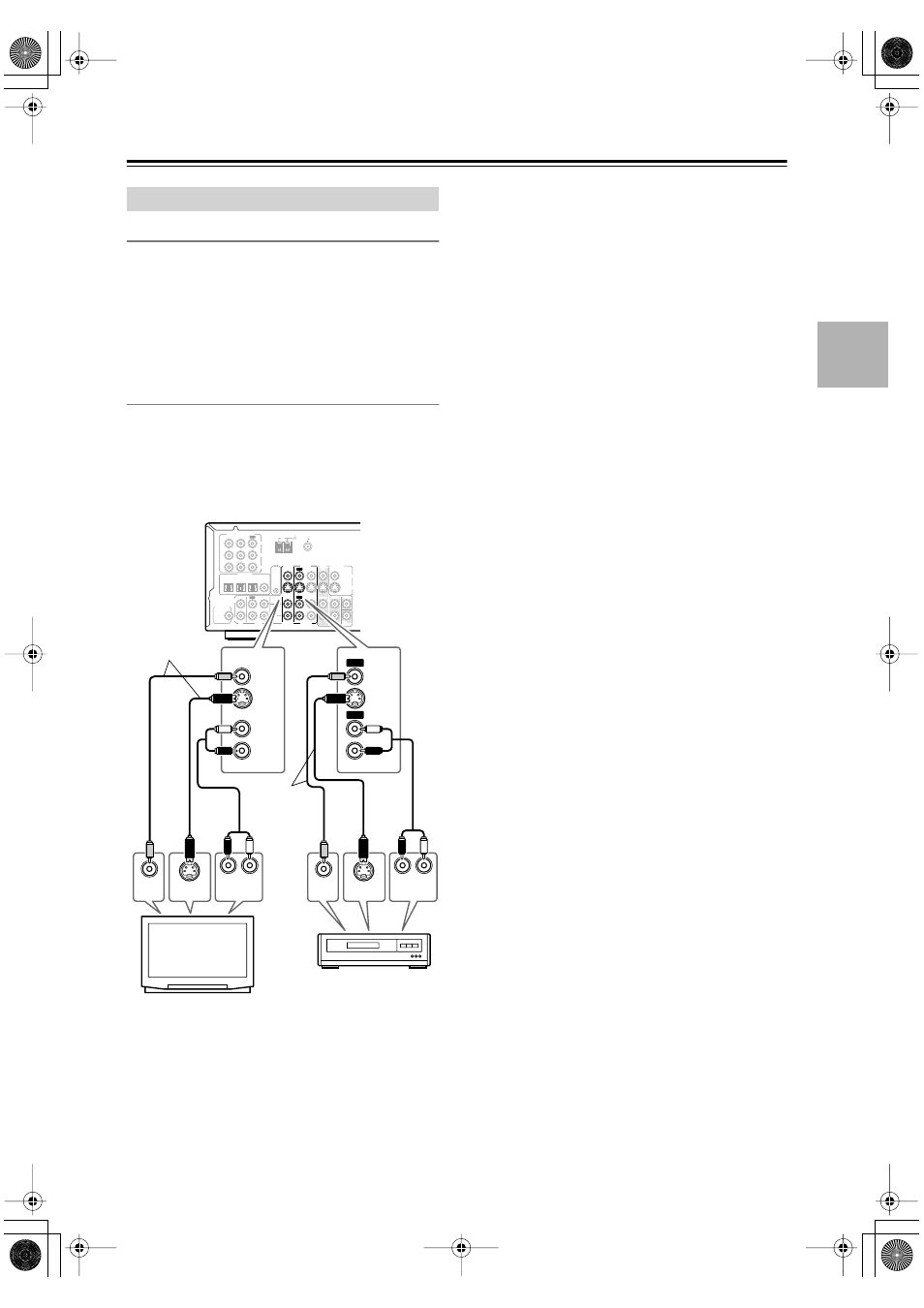

Connecting a VCR for Recording
