Manual-4

Output
Page,
where [x]
indicates
the Output
currently
being
edited.

Limiter gain reduction is
indicated in [y]dB when
the Limiter is active.

Out[x]:[y]

IN1

IN2

IN3

IN4

IN5

IN6

MST

LIM

Copy

+6

-3

+6

Off

+6

-25

+0

Max

Sets the Input Level of Inputs 1-6
mixed at the Output. Range is +6
dB to -25 dB and Off.

Copy

parameters of current page to clipboard.

Paste

contents of clipboard to current page.

Recall

[n] loads current page parameters from

Memory[n], where [n]=Memory 1-24.

Sets the Master
Level reduction for
Output[x]. Range is
0 dB to -59 dB and
Off.

Sets the
Limiter
Threshold
for Output
[x].

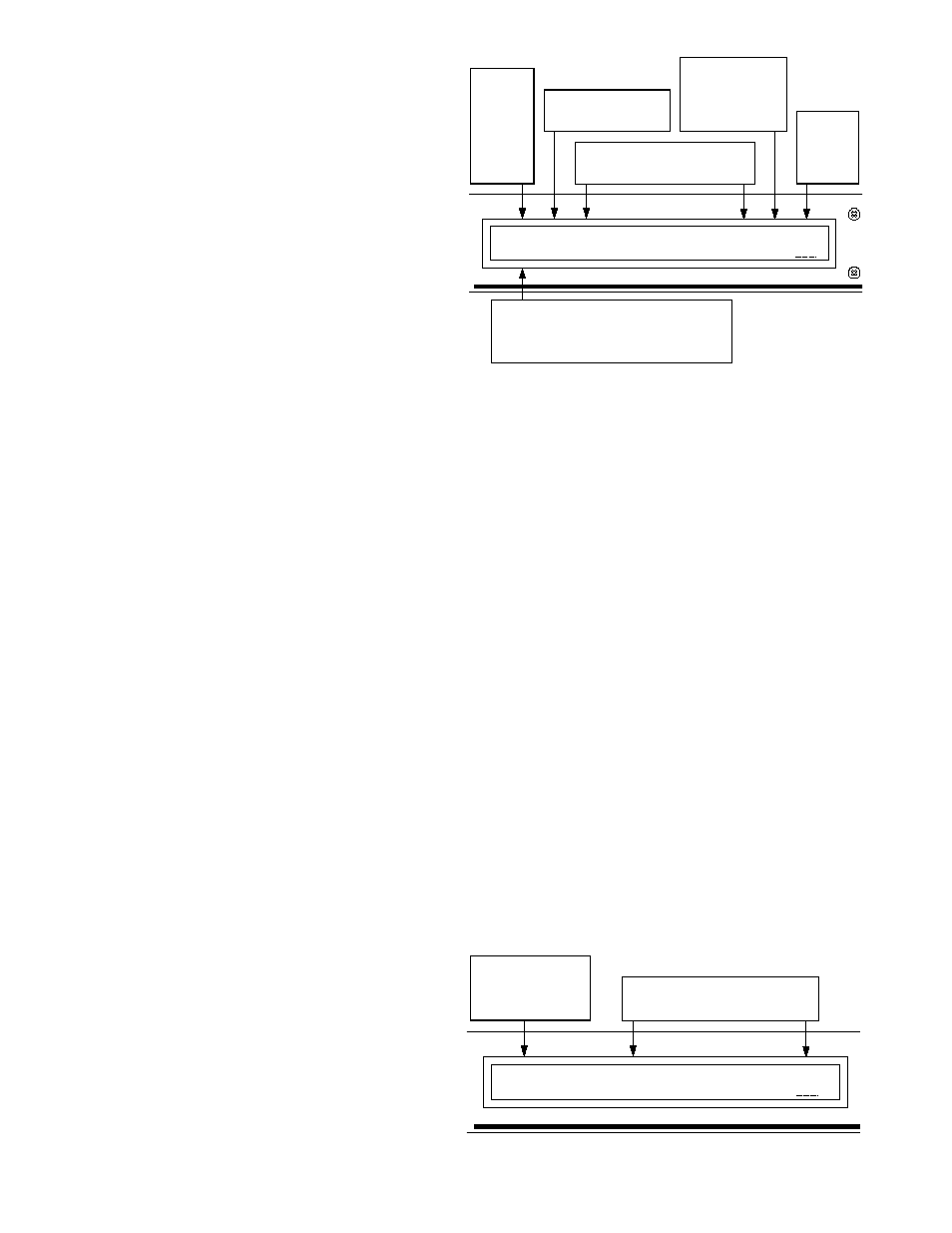

Figure 1. Output Edit Page

Output to Group
Page, where Outputs
are assigned to 1 of 6
Groups.

Out->Grp

Out1

Out2

Out3

Out4

Out5

Out6

Copy

G1

Off

G6

G4

G3

G2

Out1 through Out6 may be assigned
to 1 of 6 Groups or set to Off.

Figure 2. Output to Group Edit Page

OPERATION

The User Interface

All SRM 66 programming is done with the Data wheel

and the front panel buttons using one of the eleven LCD
pages. Each page consists of the page name, multiple param-
eter fields and possible Command fields and status indicators.

To navigate between pages use the Next Page (>>) and

Previous Page (<<) buttons. Within a page the Next (>) and
Previous (<) buttons move the cursor to each field.

Above each parameter field is a label indicating its

function. Once the cursor is positioned beneath the desired
parameter field, the Data wheel is turned clockwise to
increase the value and counter-clockwise to decrease it. To
quickly jump to extreme maximum or minimum values, hold
down the Shift (EXE) Button and press either the MAX (>>)
or MIN (>) buttons. For added safety, executing MAX for the
Input mix levels sets the level to unity or zero gain, not +6 dB
which is the actual maximum.

Command Fields

Most pages contain a Command field. Here you can Copy

settings from the current page to the clipboard, Paste settings
from the clipboard, Recall page settings from memory, and
Zero all page settings.

To access a command, position the cursor under the

Command field, use the Data wheel to select the desired
command (not all commands are available in all pages) and
press the EXE button.

Clipboard

There are actually three separate clipboards in the SRM

66: one for an Output’s settings (shared by all Outputs), one
for the Remote to Group settings, and one for the Output to
Group settings. Using the clipboard can greatly simplify and
speed setting up multiple Outputs or multiple Memories. The
clipboard settings are lost whenever power is removed.

Status Indicators

Next to the page name in many pages is a Status Indicator.

In the Output pages it shows the current amount of Limiter
gain reduction or startup muting. If there is no gain reduction
being applied, the field is blank. On the Memory page an
asterisk (*) appears in this field whenever the current working
Memory does not match the last recalled Memory.

Programming the SRM 66

Programming each SRM 66 Output requires only one edit

page as in Figure 1. Note that unique Input mix levels are
possible for each Output. All adjustments are in 1 dB steps.

The following parameters define each Output:
IN1 Input one mix Level +6 dB to -25 dB, Off
IN2 Input two mix Level +6 dB to -25 dB, Off
IN3 Input three mix Level +6 dB to -25 dB, Off
IN4 Input four mix Level +6 dB to -25 dB, Off
IN5 Input five mix Level +6 dB to -25 dB, Off
IN6 Input six mix Level +6 dB to -25 dB, Off
MST Master mix Level +0 dB to -59 dB, Off
LIM Limit Threshold Max (0 dB) to -28 dB re: clip point.

Output Groups

The SRM 66 uses Output Groups to link the attenuation

level and Limiter gain reduction of one or more Outputs. Any
one of the seven possible SR 1L remote controls can then be
assigned to control an Output Group Level. The SRM 66 can
also assign any number of the six possible Output Groups to a
Master Group. Any number of the seven possible SR 1L
Remotes can then be assigned to control the Master Group
Level. Understanding and utilizing the power of Groups is
essential to harness the power and versatility of the SRM 66.

The Output to Group Assign page is shown in Figure 2.

Outputs can be assigned to 1 of 6 Output Groups or no Group
(off). For example, a stereo Output pair would typically be
assigned to the same Output Group in order to ensure that the
two stereo Outputs limit together and are controlled by the
same Output Group Level. Output Group Levels may be
controlled from the Group Level page shown in Figure 3 or
by any SR 1L remote assigned to the Group on the Remote to
Group page shown in Figure 5.

The Group to Master Remote assignment page is shown in

Figure 4. Any number of the six (6) possible Output Groups
can be assigned to the Master Group. The Level of all Output
Groups assigned to the Master Group can be controlled by the
MST control on the Group Level page shown in Figure 3 or
by any SR 1L remote assigned to the Master Group on the
Remote to Group Assign page shown in Figure 5. This feature
