INSTALLATION

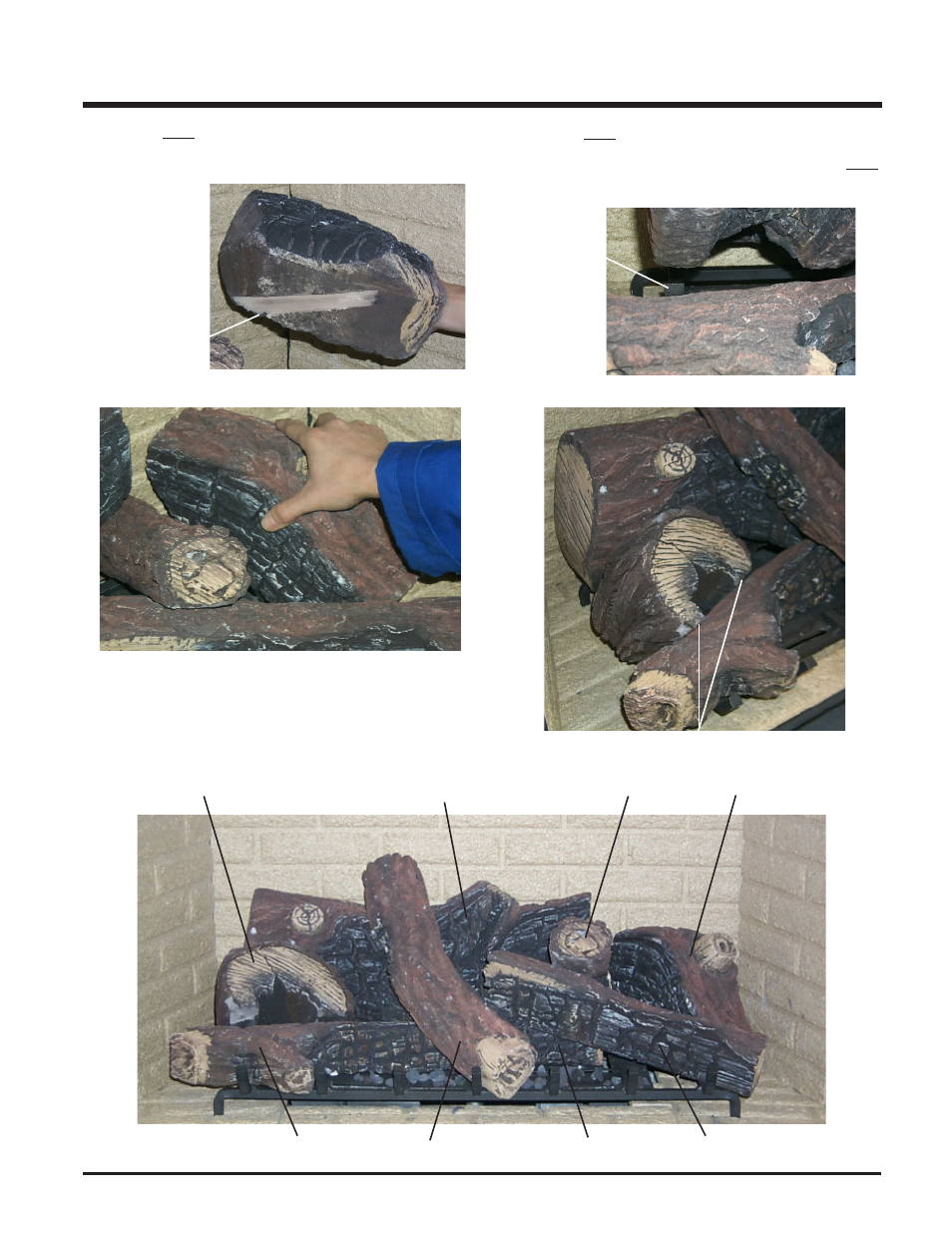

10) Place Log 02-90 onto the right side of the grate. Position the cut-out on
the underside of the log onto the grate bar.
Cut-out
on the underside of
the log.
Position the cut-out onto the
grate bar.
11) Place Log 02-87 on the middle left side of the burner. Position the
bottom rear of the log against the rear tab on the left side of the
grate. Rest the front edge of the log in the notches on Log 02-85.
02-90
02-90
02-89
02-84
02-87
02-88
02-83
02-85
Tab
Notches
02-88
02-89 02-90 02-87
02-85
02-83 02-86 02-84
02-85
02-87
