Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 26
INSTALLATION

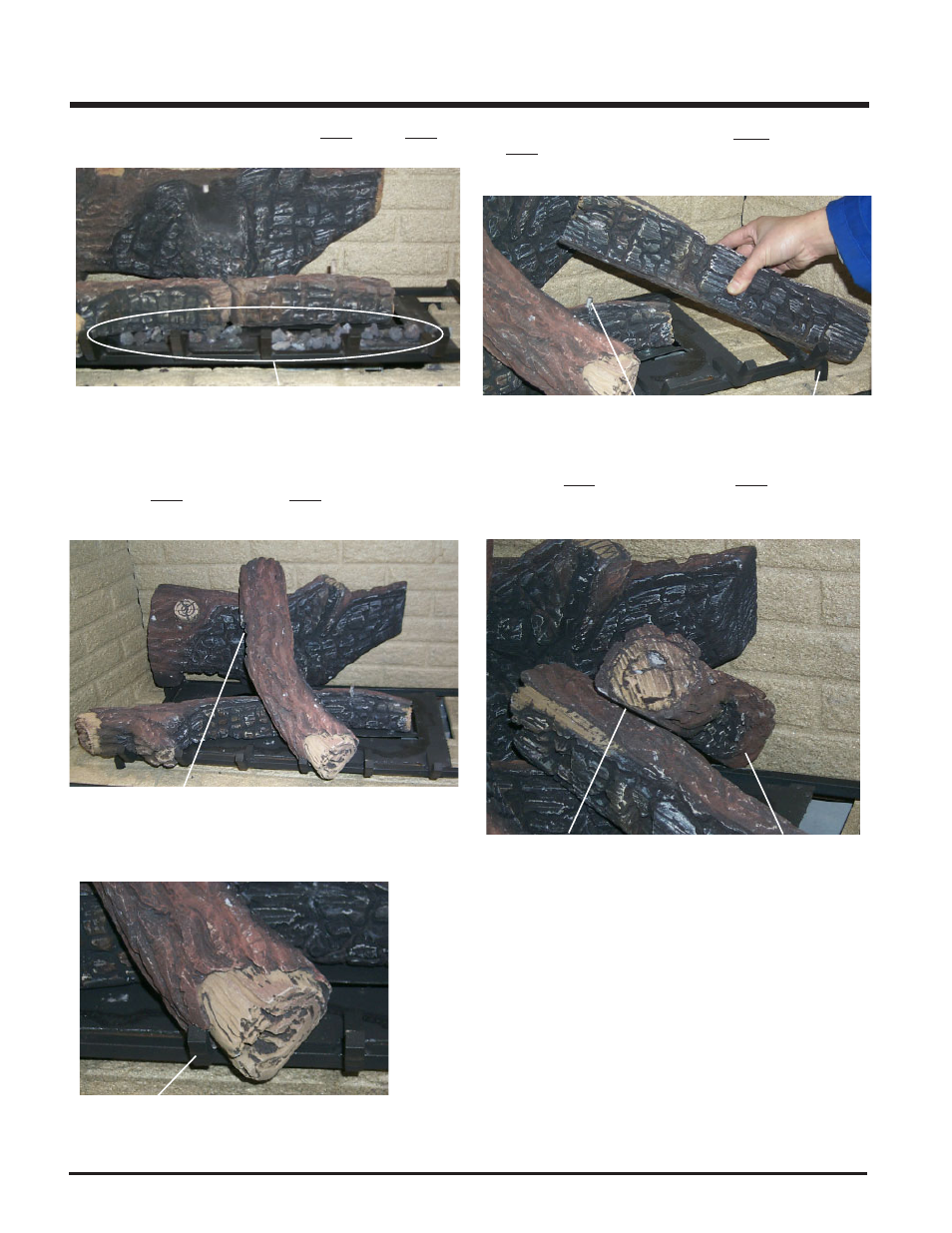

7) Place Log 02-83 onto the pin in Log 02-88 and position the notch on
the bottom of the log into the 4th grate post.
6) Embers should be placed in front of Log 02-85 and Log 02-86.
02-88
02-85
02-86
02-83
02-83
02-85
02-86
Embers
Rest log onto the pin
in Log 02-88.
4th Grate Post
8) Line up the hole on the underside of Log 02-84 with the pin on Log
02-86 and position the notch on the bottom of the log into the last grate
post.
02-84
02-83
02-86
02-88
Pin in Log Last Grate Post
02-84
02-89
02-88
02-85
02-86
Notch
CAUTION: DO NOT cover burner ports with embers.
Position the notch on the bottom of
the log into the 4th grate post.
9) Place Log 02-89 against the notch in Log 02-84. Rest the notch at
the end of the log against the grate.
Rest notch at the end of
the log against the grate.
