(3) LED Display When PC4701 Starts up Normally
After the emulator starts up, check the status of the LEDs on the front panel to see whether emulation
pod operation is enabled or not. Figure 4.1 shows front panel LED lighting status when the emulator
is turned ON.

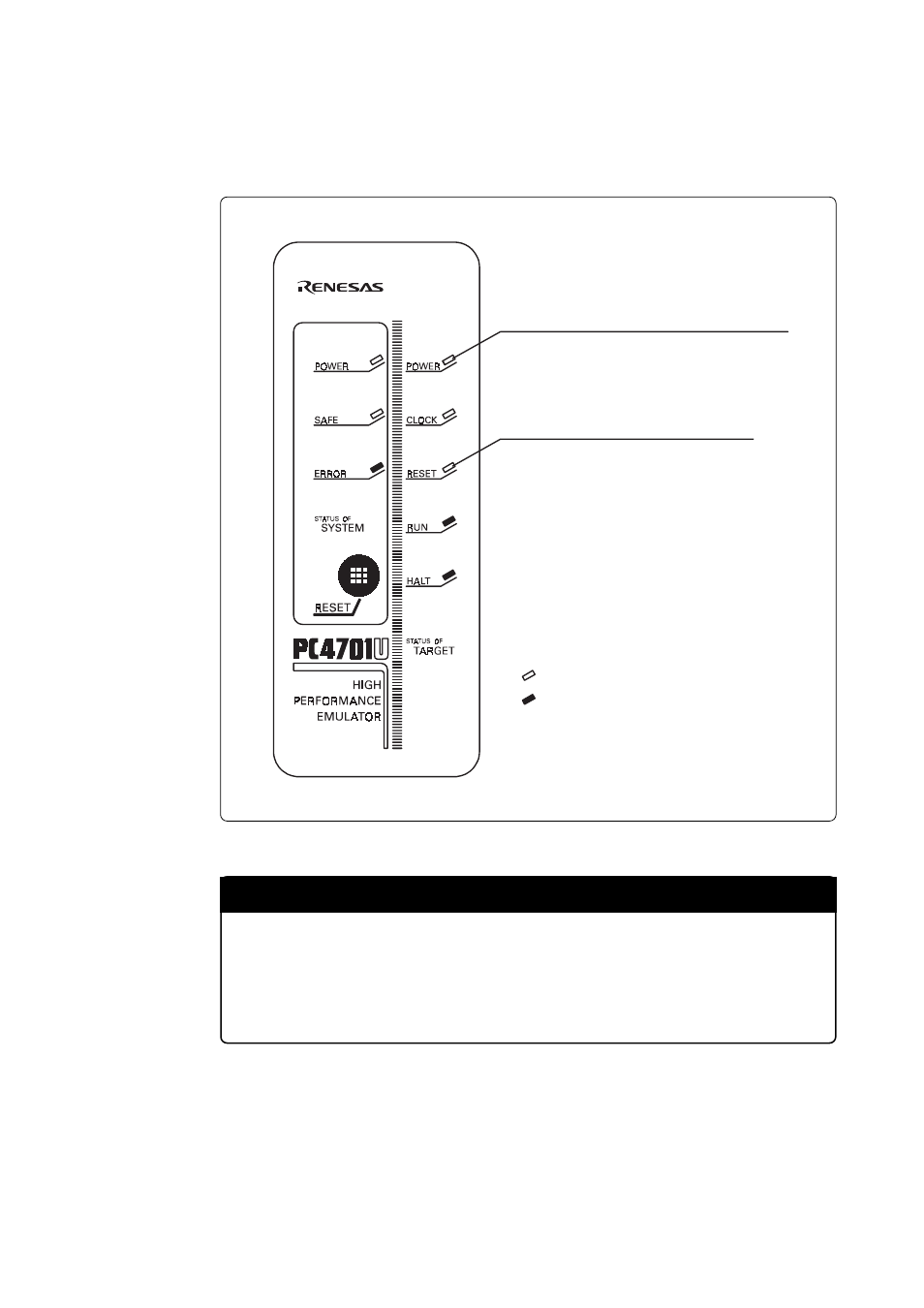

Figure 4.1 LED display when the power turned on
IMPORTANT
Note on Memory Expansion Mode and Microprocessor Mode:
• To use memory expansion or microprocessor mode, be sure to set the RDY and
HOLD pins so that they are not active at startup. Otherwise the emulator system will
not start up correctly.
• If this does not light, check the voltage of the target system.
• Check that power is supplied to all the terminals.
• This does not light when the target system is not connected.
• If this lights, check the reset pin of the target system.
: ON
: OFF
