Printer Overview 1-5
OG L 0 1

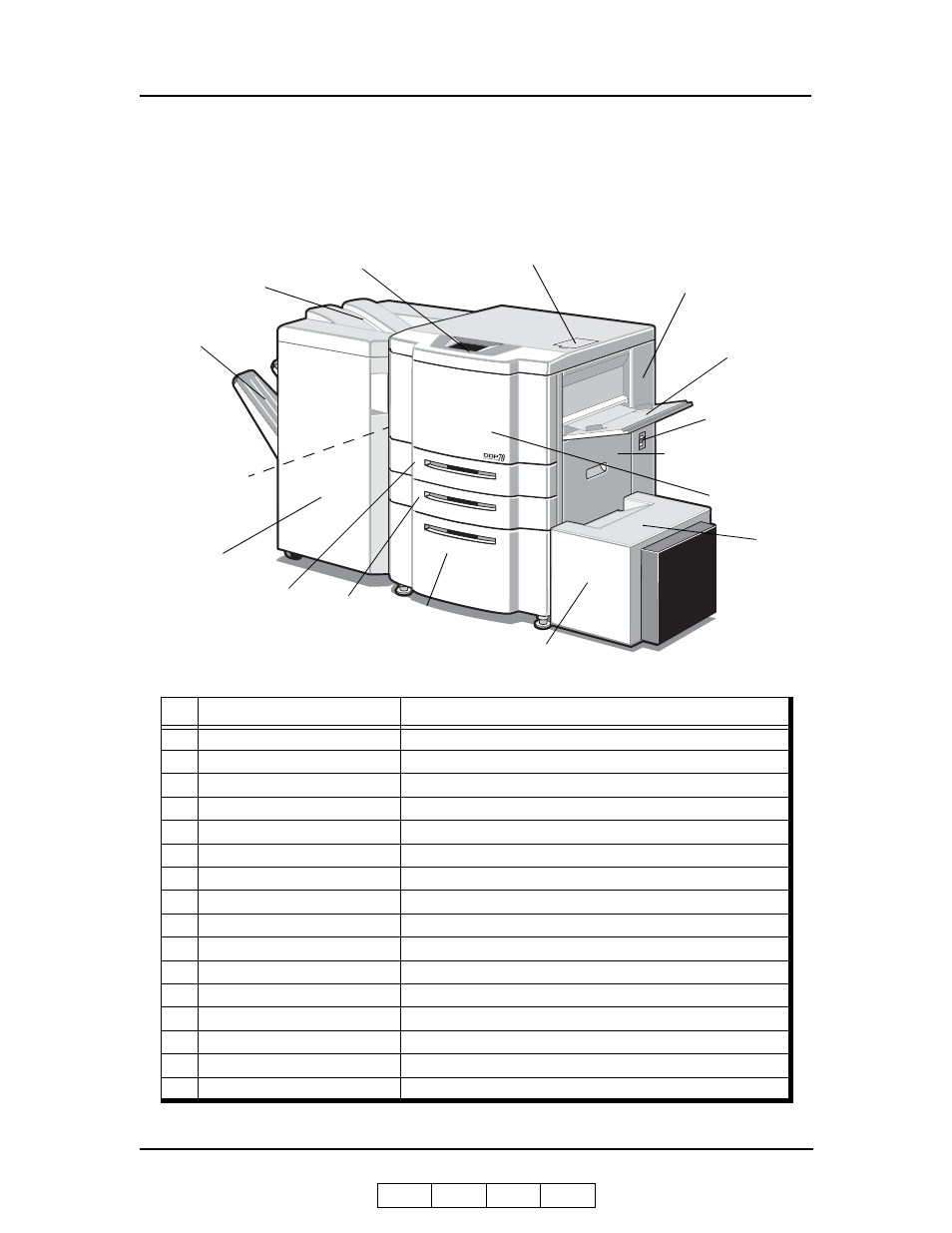

External View of the Printer (70 ppm)
The following illustration shows the printer with an Standard Finisher and High
Capacity Feeder installed. Refer to your option-specific User’s Guide for details on
other devices.
Key Component Description
1 Power Switch Press to turn the printer on and off.
2 Front Cover Open to replace units, clear paper jams, or clean the printer.
3 Vertical Path Cover Open to clear paper jams.
4 Multi-bypass Tray (MBT) Holds up to 150 sheets of paper.
5 Toner Supply Cover Open to replenish the toner supply.
6 Operator Control Panel (OCP) Displays printer status and menu information.
7 Tray 1 Holds up to 2000 sheets of paper.
8 Tray 2 Holds up to 500 sheets of paper.
9 Tray 3 Holds up to 500 sheets of paper.
10 Switch Back Cover Open to clear paper jams.
11 Elevator Tray Output tray of the Standard Finisher.
12 High Capacity Feeder (HCF) Option. Holds up to 3000 sheets of paper.
13 HCF Top Cover Open to clear paper jams in the High Capacity Feeder.
14 Toner Collector Bottle Cover Open to replace the toner collector bottle.
15 Standard Finisher Option. For stacking, job offset, and stapling.
16 Upper Tray Output tray of the Standard Finisher.
1. Power Switch
10. Switch Back Cover
2. Front Cover
3. Vertical Path Cover
4. Multi-bypass Tray
5. Toner Supply Cover 6. Operator Control
7. Tray 1
8. Tray 2
11. Elevator Tray
9. Tray 3
14. Toner Collector
13. HCF Top
12. High Capacity Feeder
15.Standard Finisher
Bottle Cover
Panel
(Not Shown)
16. Upper Tray
Cover
