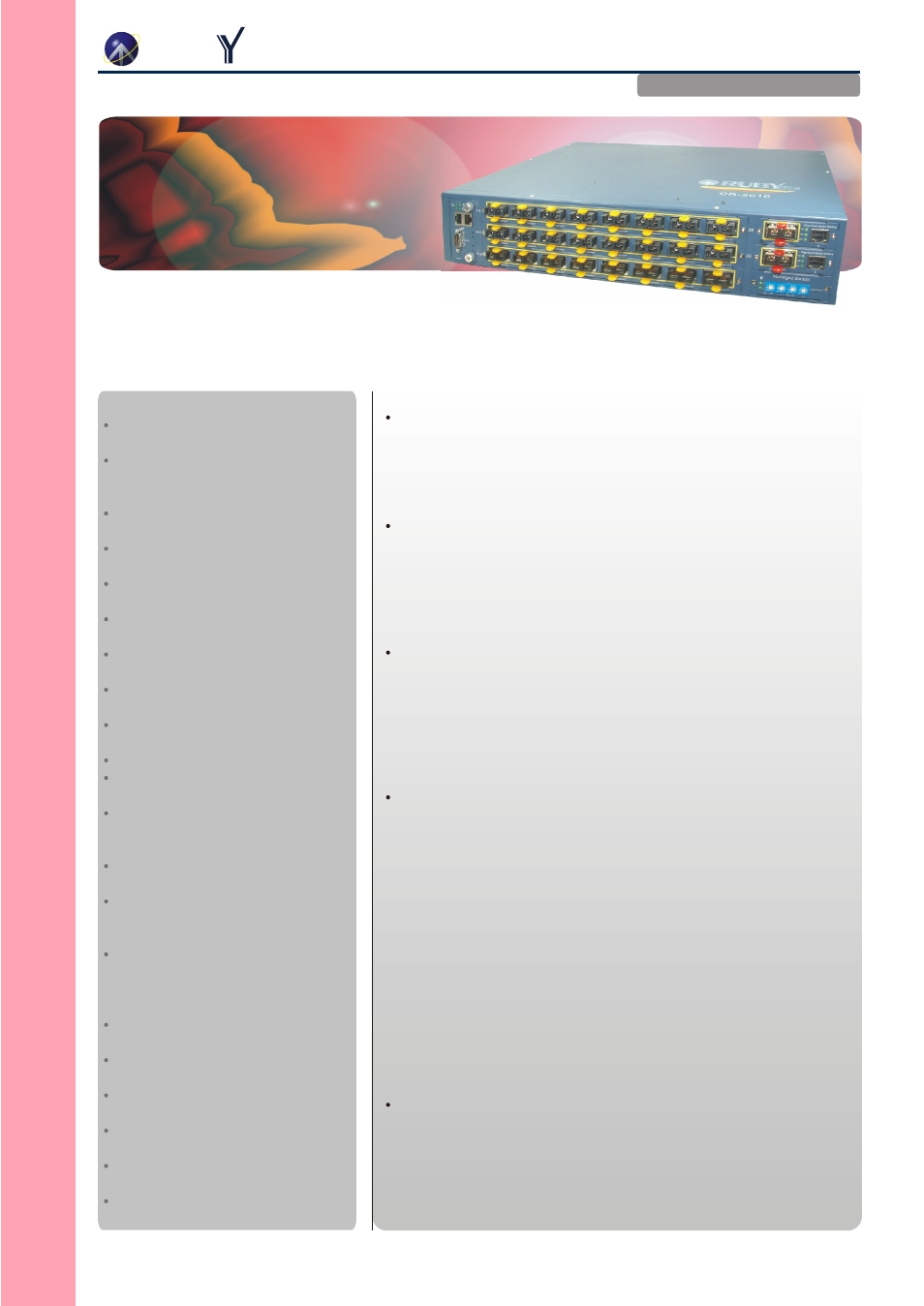

CR-2010

24-Port 100M SEP-SC Fiber + 2 Gigabit SEP-SC Fiber/TP(Fixed) Dual Media Port Intelligent
Ethernet Switch

Key Features

Key Features

Supports in-band/out-of-band

management

Supports backpressure for half

duplex and 802.3x flow control for full
duplex

Supports 2 FE ports on CPU board for

management network

Supports head of line (HOL) blocking

prevention

Max switching capacity: 8.8G non-

blocking at wire speed

Supports chassis ID for location

alignment

Supports management through any

Ethernet port and RS-232

Supports short message and email

for trap and alarm

Supports per port external loopback

capability

Supports port mirroring function
Support MIB II, Bridge MIB, Ethernet

MIB, Enterprise MIB, RMON I MIB

Supports port-based/802.1v and

802.1q tagged VLAN, up to 256
active VLANs

Supports IP multicast with IGMP

snooping

Supports Ethernet multicasting and

broadcasting and flooding storm
control

Supports max of 50 per port allowed

MAC address entries and 50 global
denied MAC address entries for port
security

Supports max. 32 entries of illegal

table

Supports Auto-ping function with

adjustable interval

Supports 802.1p CoS with 2 level

priority

Supports detection of temp. x 2,

voltage, fans speed x 3

Supports 3 fans: two embedded in

power and one driven by two power

Supports dual redundant pluggable

power with loading balance

CR-2010

Technical Specifications

Technical Specifications

Performance:

Bandwidth: 8.8Gbps Switching Capacity
VLAN: 256 active
IP multicast table entries: 2k
Supports Packet length up to max of 1536 bytes long
Supports 10k MAC address table

Standards Compliance:

IEEE 802.3u /z /x /ab /ad
IEEE 802.1d /p /q /v /x /advanced 802.1x
100Base-FX Fast Ethernet Fiber Specification
1000Base-SX/1000Base-LX Gigabit Ethernet Fiber specification
SNMP
RMON

Protocol Support:

802.1d/1w/1s STP
802.3ad LACP
802.1q with GVRP/GMRP/GARP
802.1p priority queue
IGMP snooping
ARP, RARP, RIP, DHCP server/client/relay
Telnet, BootP, TFTP, FTP, HTTPD, NTP

Network Management:

RFC 1213 MIB (MIB-II)
Interface MIB

Address Translation MIB

IP MIB
ICMP MIB
TCP MIB
UDP MIB
SNMP MIB
RFC 1757 RMON MIB
Statistics Group 1
History Group 2
Alarm Group 3
Event Group 9
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
Enterprise MIB

Maximum Switching Ports:

The maximum service port capability:
- 24 Fast Ethernet ports
- 2 Gigabit Ethernet ports
