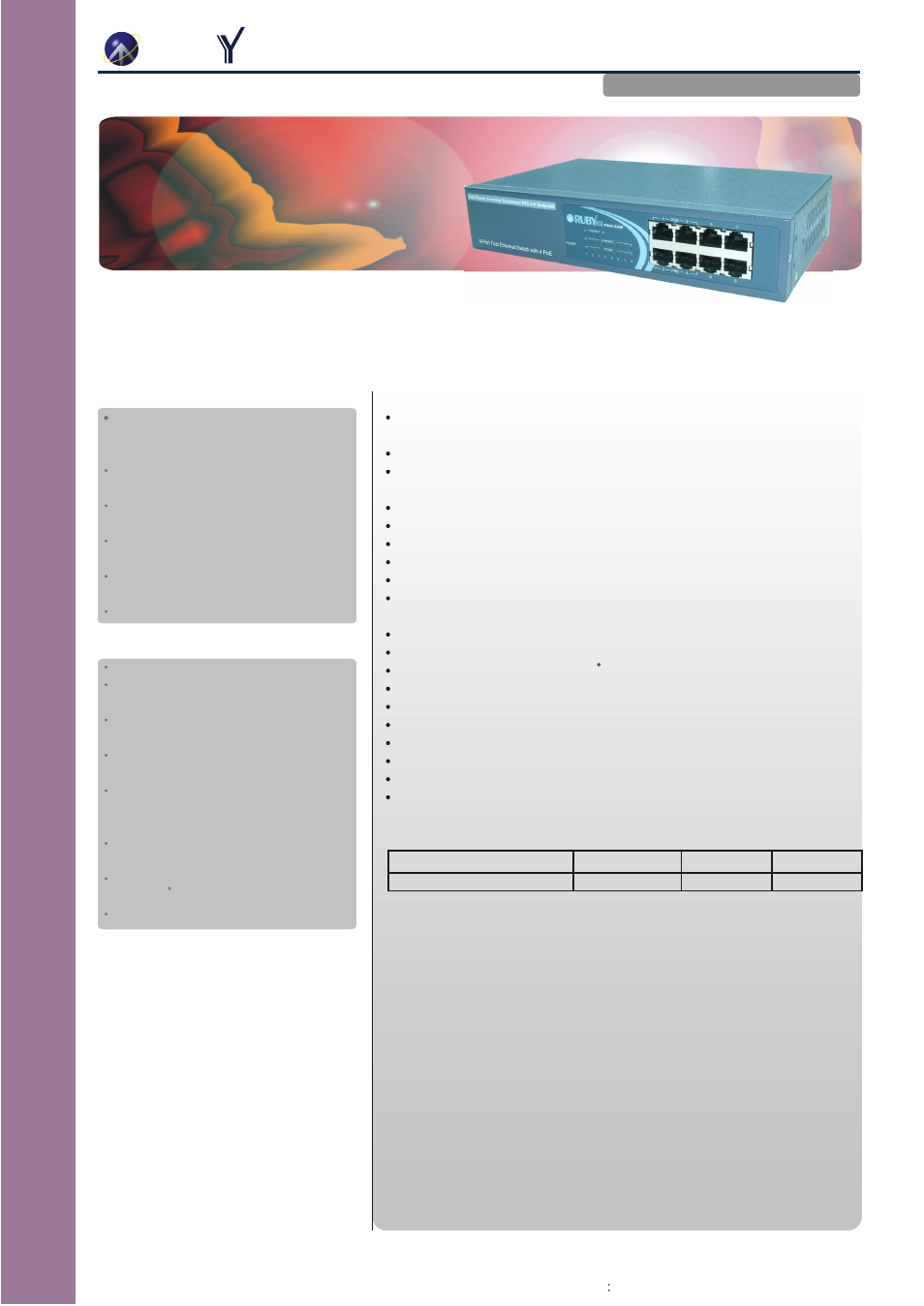

Ruby Tech PSES-5308 User Manual
Pses-5308
PSES-5308
8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 Po
E Ports
Key Features
Key Features
Conforms to IEEE 802.3 10BASE-T,
IEEE802.3u 100BASE-TX and IEEE
802.3x flow control standards
Supports 10/100Mbps auto-detect
half/full duplex
Supports TP interface auto MDI/
MDI-X function for auto TX/RX swap
Supports 802.3x flow control pause
packet for full duplex
LEDs to indicate: Link/Act, Speed,
Power Status and PoE activity
RoHS Compliance
PoE Key Features
PoE Key Features
Supports IEEE 802.3af compliant
Supports Power over Ethernet (PSE)
on each PoE-TP port (End-Point)
Full power(15.4w) support for per
PoE-TP port
Auto detect powered device and
consumption levels
Smart feature for PD on/off, PD
detection, power level, PD status
and power feeding priority(X)
Automatic Fault Detection(Over/
Under Voltage & Current)
Thermal shutdown protection
(Tj > 150 C)
LED indicators for POE activity
Overview
PoE Save Your Power Infrastructure
Cost
PoE allows power to be supplied to end
devices, such as Wireless Access
Points or VoIP Phones, directly through
the existing LAN cables. By supplying
the power end-span, you can centralize
power distribution and backup without
the need to increase infrastructure
PSES-5308
Technical Specifications
Technical Specifications
Description:
8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports
Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Media: 10BASE-T: UTP
Cat.
3,
4,
5
or
up
100BASE-TX: UTP Cat. 5 or up
No. of Port: 8 x10/100 Mbps RJ-45 ports with 4 PoE ports
Auto MDI/MDI-X: Yes
Transmission Mode: 10/100Mbps, full/half-duplex (Auto-sensing)
Transfer Rate: 10Mbps:
14880pps
(64
Bytes
Package)
100Mbps: 148800pps
(64
Bytes
Package)
Flow
Control: IEEE
802.3x
flow
control
for
full-duplex
Back pressure in half-duplex operation mode
Switching Method: Store & forward
LEDs: Power, Link/Act,Speed,
PoE
activity
Ambient Temperature: 0
to
40
C
Humidity: 5%
to
90%
Voltage: AC 90~264V
Frequency: 47~63Hz
Power Consumption: 65W,-48VD,1.35A
Physical Dimension: 44(H)
x
220(W)
x
130.5(D)
mm
Weight: 1kg
Safety: Comply
with
FCC
Part
15
Class
A
&
CE
Mark
Approval
Packing Information
Packing Information
Ordering Information
Ordering Information
PSES-5308:
8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports
RUB
TECH
Unmanaged PoE Switch
F
a
s
t
E
t
h
e
r
n
e
t
S
w
i
t
c
h
Fast EthernetSwitch
Carton Dimensions (mm) pcs/Carton N.W (KG) G.W (KG)
495x480x335 10 16 17
Ruby Tech Corp.
2F, No.7, Lane 50, Nan Kang Road, Sec.3, Taipei, Taiwan http://www.rubytech.com.tw
TEL:886-2-2785-3961 FAX:886-2-2786-3012 E-mail [email protected]
