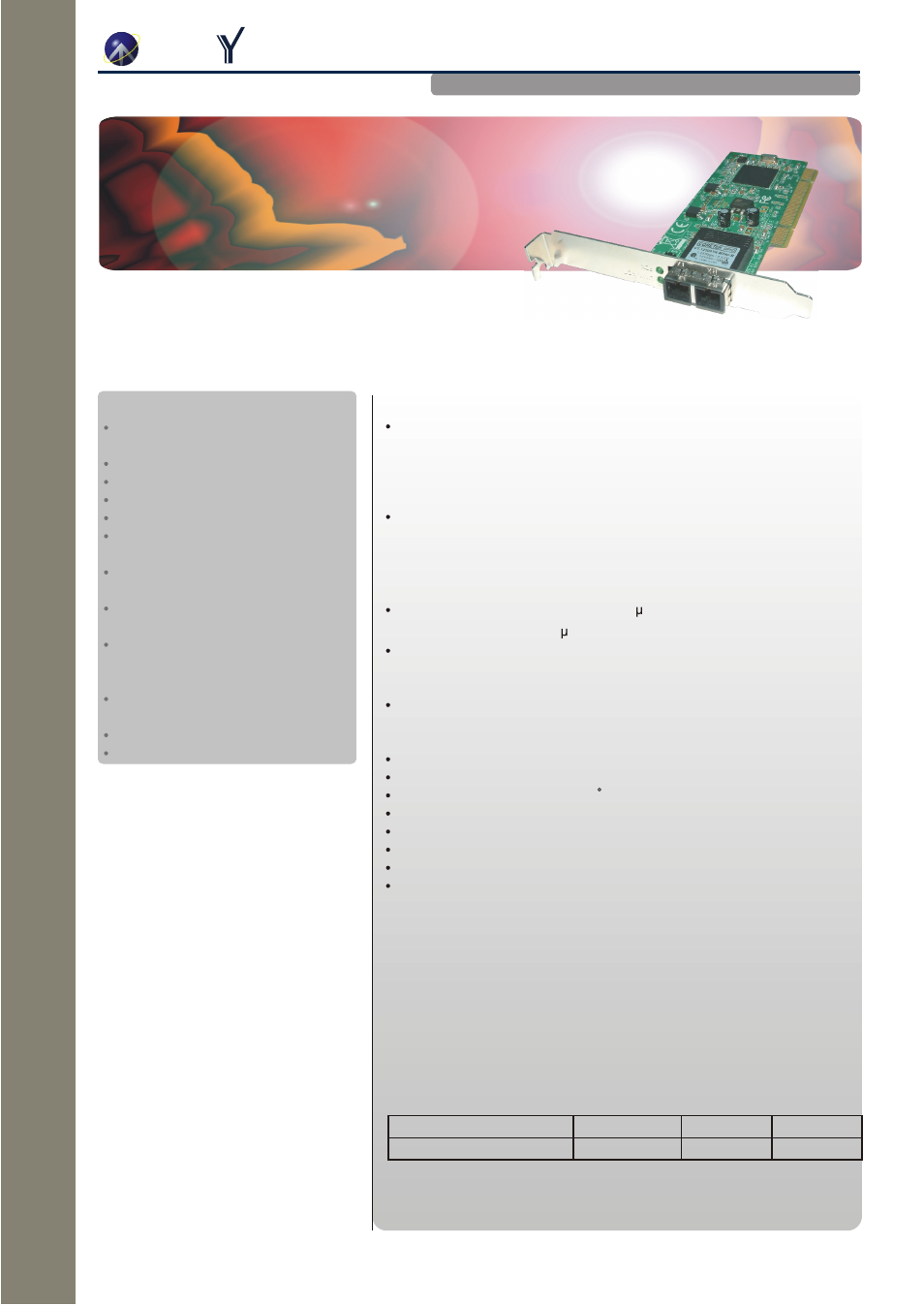

Overview
GE-1150 is a Fiber Gigabit Ethernet to 32
bits PCI bus adapter that fully complies
with all IEEE 802.3z and 1000Base-SX/LX
standards. It provides up to 2000Mbps full-
duplex bandwidth capacity to support high-
end servers. In addition, with advanced
functions like VLAN filtering packet
processing, the adapter provides added
performance, flexible configuration and
secure networking for users in a standards-
based environment. Two LED indicators
(LINK/ACT and FDX) on the bracket will
help to oversee the board link, activities
and full-duplex status
GE-1150:
PCI 32-Bit Gigabit 1000Base-X Fiber NIC
Key Features
High bandwidth 1000Mbps Network
Speed
Supports Full-Duplex Mode
Supports IEEE 802.3x Full-Duplex Flow
Supports 32 bits PCI bus
Compliant with PCI 2.2 Interface
Supports Jumbo Frame up to 9014
Bytes
Supports High Level VLAN Filtering
Function
Supports 802.3ad Link Aggregation
(LACP)
Supports on-board verification of IP
headers and TCP / UDP checksums for
received data
Supports on-board screening of VLAN
tagged Ethernet frames
GE-1150
RUB
TECH
Gigabit Ethernet Fiber NIC with PCI 32bits
Fiber NIC
F
i
b
e
r
N
I
C
Technical Specifications Technical Specifications
Standards: IEEE 802.3z Gigabit Ethernet 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3ad Link Aggregation
IEEE 802.1Q VLANs
IEEE 802.1p Quality of Service
Connector: 850nm SC multi-mode (Default)
*850nm LC multi-mode
*1310nm SC, LC single-mode
*1550nm SC, LC single-mode
*: Option is available upon request
Fiber Optic Cable: 62.5/125, 50/125 m multi-mode
9/125 m single-mode
Data Transfer Mode/Speed:
---Full duplex with NWay flow control
---1000Mbps speed
Diagnostics LED on Bracket:
---LINK/ACT
---FDX
Bus Slot: 32 bits PCI 2.2 Compliant
Power Requirement: Max. 10W, +5VDC@2A
Ambient Temperature: 0 to 50 C
Humidity:
5% to 90%
PCB Dimensions: 128.5(L)x57.5(H)mm
Weight: 0.07Kg
Emission: Complies with EMI Standard, FCC Class A & CE Mark
Software Support:
Windows 2000
Windows 2003
Windows XP
Windows NT4.0
Novell Netware 4.x, 5.x, 6.x
Linux
UnixWare 7.0
PXE & RPL Boot ROM
SCO Open Server
Solaris
Packing Information Packing Information
Carton Dimensions (mm) pcs/Carton N.W (KG) G.W (KG)
530x512x345 60 10.8 11.8
