5.5.1 Repeater
If the RS-485 communications wire length is above 4000', a repeater must be used to extend the signal. The
repeater can also be used to create parallel branches of ROBERTS GORDON
® ULTRAVAC™ controller
communications bus wiring. Each repeater is sold in a 12" x 12" NEMA 1 enclosure with a 120/24 Vac
transformer.
There is no limit on the quantities of repeaters used in a system.

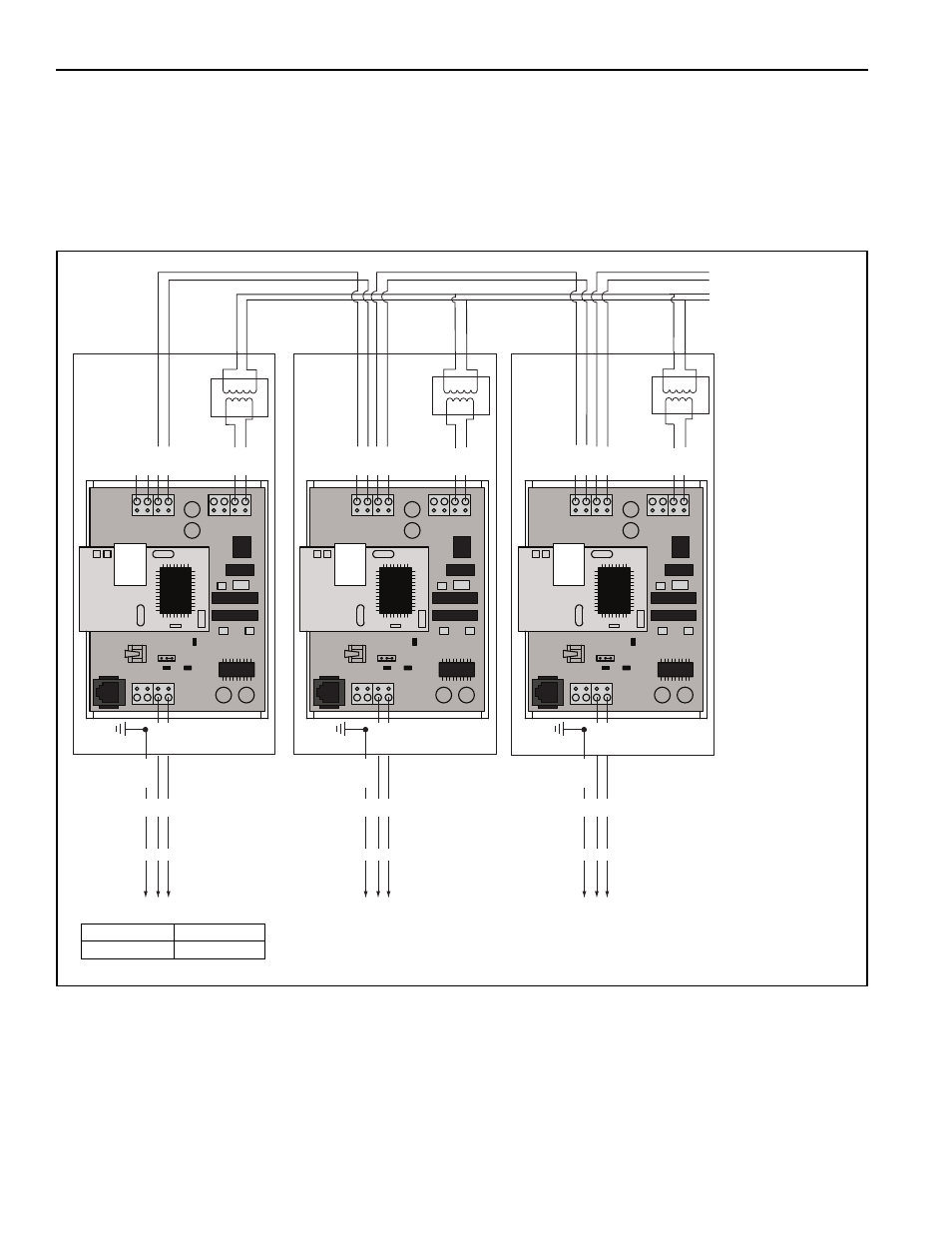

FIGURE 19: Repeater Wiring
RS232 RS485
RS485 OUT REF
- + - +
PROGRAM
RUN
RS485 OUT
- + - +
RS485 OUT RS485 OUT
- + - +
RS485 OUT
1/4A 1/4A
1/4A
1/4A
Re
d Blac
k
Re
d
Blac
k
Re
d
Blac
k
Dr
ain
Re
d Blac
k
RS232 RS485
RS485 OUT REF
- + - +
PROGRAM
RUN
RS485 OUT
- + - +
RS485 OUT RS485 OUT
- + - +
RS485 OUT
1/4A 1/4A
1/4A
1/4A
Re
d Blac
k
Re
d Blac
k
Re
d Blac
k
RS232 RS485
RS485 OUT REF
- + - +
PROGRAM
RUN
RS485 OUT
- + - +
RS485 OUT RS485 OUT
- + - +
RS485 OUT
1/4A 1/4A
1/4A
1/4A
Re
d Blac
k
Re
d Blac
k
Re
d Blac
k
120 Vac
Central ULTRAVAC™
Controller
Satellite 1
Satellite 2
Re
d
Blac
k
Dr
ain
Satellite 3
Satellite 4
Re
d
Blac
k
Dr
ain
Satellite 5
Satellite 6
120 Vac
24Vac
120 Vac
24Vac
120 Vac
24Vac
Description Part Number
Repeater 10080445
