Some signals connected to the target system are emulated on the M34570T-MCU board. For
details, see "Chapter 6. Connection Circuit Diagram".
• Pins connected directly to the target system (5 types, 15 lines)
(1) P3
0
to P3
3
(2) P4
0
to P4
3
(3) CARR
(4) D
6
to D
9
(5) V
SS
(6) VDCE
• Pins connected to the target system via emulation circuits etc. (6 types, 18 lines)
(1) P0
0
to P0
3
(2) P1
0
to P1
3
(3) P2
0
to P2
1
(4) D
0
to D
5
(5) RESET*
(6) V
DD
• Pins not connected to the target system (3 types, 3 lines)
(1) X
IN
(2) X
OUT
(3) CNV
SS
4.6 LED

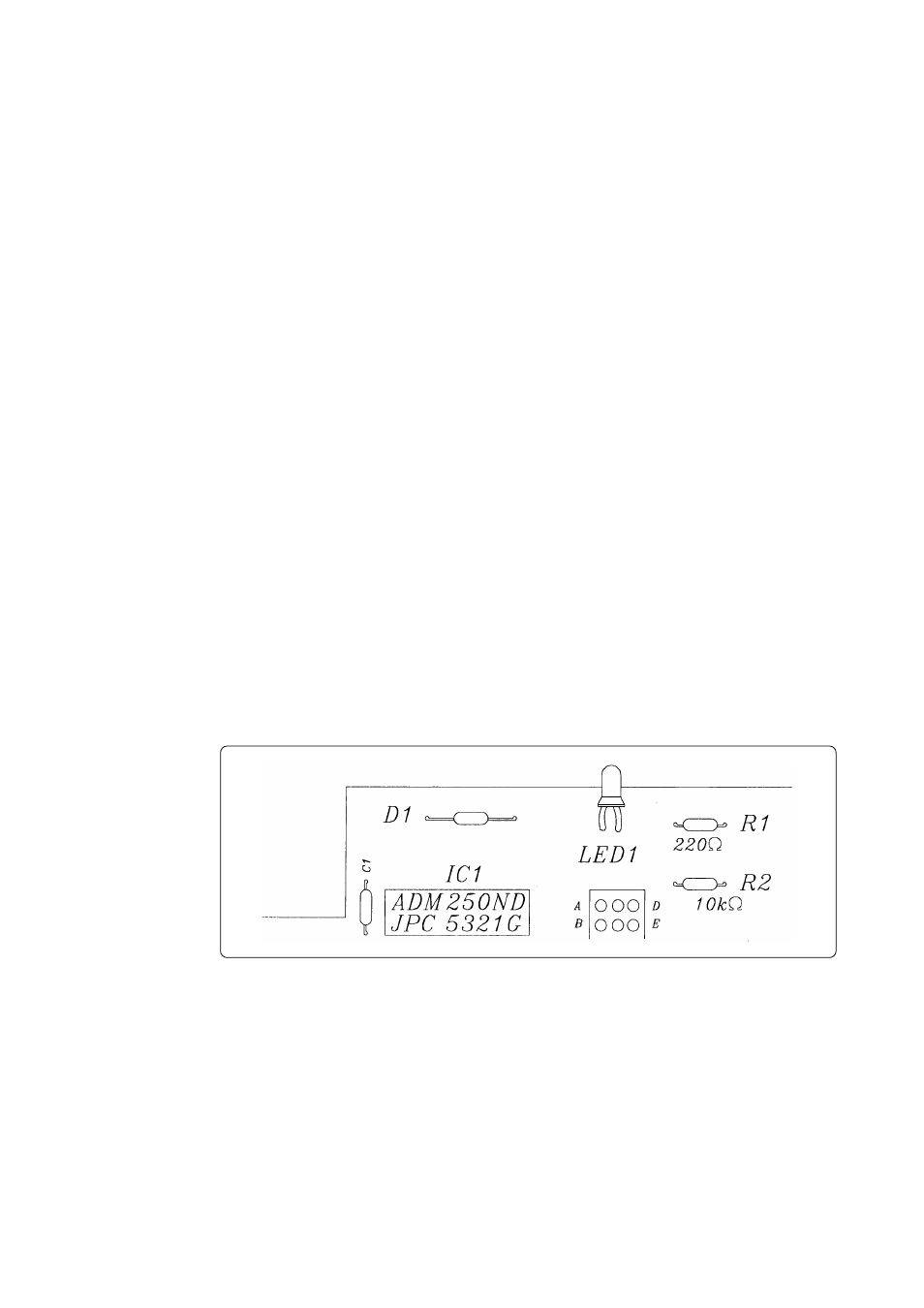

Figure 4.9 shows the LED layout of M34570T-MCU. The LED lights in green when the power is
supplied to the MCU board.
Figure 4.9 Layout of LED
