Renesas MCU Board for PC4504 Emulator System M34570T-MCU User Manual
Page 19
( 17 / 34 )
(1) Connector J3
Table 4.4 lists the pin assignments of the 80-wire half-pitch connector (J3) for connecting the
PCA4029. And Figure 4.4 shows the connector J3 pin layout.

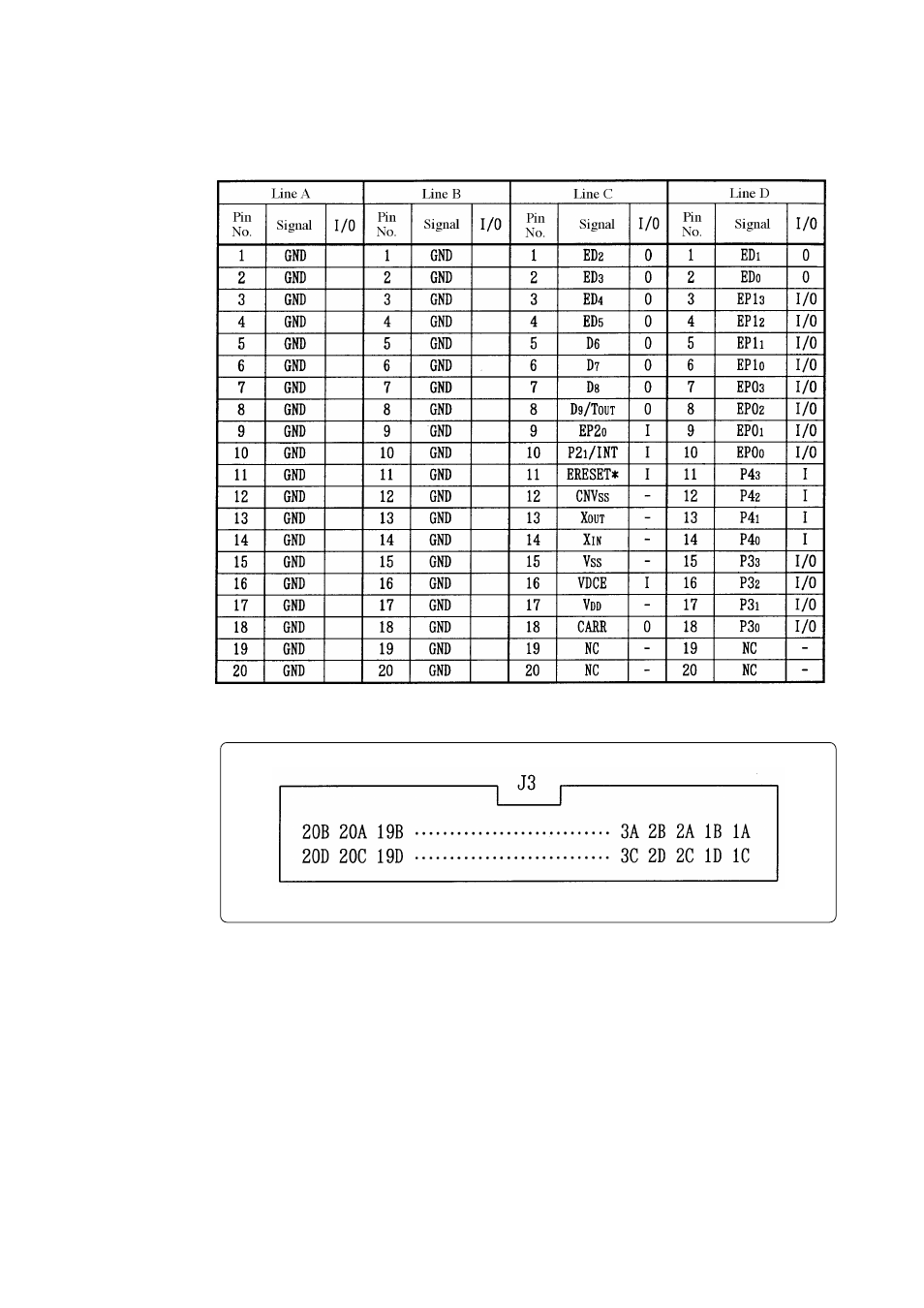

Table 4.4 Pin assignments of the connector J3
Figure 4.4 Connector J3 pin layout
Note: "I" in the direction column denotes "Input"; "O" denotes "Output"; "I/O" denotes "Input/
output"; "-" denotes "Not connected".
