4.5 Connection to the Target System
When connecting the M34570T-MCU board to the target system:
Use the 40-wire normal-pitch cable (included) to connect the 40-pin dual-in-line pins on the target
system. Following products are required for connection to the target system.
• 80-wire half-pitch cable (40cm)
• PCA4029 pitch converter board
• 40-wire normal-pitch cable (10cm)
Figure 4.7 depicts the M34570T-MCU board connected to the target system using the 40-wire
normal-pitch cable. Table 4.7 lists the connector signal assignments of the 40-wire normal-pitch
cable. Figure 4.8 shows the pin layout of the 40-wire normal-pitch cable.

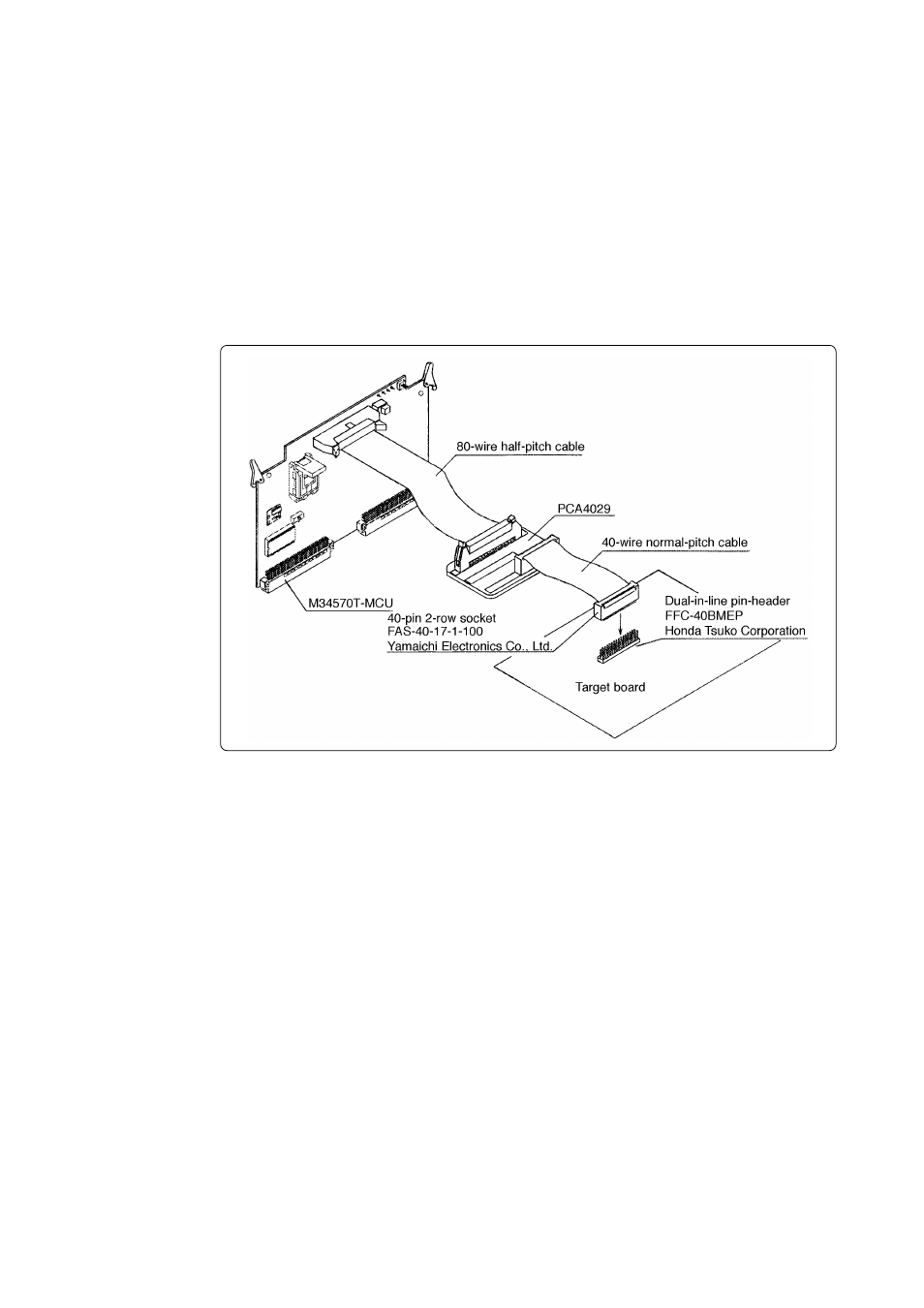

Figure 4.7 Connection to the target system using dual-in-line pins
