Adjusting the geometry, Focus, Pre l iminar y – Runco VX VIDEO XTREME VX-33D User Manual
Page 62

46
Runco VX-33d Installation/Operation Manual
PRE
L
IMINAR
Y
Adjusting the Geometry:
1.
Input an anamorphic cross-hatch test pattern to the projector.
2.
Unscrew the Anamorphic Lens just enough to allow it to rotate freely.
3.

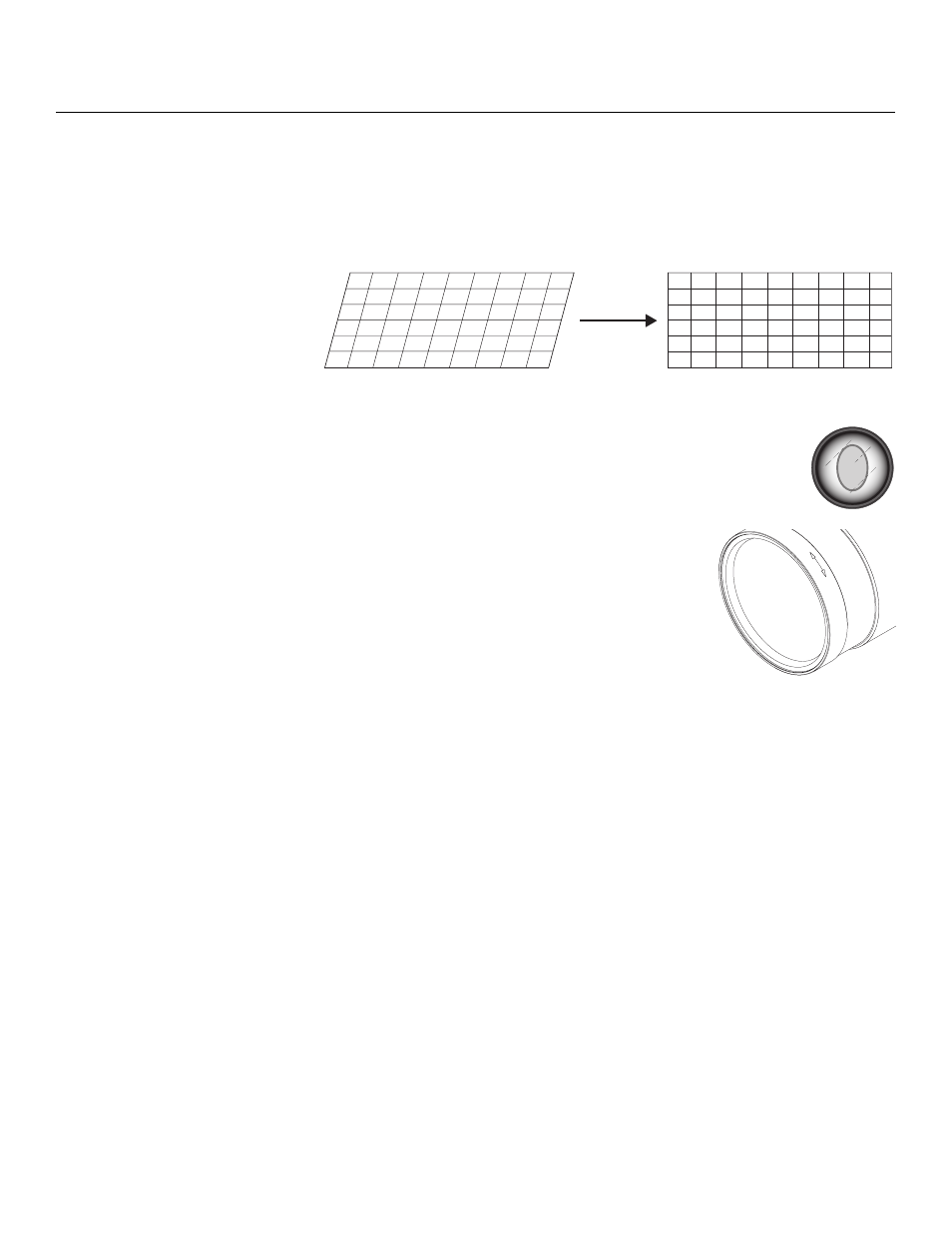

Grasp the lens by the center ring and rotate the lens until the image is properly
anamorphic:
4. When the image geometry appears correct, tighten the Anamorphic
Lens Set Screw (item #10) to secure the lens in place. (When
viewed from the front, the rear opening on the anamorphic lens
should appear as a tall, narrow oval.)
Focus: Finally, rotate the Focus Ring on the anamorphic
lens to fine-tune the optical focus.
Wrong Position
Correct Position
F
O
C
U
S
